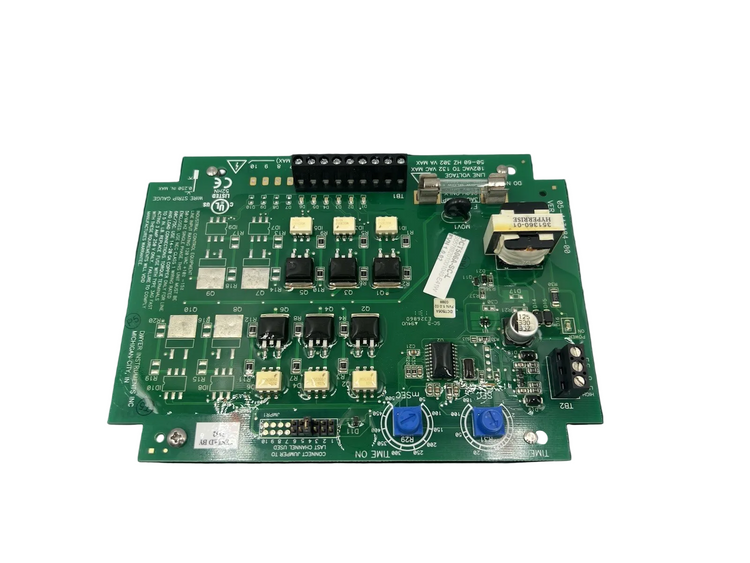

Dwyer DCT506A-SC-L Six-Channel Pulse-Jet Timer Controller
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DCT506A-SC-L
Description
Dwyer DCT506A-SC-L is a six-channel timer controller for sequencing pulse-jet cleaning in dust collectors and pneumatic conveying systems. The SC option provides stop-on-clean operation, while the L option adds a large base plate for mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Dwyer |
| Category | Process Control |
| Part Number | DCT506A-SC-L |
| Subcategory | Timer Controllers |
| Series | DCT500A |
| Controller type | Pulse-jet timer controller |
| Number of channels | 6 |
| Cleaning modes | Continuous, on-demand |
| On-time range | 50–500 ms |
| Off-time range | 1–180 s |
| On-time accuracy | ±10 ms |
| Off-time accuracy | ±5% of setting |
| Solenoid supply | 3 A maximum per channel |
| Supply voltage | 102–132 VAC |
| Supply frequency | 50/60 Hz |
| Power consumption | 2.5 W |
| Weight | 255 g |
Information About DCT506A-SC-L
The DCT506A-SC-L is a configured model in Dwyer’s Series DCT500A timer controller family. It supports continuous or on-demand cleaning, with control inputs for high- and low-limit switches used in on-demand systems. Adjustable on-time ranges from 50 to 500 ms, and off-time ranges from 1 to 180 seconds. Its six outputs can each supply up to 3 A to a compatible solenoid.
Key Features:
-
Six-Channel Timer Control: Provides six independently timed output channels for sequential control of pulse-jet cleaning systems.
-
Stop-on-Clean Function: The SC option adds a stop-on-clean feature for compatible on-demand cleaning applications.
-
Adjustable On-Time: Supports adjustable pulse durations from 50 to 500 milliseconds.
-
Adjustable Off-Time: Provides adjustable intervals from 1 to 180 seconds between output pulses.
-
Solenoid Output Capacity: Supports solenoid loads up to 3 A per channel, subject to system requirements.
-
AC Power Supply: Operates on 102–132 VAC at 50/60 Hz.
-
Electrical Isolation: Isolates control circuitry and inputs from line voltage for improved electrical safety.
-
Retrofit Mounting Bracket: The L suffix specifies a mounting bracket measuring approximately 8.25 × 6.25 inches.
-
Industrial Applications: Suitable for dust collection, pneumatic conveying, and cement batch processing systems.
The DCT506A-SC-L delivers reliable timed pulse control for industrial dust collection and pneumatic cleaning applications.
