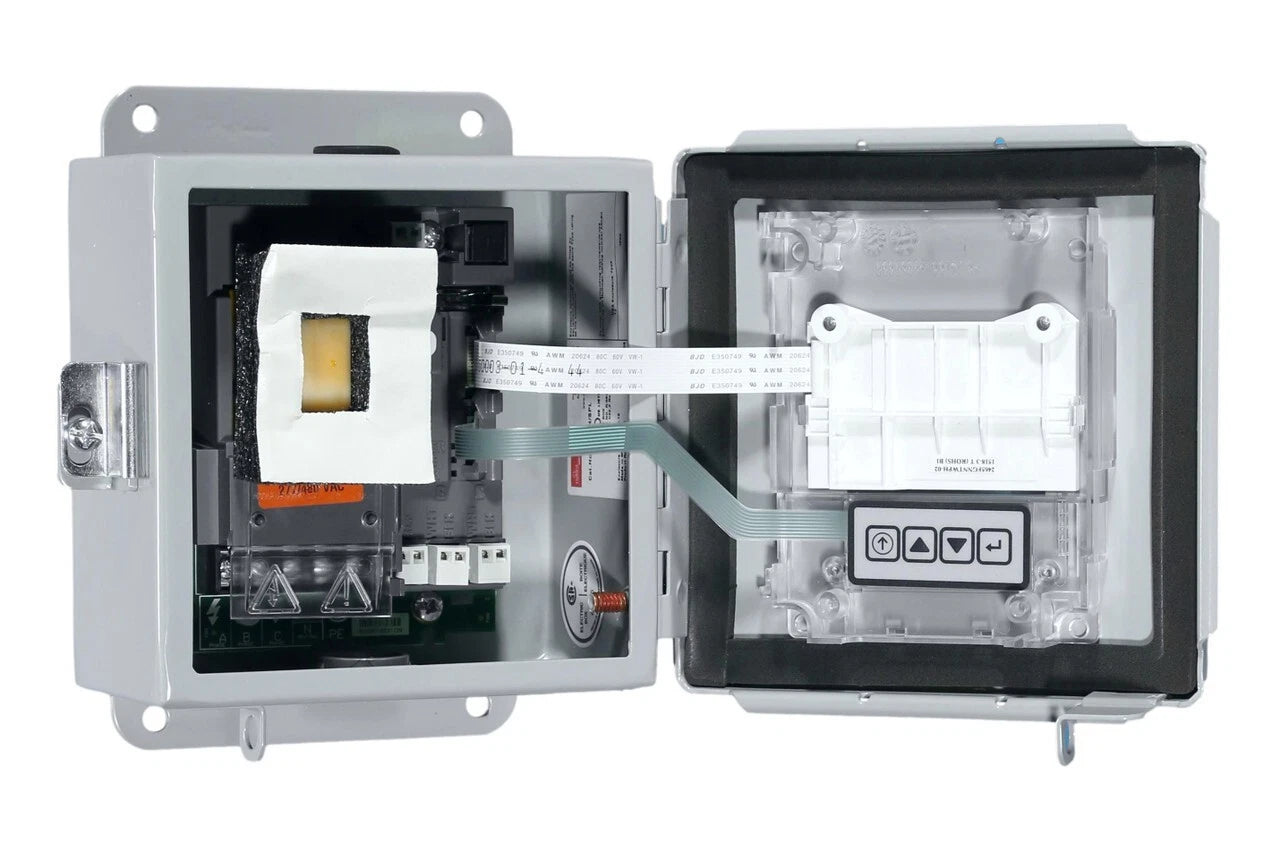

E20-480100-JKIT | E-Mon D-Mon Class 2000 100 A 3-Phase 480 V Standalone kWh Meter Kit
- Regular price
- $1,779.00
- Sale price
- $1,779.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: E20-480100-JKIT
Description
The E-MON E20-480100-JKIT is a Class 2000 standalone kWh submeter kit rated for 277/480 V, 3-phase, 3- or 4-wire service up to 100 A. Designed for energy monitoring in commercial and industrial facilities, it includes three split-core current sensors and a durable JIC steel enclosure for indoor installation. The meter features a dual-line alphanumeric LCD display and provides accurate, revenue-grade energy readings with optional demand display capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | E-Mon |
| Category | Controls & Indicators |
| Part Number | E20-480100-JKIT |
| Subcategory | Power Controller |
| Sub-Brand | D-Mon Class 2000 |
| Type | Standalone kWh Submeter Kit |
| Voltage Rating | 277/480 V AC |
| Phase | 3-phase |
| Number of Wires | 3 or 4 |
| Amperage Rating | 100 A |
| Frequency | 60 Hz |
| Power Source | Self-powered (via line voltage) |
| Display | 2-line alphanumeric LCD (real-time kWh, demand) |
| Demand Interval | 15 min standard (30/60 min configurable) |
| Sensor Type | Split-core 0–2 V current sensors (3 included) |
| Accuracy | Revenue-grade, ANSI C12.1 compliant |
| Communication | Pulse output |
| Material | Industrial-grade JIC steel enclosure |
| Enclosure Rating | Indoor standard; optional NEMA 4X available |
| Mounting Type | Flange-mount, wall-mount |
| Diagnostics | On-board verification system |
| Temperature Range | 0 °C to +50 °C (32 °F to 122 °F) |
| Dimensions | 6-3/4 in H × 5-3/16 in W × 3-1/4 in D |
| Weight | 7.00 lb (3.18 kg) |
| Standards | UL Listed, cUL Certified, CTEP Approved |
Information About E20-480100-JKIT
The E20-480100-JKIT belongs to the E-Mon D-Mon Class 2000 series of standalone submeters, widely used for tenant sub-billing, energy cost allocation, and load profiling. This model is self-contained and does not require a separate communication network for operation. It is equipped with patented 0-2 V split-core current sensors for safe, accurate measurement and easy installation without service interruption. The steel housing includes a padlockable hasp for security and mounting flanges for wall or panel mounting. Optional NEMA 4X polycarbonate enclosures allow outdoor use, while onboard diagnostics and pulse outputs make the unit compatible with energy management systems.
Key Features:
- Class 2000 Revenue-Grade Accuracy: Meets ANSI C12.1 standards for reliable sub-billing and energy tracking.
- Wide Voltage Range: Rated for 277/480 V, 3-phase, 3- or 4-wire electrical systems up to 100 A.
- Split-Core Current Sensors: Three 0–2 V output CTs allow non-invasive installation and ensure operator safety.
- Dual-Line LCD Display: Two-line alphanumeric screen shows real-time kWh, demand, and peak data with timestamps.
- On-Board Diagnostics: Integrated verification functions confirm proper installation and sensor operation.
- Demand Display Option: Provides kW demand readings and records the peak date and time for load management.
- Durable Steel Enclosure: Industrial-grade JIC steel housing with padlocking hasp and flanges for indoor use.
- Pulse Output Capability: Compatible with building management and data acquisition systems for remote monitoring.
- Flexible Installation: Supports both 3- and 4-wire systems, suitable for multi-tenant and commercial electrical panels.
- Certified and Approved: UL Listed, cUL Certified, and California CTEP approved for use with solid-core sensors.
The E20-480100-JKIT delivers reliable, accurate metering for cost allocation, energy auditing, and power management applications.
