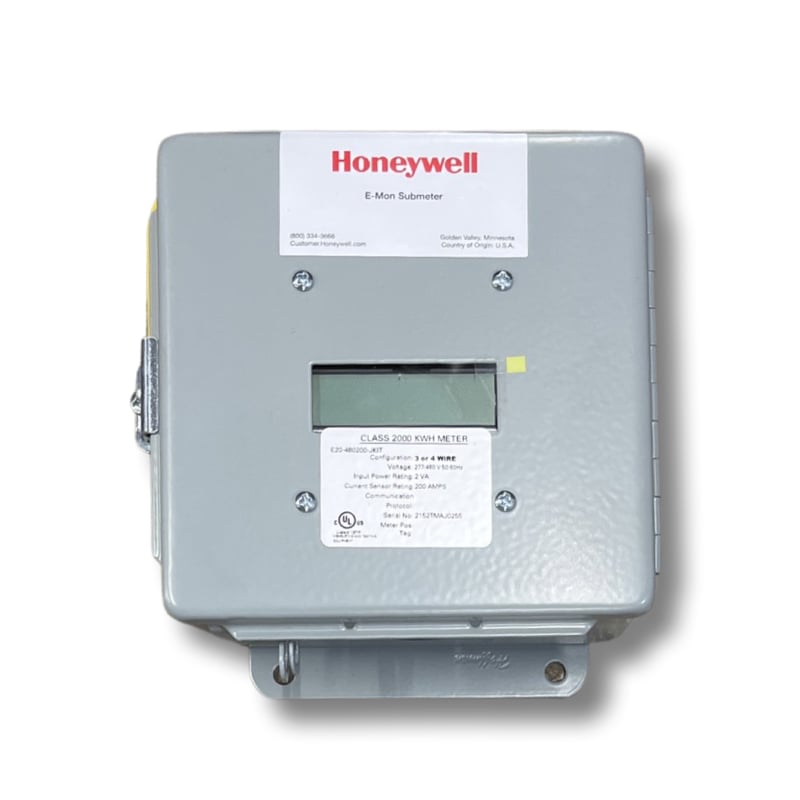

E20-480200-JKIT | Honeywell 200A Class 2000 StandAlone KWH Meter Kit
- Regular price
- $1,205.00
- Sale price
- $1,205.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E20-480200-JKIT
Description
The Honeywell E20-480200-JKIT is a standalone Class 2000 KWH meter kit engineered for accurate submetering in 277/480V, 3-phase electrical systems. With a 200A rating and three split-core sensors, it is optimized for commercial, industrial, and multi-tenant energy monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Test Equipment
|
| Part Number | E20-480200-JKIT |
| Subcategory | Multimeter |
| Voltage | 277/480V, 3-Phase, 3W or 4W |
| Current Rating | 200 Amps |
| Sensor Type | 3 Split-Core, 2V Output |
| Enclosure Type | JIC Steel (Indoor Use Only) |
| Display | 2-line LCD, real-time and cumulative kWh |
| Pulse Output | Yes (Fixed-value) |
| Certifications | UL Listed, CUL, ANSI C12.20 Compliant |
| Sensor Distance | Up to 2000 feet |
| Dimensions | 7.25” H x 7” W x 3.25” D |
| Weight | 7.00 lbs |
Information About E20-480200-JKIT
The E20-480200-JKIT is part of Honeywell’s E-MON Class 2000 series of revenue-grade submeters designed for high-accuracy kWh measurement in complex electrical configurations. This model is rated for 200 amps and is compatible with both 3-phase, 4-wire and 3-phase, 3-wire circuits at 277/480 VAC. It includes a weather-resistant JIC steel enclosure and three 2V output split-core current sensors, which can be installed up to 2000 feet away from the main meter—an ideal solution for retrofitting and distributed system integration without service interruption.
This unit features a clear 2-line LCD display for real-time energy consumption and supports pulse output for integration with BMS or data logging systems. It is UL and CUL listed, approved for Con Edison RSP programs, and supports fixed-value pulse configuration for demand monitoring. Its compact 7.25" x 7" x 3.25" size and indoor-rated housing make it a convenient and durable solution for energy management professionals.
Key Features:
- Voltage Compatibility: Operates on 277/480V, 3-phase, 3W or 4W electrical systems.
- Current Rating: Handles up to 200 Amps for commercial-grade submetering applications.
- Sensor Design: Includes three split-core 2V output current sensors, installable up to 2000 feet from the meter.
- Pulse Output: Supports fixed-value pulse output for demand logging and control system integration.
- Display Type: 2-line alphanumeric LCD for cumulative kWh and real-time load readouts.
- Construction: Housed in a robust industrial-grade JIC steel enclosure with padlock hasp.
- Certifications: UL and CUL listed; revenue-grade certified per ANSI C12.20 standards (±0.2% accuracy).
- Indoor Mounting: Intended for dry, indoor installation in commercial or residential spaces.
- Installation Flexibility: No voltage interruption required; compatible with existing wiring runs.
- Utility Approved: Compliant with Con Edison and California Energy Commission programs.
The E20-480200-JKIT provides advanced metering functionality and rugged reliability for energy cost allocation, load analysis, and regulatory compliance.
