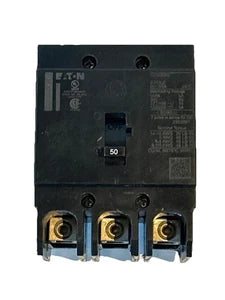

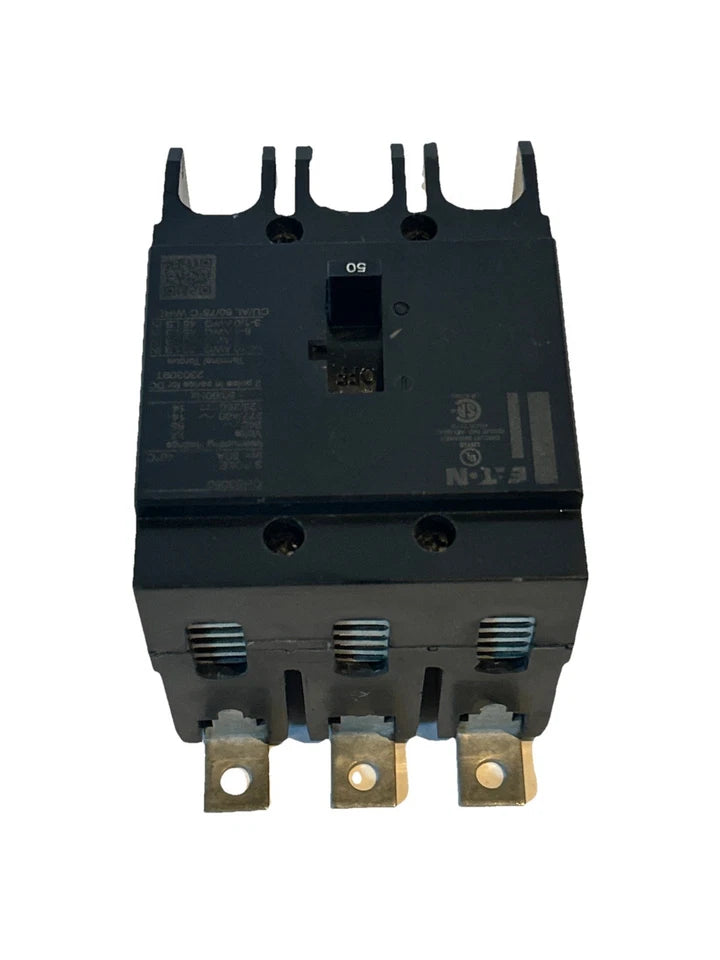

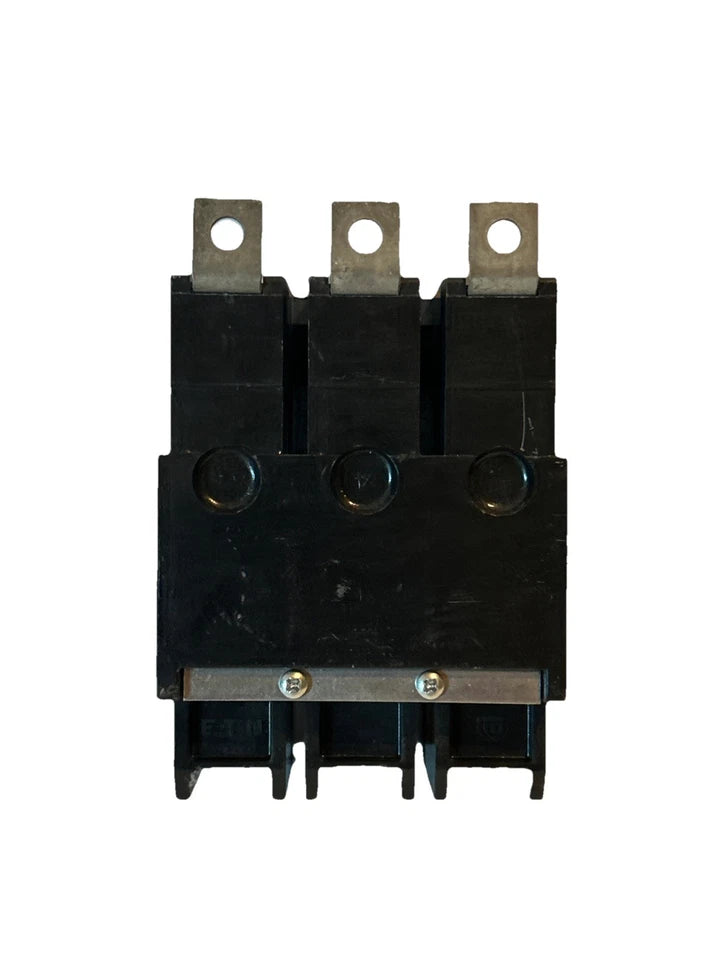

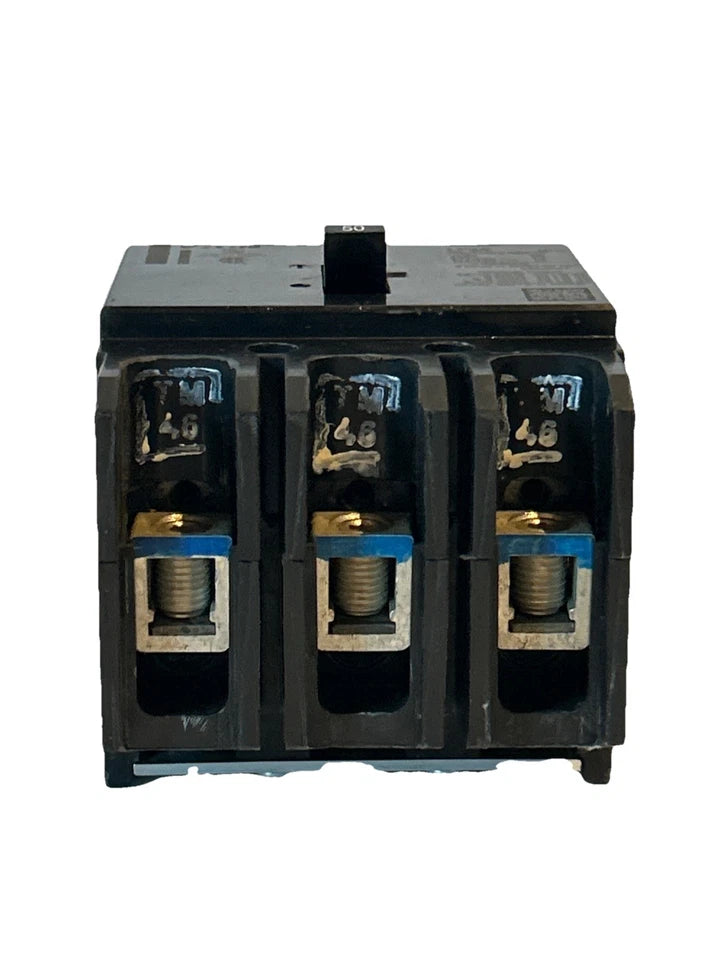

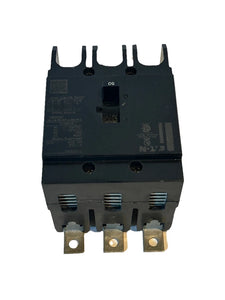

GHB3050 | Eaton Cutler-Hammer Series C Circuit Breaker, GHB G-Frame, 50A, 3-Pole, 480Y/277VAC, 14kAIC
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GHB3050
Description
The Eaton GHB3050 is a Series C molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical systems. Rated at 50A, it supports operation at 480Y/277VAC as well as 125/250VDC, utilizing fixed thermal and fixed magnetic trip technology. Its three-pole configuration and molded case construction ensure dependable performance across diverse 50/60 Hz power distribution environments.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Cutler Hammer |
| Category | Circuit Breaker |
| Part Number | GHB3050 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Eaton Corporation |
| Amperage Rating | 50 A |
| Voltage Rating | 480Y/277 VAC, 125/250 VDC |
| Trip Type | Fixed Thermal, Fixed Magnetic |
| Circuit Breaker Type | GHB |
| Circuit Breaker Frame Type | Complete Breaker |
| Series | Series C |
| Frame | G |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 14 kAIC @ 480Y/277 VAC |
| Interrupt Rating (Additional) | 65 kAIC @ 240 VAC |
| Number of Poles | 3 |
| Application | Industrial & Commercial Power Distribution |
ย
ย
Information About GHB3050
The GHB3050 is part of Eatonโs Series C G-frame product family and is configured as a complete molded case circuit breaker with fixed thermal and magnetic trip elements. Designed as a 3-pole protective device, it offers a 50-amp rating suitable for AC systems up to 480Y/277 volts or DC circuits up to 250 volts. The breaker supports both overload and short-circuit protection, delivering stable operation across 50/60 Hz networks. With interrupting ratings of 14 kAIC at 480Y/277VAC and 65 kAIC at 240VAC, the GHB3050 provides versatile protection performance for a wide range of electrical applications.
Key Features
- Series C G-Frame design: Part of Eatonโs molded case breaker family for commercial and industrial use.
- 50A, 3-pole configuration: Supports balanced three-phase system protection.
- Dual AC/DC voltage capability: Rated for 480Y/277VAC and 125/250VDC applications.
- Fixed thermal and magnetic trip: Ensures consistent overload and fault response.
- 14 kAIC at 480Y/277VAC: Provides strong interrupting performance for common distribution levels.
- 65 kAIC at 240VAC: Offers enhanced fault-clearing capacity for lower-voltage circuits.
- 50/60 Hz operation: Compatible with global frequency standards.
- Complete breaker assembly: Ready for installation in Series C compatible panels and systems.
The GHB3050 delivers the reliability and precision required for dependable three-phase protection in commercial and industrial electrical installations.
