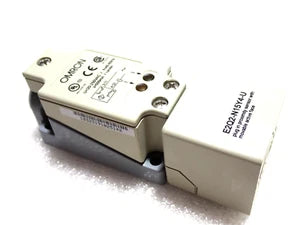

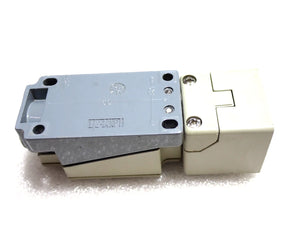

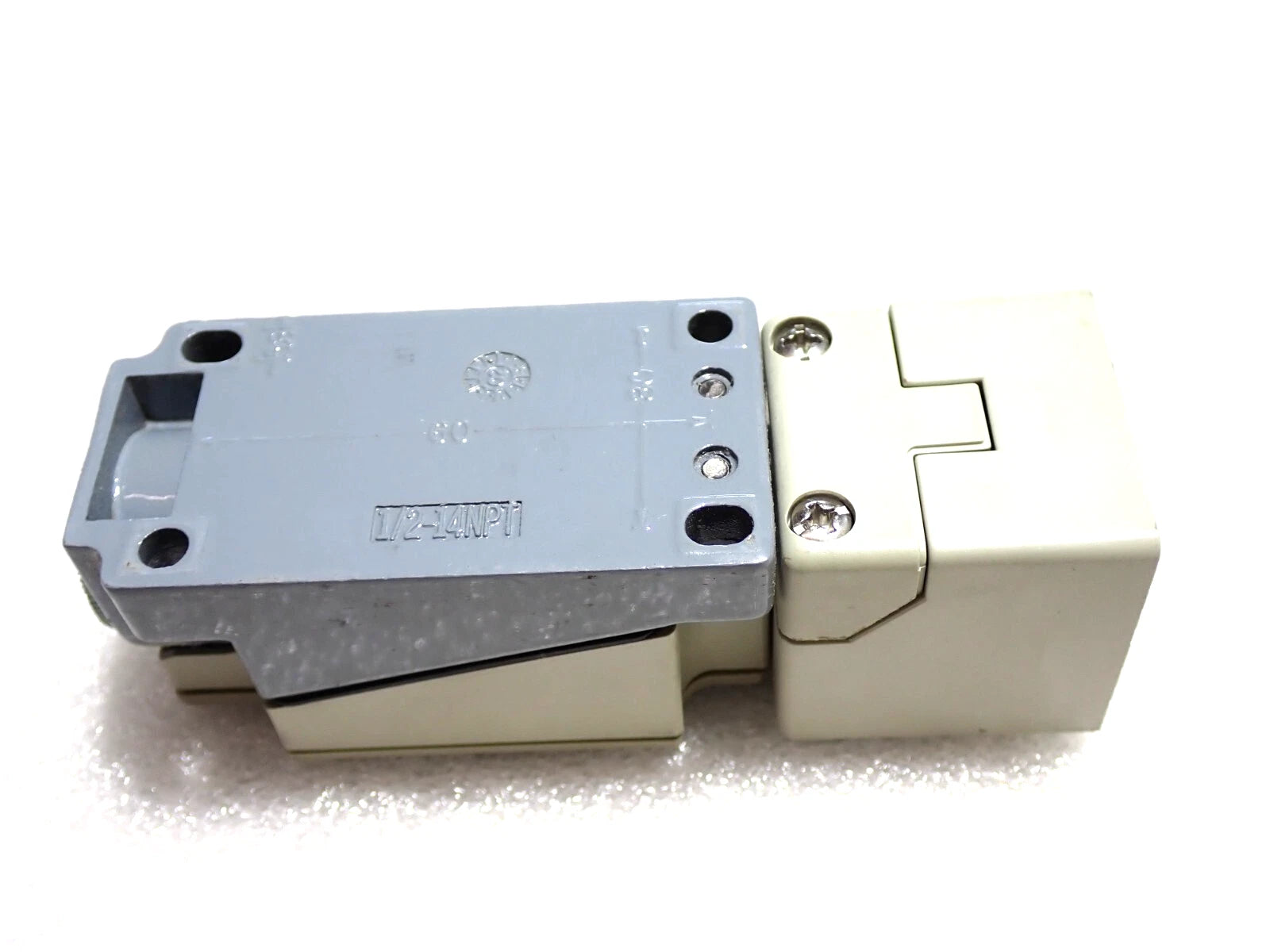

E2Q2-N15Y4-U | Omron E2Q2 Series Inductive Proximity Sensor 15 mm 20–253 VAC IP67
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E2Q2-N15Y4-U
Description
The Omron E2Q2-N15Y4-U Proximity Sensor is a robust inductive detection unit designed for accurate metal object sensing in industrial environments. Operating across a wide voltage range of 20–253 VAC, it offers a 15 mm sensing distance and selectable NO/NC output for flexible installation. Built with a durable PBT housing and IP67-rated enclosure, it ensures reliable performance in harsh operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E2Q2-N15Y4-U |
| Subcategory | Proximity Sensors |
| Series | E2Q2 Series |
| Type | Inductive Proximity Sensor |
| Technology | Inductive |
| Sensing Distance | 15 mm |
| Output Type | NO/NC (Normally Open/Normally Closed Selectable) |
| Supply Voltage Range | 20–253 VAC |
| Operating Frequency | 20 Hz (maximum) |
| Connection Method | Threaded Connection (NPT) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Threaded Mount |
| Enclosure Rating | IP67 |
| Temperature Range (Operating) | -25°C to +70°C |
| Temperature Range (Storage) | -30°C to +80°C |
| Protection Features | Overvoltage and short-circuit protection |
| Operating Principle | Non-contact metal detection |
| LED Indicator | Operation indicator (model dependent) |
| Compliance | RoHS Non-compliant (per datasheet) |
| Manufacturer | Omron Automation and Safety |
| Weight | Approx. 0.18 kg (0.40 lb) |
Information About E2Q2-N15Y4-U
The E2Q2-N15Y4-U is part of Omron’s E2Q2 Series of industrial-grade inductive proximity sensors known for long sensing ranges and easy mounting options. This model features a 15 mm nominal detection distance and operates on a universal AC voltage supply, making it ideal for integration into various control systems. It supports both Normally Open (NO) and Normally Closed (NC) output configurations, offering compatibility with multiple relay and PLC input types. Designed with a threaded NPT connection and polybutylene terephthalate (PBT) housing, the sensor provides vibration resistance, moisture protection, and long service life in manufacturing, automation, and process control applications.
Key Features:
- Inductive Sensing Technology: Detects metallic objects without physical contact.
- 15 mm Sensing Range: Provides reliable mid-range detection for general-purpose applications.
- Wide Voltage Range: Operates on 20–253 VAC for versatile system integration.
- Selectable Output Type: Supports both NO and NC configurations.
- Durable Housing: PBT body construction ensures resistance to oil, dust, and vibration.
- IP67 Protection Rating: Suitable for wet or dusty industrial environments.
- Threaded NPT Connection: Simplifies secure sensor mounting and replacement.
- Reliable Omron Performance: Designed for consistent operation and long service life in automation systems.
The E2Q2-N15Y4-U delivers the reliability and precision required for metal detection, machine control, and process monitoring in industrial environments.
