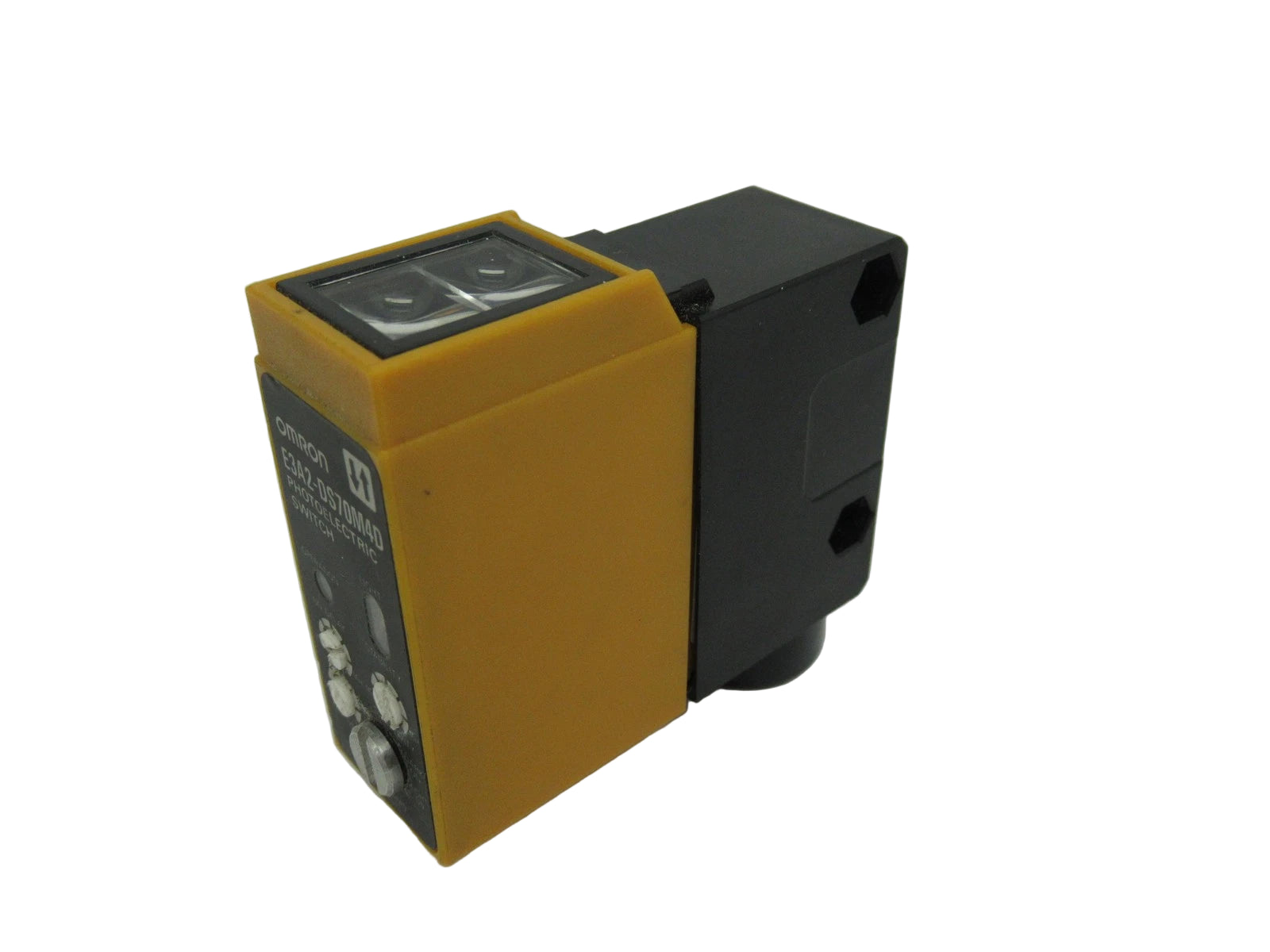

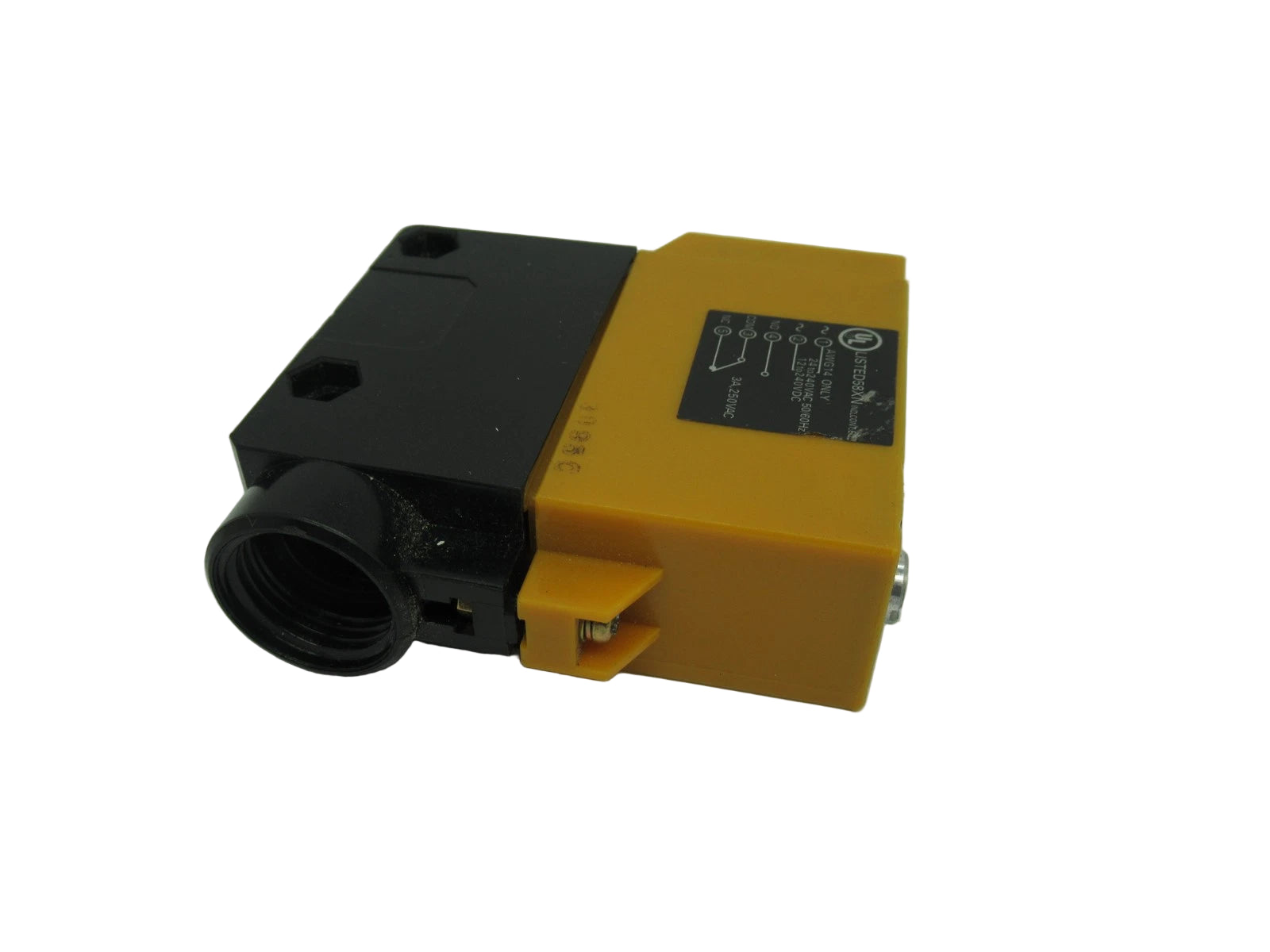

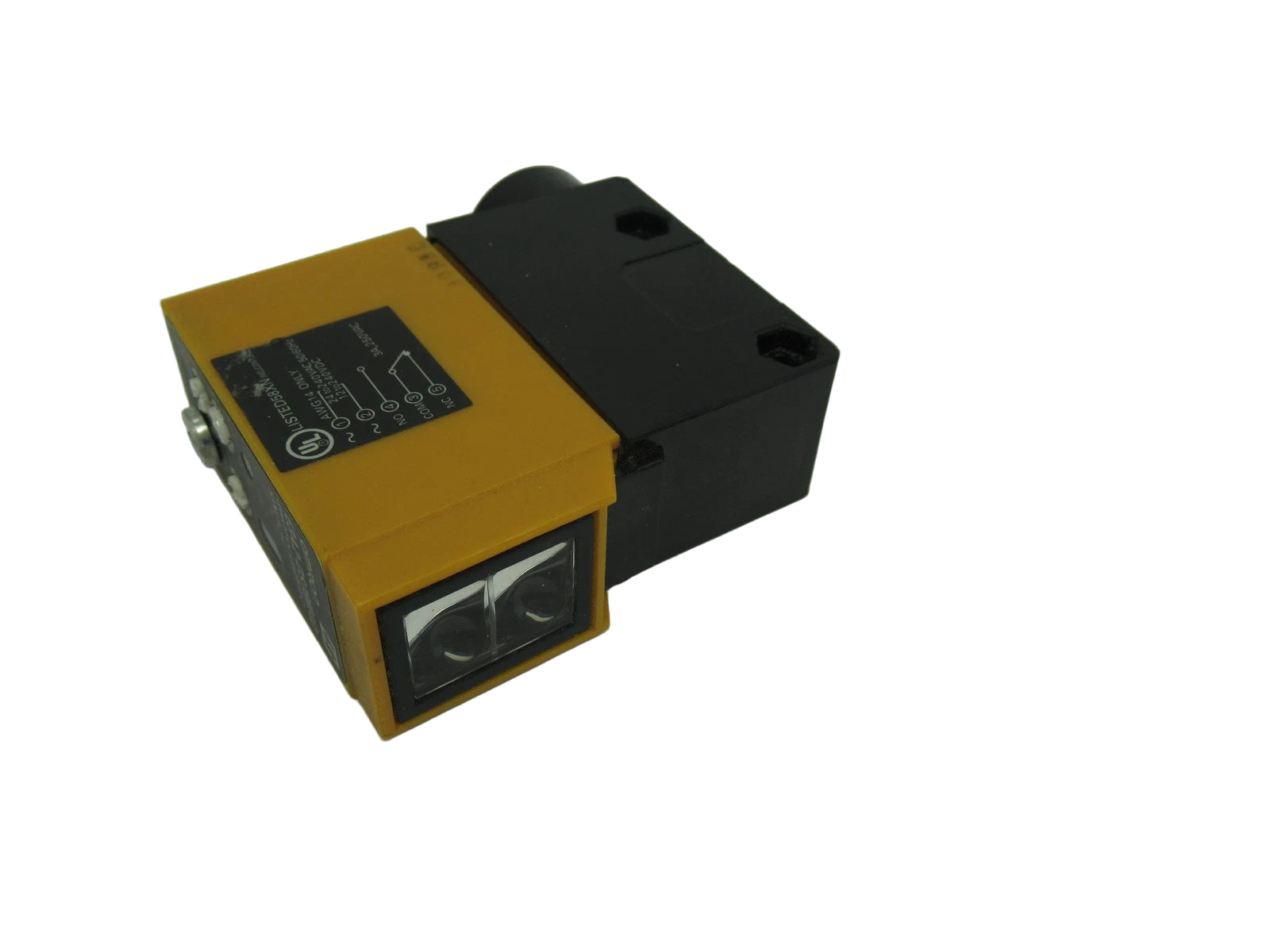

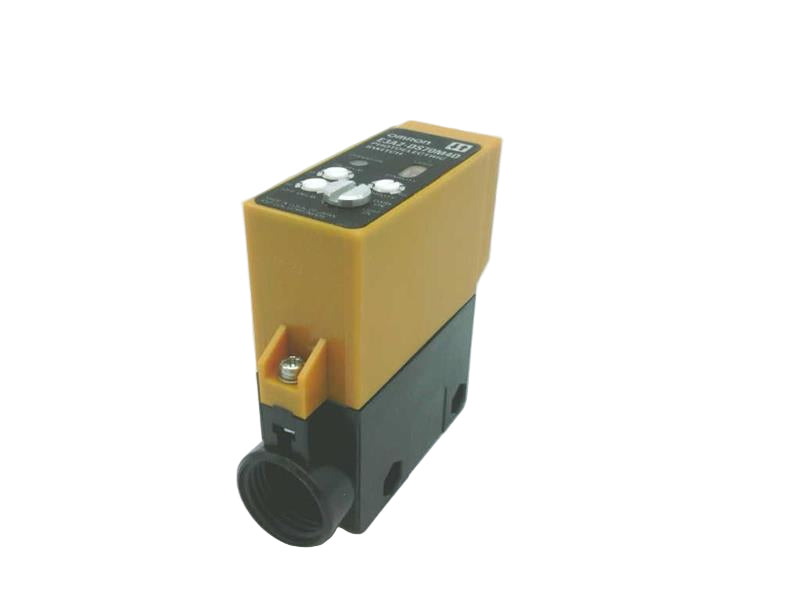

E3A2-DS70M4D | Omron Photoelectric Diffuse Sensor 70 cm Relay Output with Timer
- Regular price
- $915.00
- Sale price
- $915.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: E3A2-DS70M4D
Description
The Omron E3A2-DS70M4D Photoelectric Diffuse Sensor is a compact, relay-output photoelectric sensor designed for reliable object detection at distances up to 70 cm. Featuring a built-in timer function, it provides adjustable response delay for flexible operation in automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Sensors |
| Part Number | E3A2-DS70M4D |
| Subcategory | Photoelectric Sensors |
| Series | E3A2 Series |
| Type | Diffuse-Reflective Photoelectric Sensor |
| Sensing Distance | 70 cm |
| Sensing Method | Diffuse (Reflective from Target Surface) |
| Output Type | Relay Output |
| Timer Function | Built-In Adjustable Timer |
| Light Source | Infrared or Red LED (model dependent) |
| Supply Voltage | AC/DC (typical range 12–240 V AC/DC, depending on model) |
| Response Time | Standard (with user-adjustable delay) |
| Operating Temperature | -25°C to +55°C |
| Housing Material | Metal or Industrial Resin (model dependent) |
| Mounting Type | Panel or Bracket Mount |
| Connection Type | Cable Lead (prewired) |
| Indicator | Operation and Power LED Indicators |
| Product Status | Discontinued by Manufacturer |
| Application | Object Detection, Packaging, Conveyor Systems |
| Country of Origin | Japan |
| Weight | Approx. 0.6 lbs |
Information About E3A2-DS70M4D
The E3A2-DS70M4D belongs to the Omron E3A2 Series, a trusted family of photoelectric sensors engineered for industrial automation and process control. Utilizing diffuse-reflective sensing technology, it detects targets by receiving light reflected directly from the object’s surface, eliminating the need for a separate reflector. This model integrates a relay output for switching external loads and includes a built-in timer to manage delay or hold functions for process synchronization. Designed with Omron’s proven optical and electronic stability, the E3A2-DS70M4D offers dependable performance in packaging, materials handling, and machine monitoring applications.
Key Features:
- Diffuse-Reflective Sensing: Detects objects up to 70 cm without requiring a reflector.
- Relay Output Control: Provides robust switching for controlling external devices or PLC inputs.
- Integrated Timer Function: Allows delay adjustment for precise timing and process control.
- Compact, Durable Design: Built for industrial environments with stable optical alignment.
- Wide Power Compatibility: Operates on standard AC/DC supply (model dependent).
- High Detection Stability: Maintains reliable operation across varying surface colors and materials.
- Easy Alignment: Simple setup with visible sensing indicator for quick installation.
- Legacy Support: Commonly used in maintenance and retrofit of existing Omron automation systems.
The E3A2-DS70M4D delivers the reliability and precision required for diffuse photoelectric detection in industrial and packaging automation.
