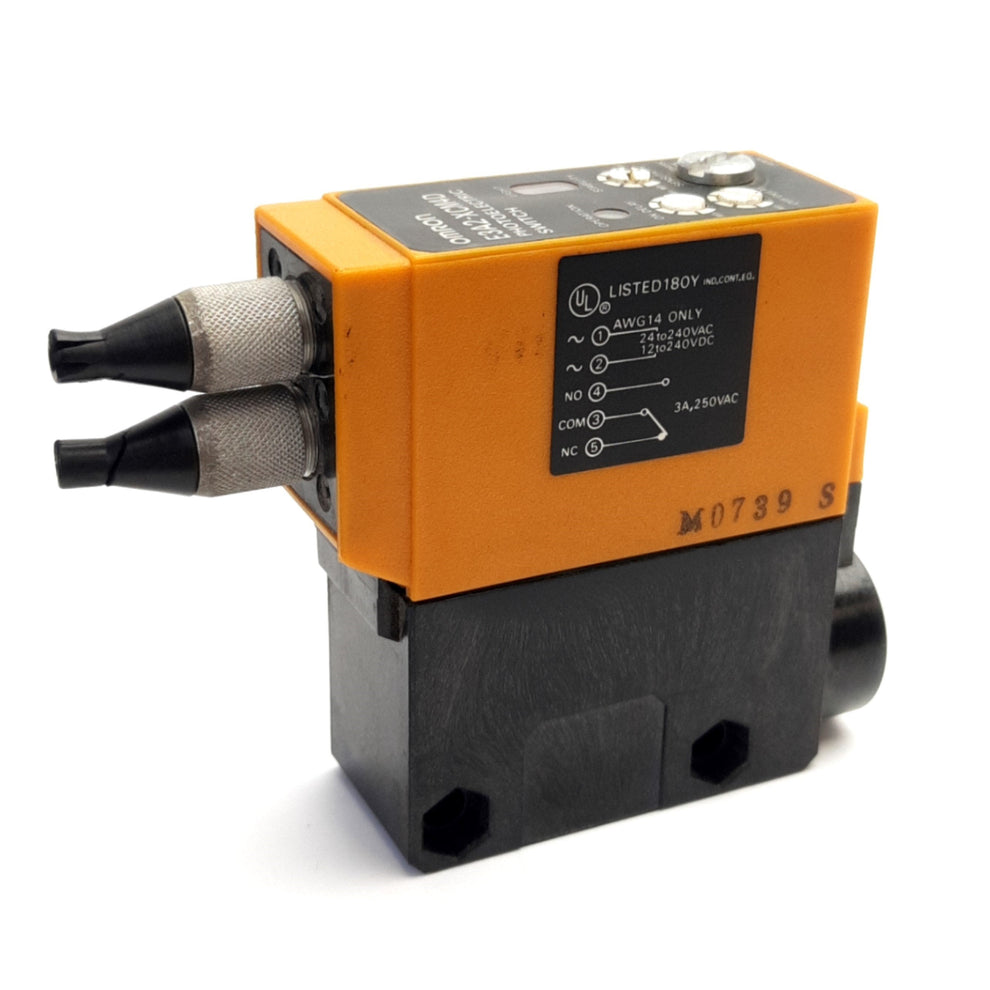

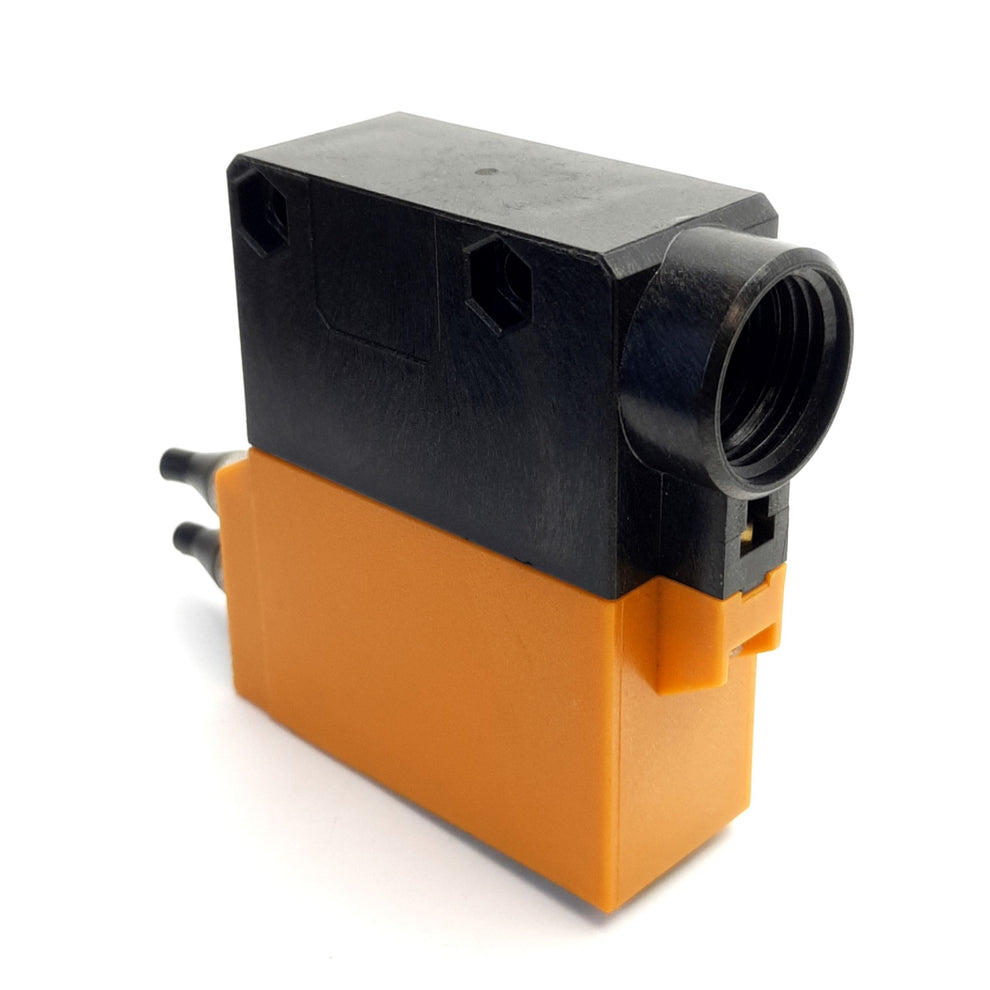

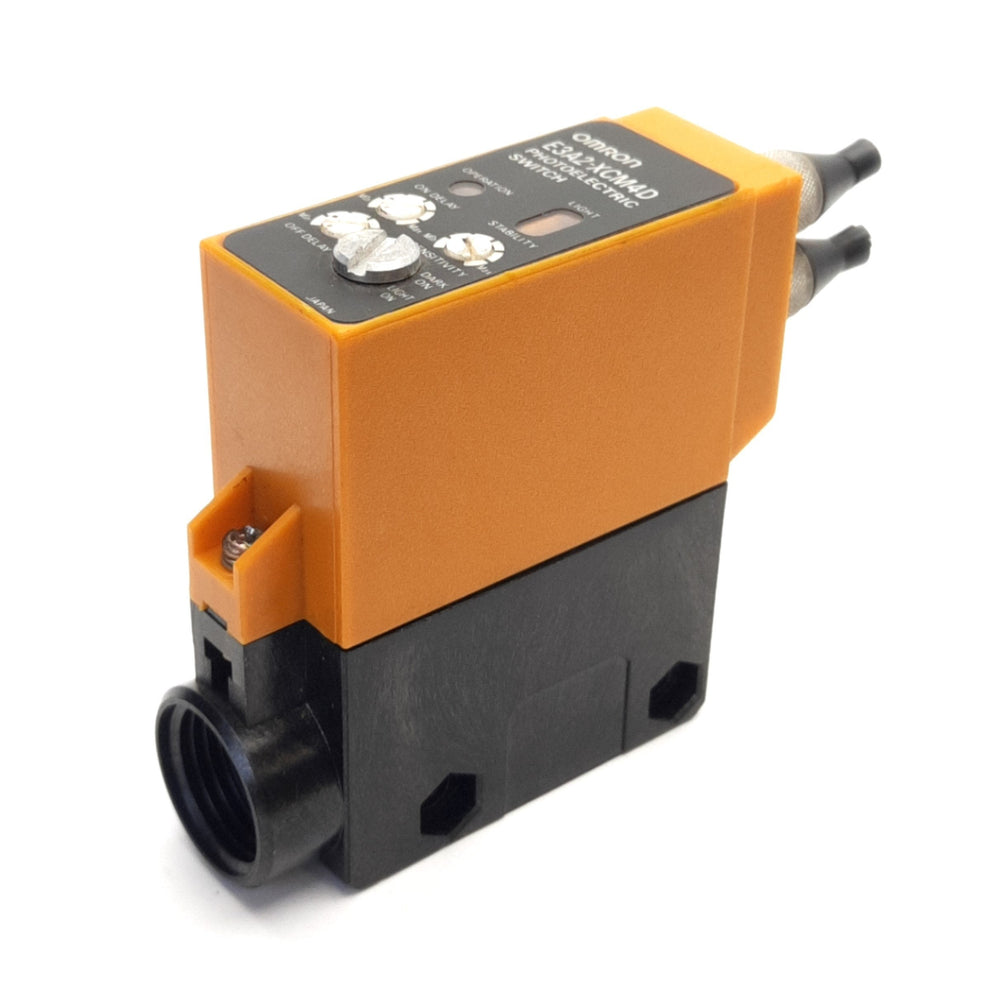

E3A2-XCM4D | Omron Photoelectric Sensor
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E3A2-XCM4D
Description
The E3A2-XCM4D is a fiber-optic amplifier/sensor designed for industrial automation. It works with remote fiber-optic cables for precise object detection and includes a built-in timer relay — suitable for both light‑on and dark‑on switching.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Sensors & Switches
|
| Part Number | E3A2-XCM4D |
| Subcategory | Sensor Amplifier |
| Series | E3A2-X |
| Amplifier Type | Standard |
| Voltage - Supply | 24 ~ 240 VAC / 12 ~ 240 VDC (Universal Supply) |
| Output Type | NPN / PNP (Relay Output - 3 Amp) |
| Current - Supply | 200 mA |
| Operating Temperature | −25°C to +55°C |
| Mounting Type | Bracket Mount |
| Sensor Type | Fiber-optic |
| Detection Modes |
Light-ON / Dark-ON selectable |
| Output Capacity | 3 Amp Relay Output |
| Timer Functions | On-delay / Off-delay independently adjustable |
| Timer Range | 0.1 to 5 seconds |
| Typical Applications | Remote fiber-optic detection in industrial automation |
| Weight | 0.50 lbs |
Information About E3A2-XCM4D
The E3A2-XCM4D is a fiber-optic sensor amplifier from Omron’s E3A2-X series, designed for precise object detection in industrial automation environments. Featuring compatibility with E32-series fiber-optic cables, it enables remote and confined-area sensing with high flexibility. Equipped with a universal power supply and relay output, the sensor supports both Light-ON and Dark-ON detection modes, along with independently adjustable ON- and OFF-delay timers for tailored control. Its IP66-rated enclosure and bracket mounting ensure reliable operation in demanding conditions, while simple screw-terminal or conduit connections facilitate easy installation and maintenance.
Key Features:
- Fiber-Optic Detection: Works with Omron’s E32-series fiber-optic cables for accurate sensing in restricted or hazardous locations.
- Universal Power Supply: Supports both 24–240 VAC and 12–240 VDC inputs, ensuring compatibility with varied industrial power systems.
- Selectable Light-ON/Dark-ON Modes: Allows flexible application setup via a simple mode-selection switch.
- Relay Output with High Capacity: Integrated SPDT relay supports 3 A switching at 250 VAC, enabling direct load control without external relays.
- Integrated Dual Timers: Independent ON-delay and OFF-delay settings adjustable from 0.1 to 5 seconds, providing advanced timing control over sensor output.
- Pulse-Modulated Red LED Light Source: Delivers stable, interference-resistant detection with reliable signal processing.
- IP66-Rated Housing: Ensures dust-tight and water-resistant performance for robust use in harsh industrial environments.
- Bracket Mount Installation: Slim profile with bracket-mounting simplifies mechanical setup and positioning.
- Temperature Range: Operates reliably between −25°C and +55°C, suited for typical industrial floor conditions.

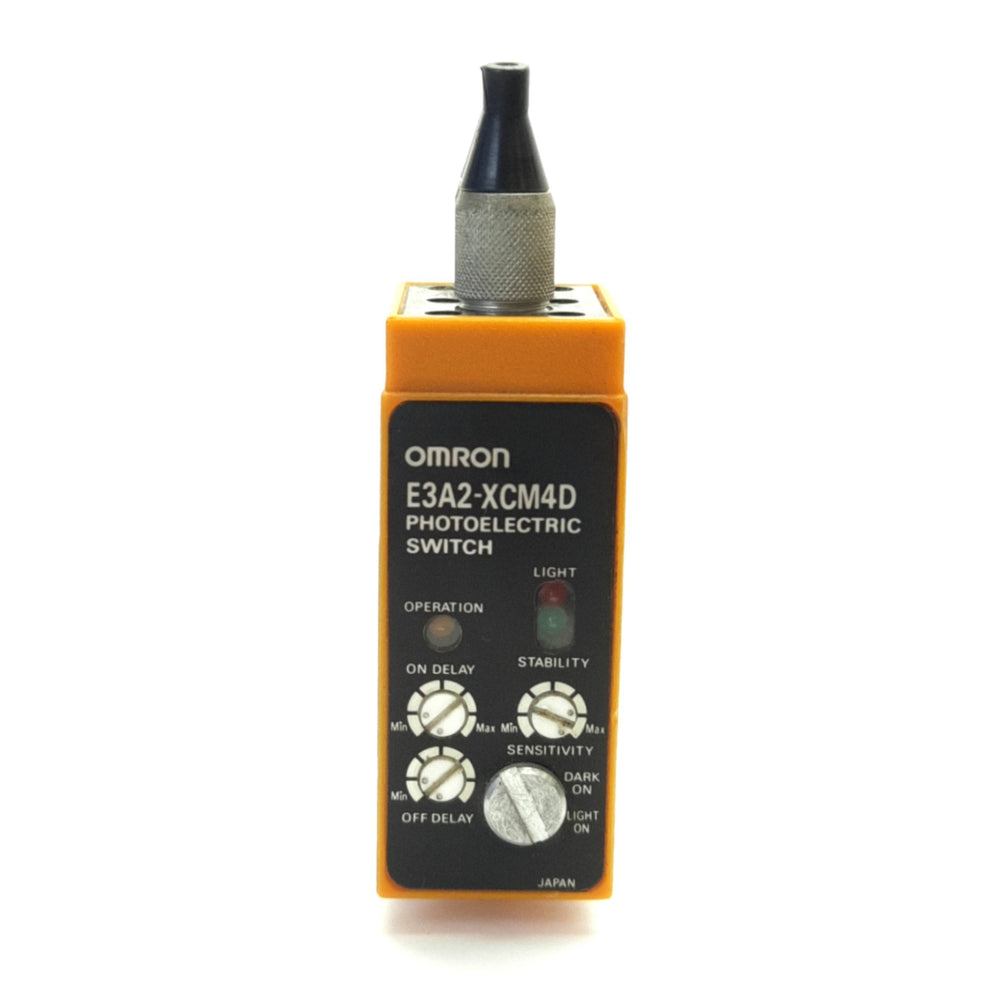

- Status Indicators: Equipped with multiple LEDs to indicate incident light, stability, and output status for easy diagnostics.
The E3A2-XCM4D fiber-optic sensor amplifier combines flexible configuration, robust relay output, and remote sensing capabilities, making it a versatile solution for precision detection in industrial automation applications. Its integrated timers and dual-mode detection allow adaptable control for presence detection, small part inspection, and assembly monitoring tasks, even in challenging factory environments.
