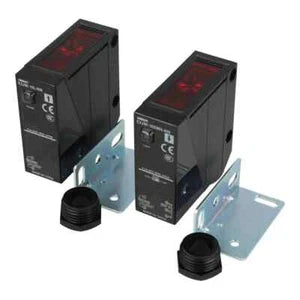

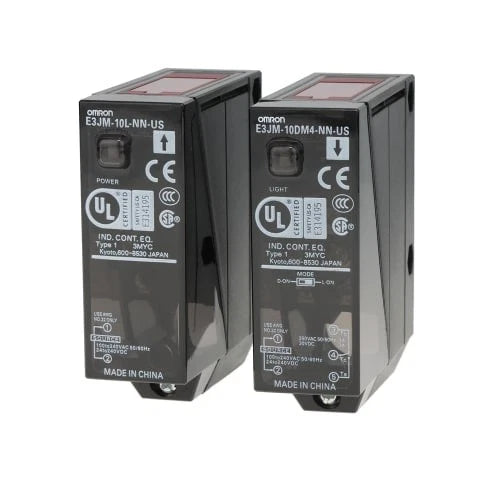

E3JM-10M4-NN-US | Omron E3JM Series Through-Beam Photoelectric Sensor 10 m AC/DC
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E3JM-10M4-NN-US
Description
The Omron E3JM-10M4-NN-US Photoelectric Sensor is a through-beam type rectangular sensor engineered for long-distance object detection in industrial environments. Operating on universal 24–240 VDC or 100–240 VAC, it provides a 10 m sensing range with high reliability and selectable Light-ON/Dark-ON operation. Featuring an SPDT relay output and rugged IP66-rated housing, it delivers consistent performance for automation, packaging, and material handling systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E3JM-10M4-NN-US |
| Subcategory | Photoelectric Sensors |
| Alternate Part Number | E3JM10M4NNUS |
| Series | E3JM Series |
| Type | Through-Beam Photoelectric Sensor |
| Shape / Body Style | Rectangular / Square Type |
| Sensing Method | Through-Beam |
| Sensing Distance | 10 m |
| Light Source | Infrared LED (950 nm) |
| Standard Sensing Object | Opaque: 14.8 mm diameter minimum |
| Directional Angle | 3° to 20° (Emitter and Receiver) |
| Operation Mode | Light-ON / Dark-ON Selectable |
| Output Type | SPDT Relay Output |
| Rated Load | 250 VAC 3 A (cosφ=1 max), 5 VDC 10 mA min. |
| Power Supply Voltage | 100–240 VAC ±10%, 24–240 VDC ±10% |
| Power Consumption | 3 W (Emitter + Receiver) max. |
| Response Time | 30 ms max. |
| Ambient Illuminance | 3,000 lx max. (incandescent lamp) |
| Insulation Resistance | 20 MΩ min. (500 VDC) |
| Dielectric Strength | 2000 VAC, 50/60 Hz for 1 min |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z |
| Shock Resistance | 500 m/s² (Destruction), 100 m/s² (Malfunction) |
| Ambient Temperature (Operating) | -25°C to +55°C (no freezing/condensation) |
| Ambient Temperature (Storage) | -30°C to +70°C |
| Ambient Humidity (Operating) | 45–85% RH |
| Degree of Protection | IP66 (IEC Standard) |
| Connection Type | Terminal Block (Screw Terminals) |
| Mounting Type | Bracket Mount |
| Material – Case | ABS Resin |
| Material – Lens | Methacrylate Resin |
| Material – Cover | Polycarbonate |
| Accessories Included | Mounting Bracket, Nut, Terminal Cover, Instruction Manual |
| Weight | Approx. 270 g |
Information About E3JM-10M4-NN-US
The E3JM-10M4-NN-US is part of Omron’s E3JM Series, known for its robust construction, long-range detection, and compatibility with both AC and DC power systems. This through-beam photoelectric sensor uses a 950 nm infrared LED light source for stable object detection up to 10 meters. It features a selectable Light-ON/Dark-ON mode, allowing flexible configuration for various detection applications. Built with durable ABS housing, methacrylate lens, and polycarbonate cover, the unit is designed for industrial durability, while the terminal block connection simplifies installation and maintenance.
Key Features:
- Through-Beam Detection: Achieves long-distance sensing up to 10 meters using emitter and receiver pair.
- Universal Power Supply: Operates on 24–240 VDC or 100–240 VAC for flexible integration.
- SPDT Relay Output: Provides reliable switching for control circuits and PLC interfaces.
- Light-ON/Dark-ON Selectable: Supports both output configurations for versatile application use.
- Rugged Construction: IP66-rated ABS housing with methacrylate lens for industrial protection.
- Fast Response Time: 30 ms maximum response for high-speed object detection.
- Vibration and Shock Resistant: Designed to withstand industrial motion and environmental stress.
- Omron E3JM Series Reliability: Proven performance in automation, logistics, and machinery systems.
The E3JM-10M4-NN-US delivers the reliability and precision required for long-range photoelectric sensing, safety, and control applications in industrial automation.
