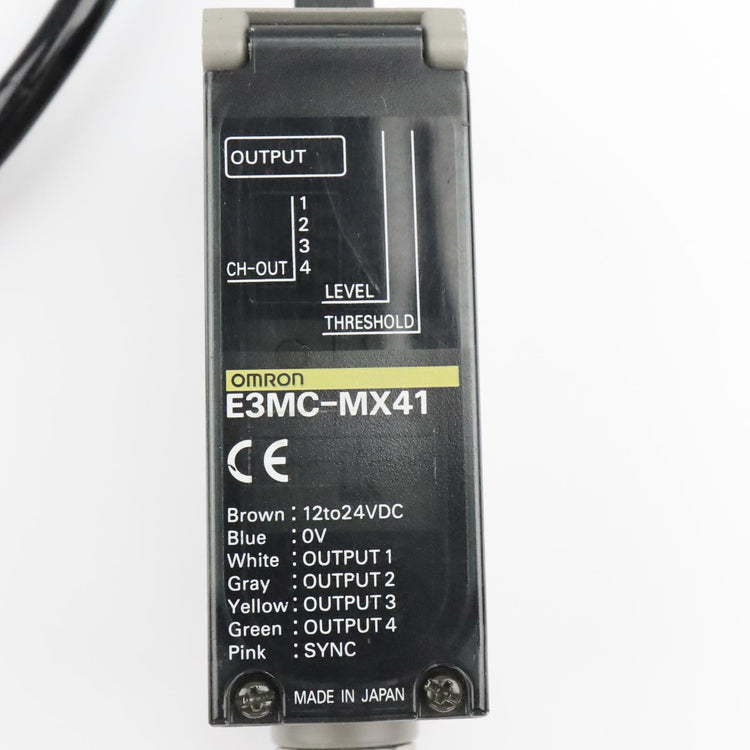

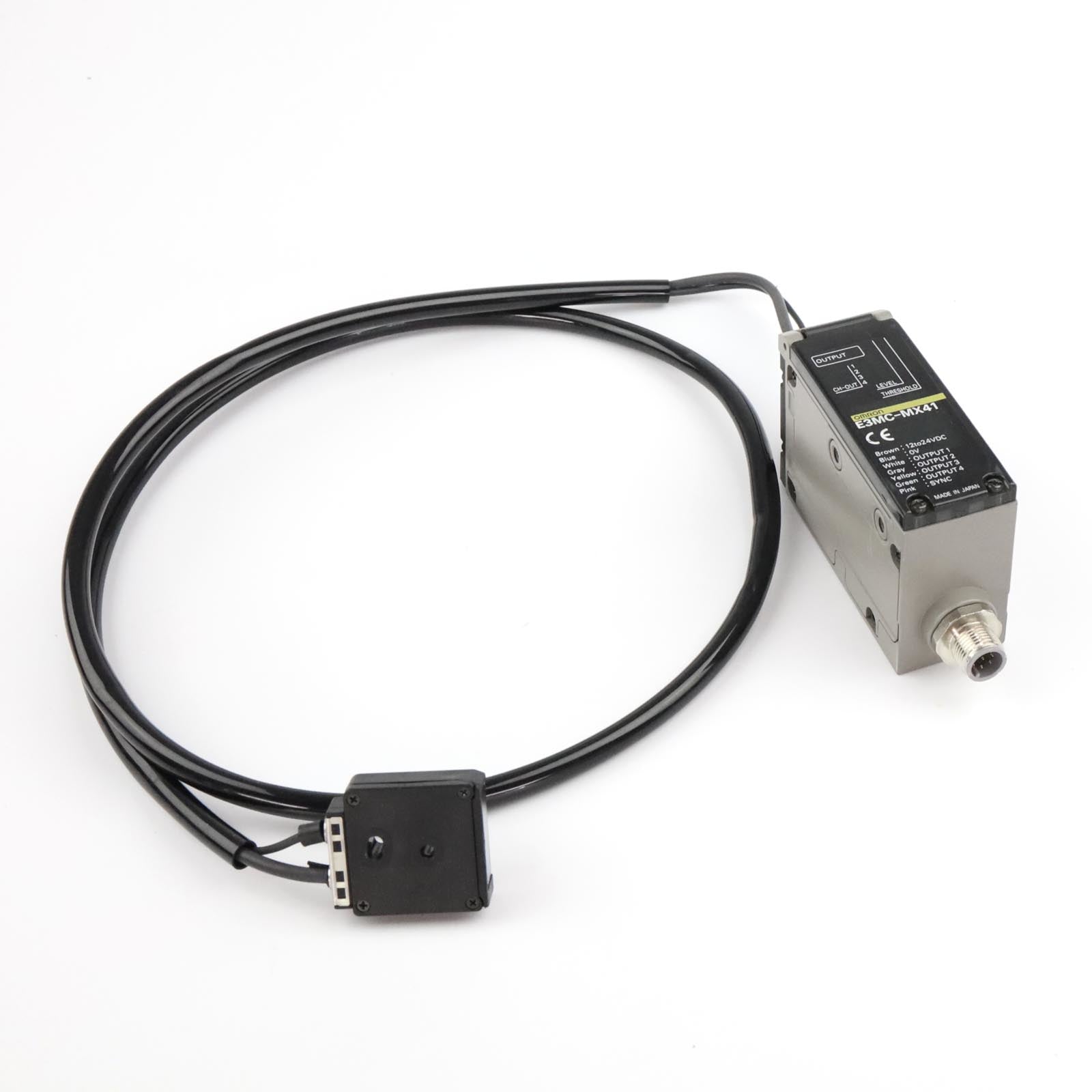

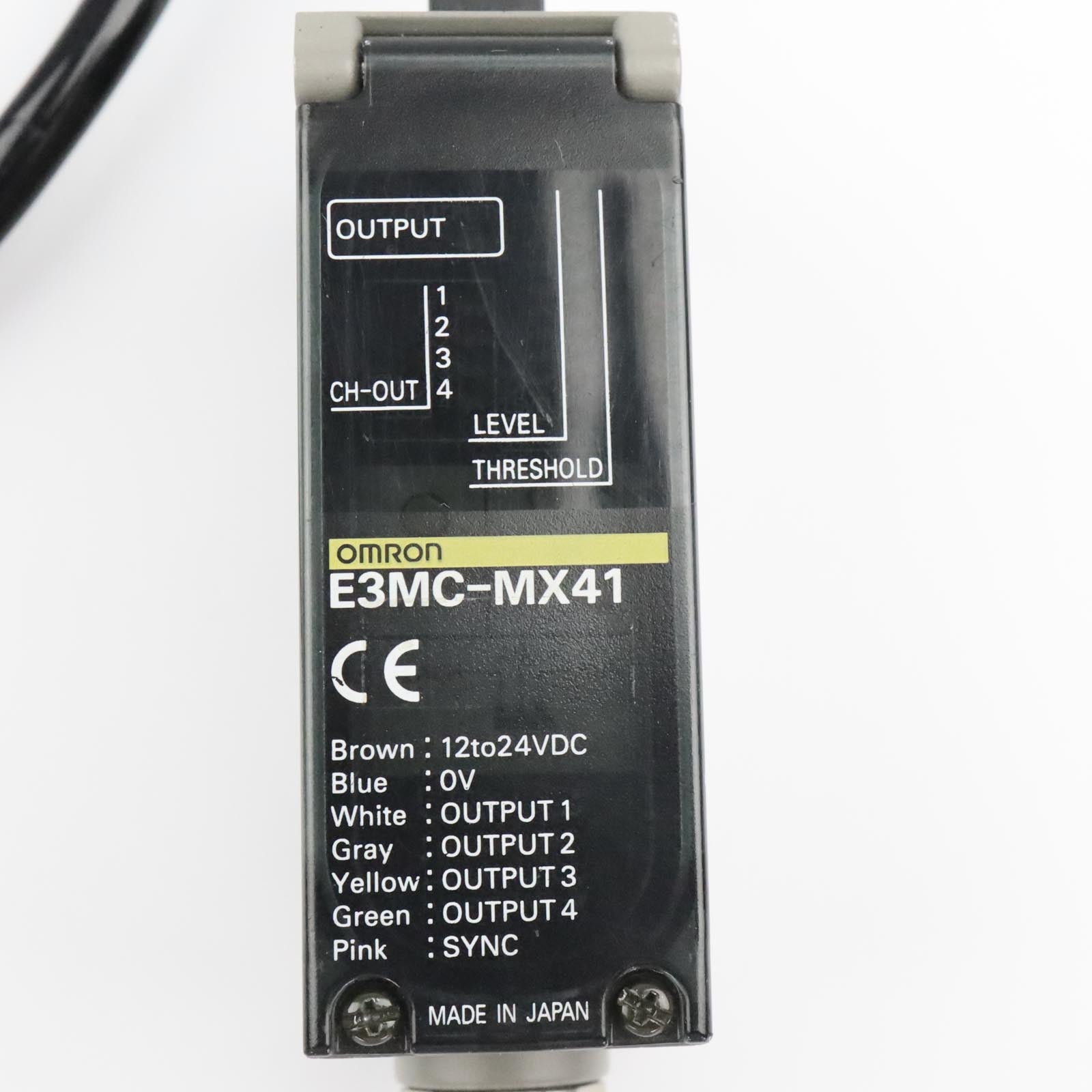

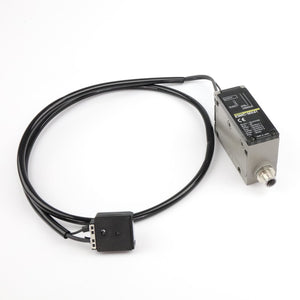

E3MC-MX41 | Omron 4-Channel Fiber Optic RGB Photoelectric Sensor with PNP Output

Description

The Omron E3MC-MX41 is a fiber optic photoelectric sensor with four output channels, designed for precise object detection in automation systems. Operating on 12–24 VDC, it features a PNP output configuration and M12 connector for secure installation.

Technical Specifications

Information About E3MC-MX41

The E3MC-MX41 is part of Omron’s E3MC series, offering advanced fiber optic sensing capabilities for high-speed and accurate detection. It supports a 4-channel configuration, enabling multiple sensing points within one unit for flexible applications. Equipped with a 20 ± 4 mm detection range and a 3 mm spot size, it uses RGB light technology to detect objects with varying colors and surface characteristics. The unit is compatible with M12 connectors for easy integration, features PNP output logic for standard industrial interfaces, and is built for use with fiber heads such as the 30 × 30 × 10 mm type for specialized detection tasks.

Key Features:

• Four Output Channels: Allows simultaneous monitoring of multiple sensing points in one device.

• Fiber Optic Sensing: Provides accurate detection in confined or challenging environments.

• RGB Light Technology: Detects a wide range of colors and surface types with high reliability.

• Precise Detection Range: 20 ± 4 mm with a focused 3 mm spot for pinpoint accuracy.

• Compatible Fiber Heads: Supports 30 × 30 × 10 mm head configurations for specific applications.

• PNP Output Type: Ensures compatibility with standard industrial PLC inputs.

• 12–24 VDC Operating Voltage: Works with common industrial power supplies.

• M12 Connector Interface: Enables secure, quick, and vibration-resistant electrical connection.

• Lightweight Construction: Weighs only 0.48 lbs, allowing easy installation without mechanical stress.

The E3MC-MX41 delivers the reliability and precision required for multi-point, high-accuracy object detection in industrial automation environments.
