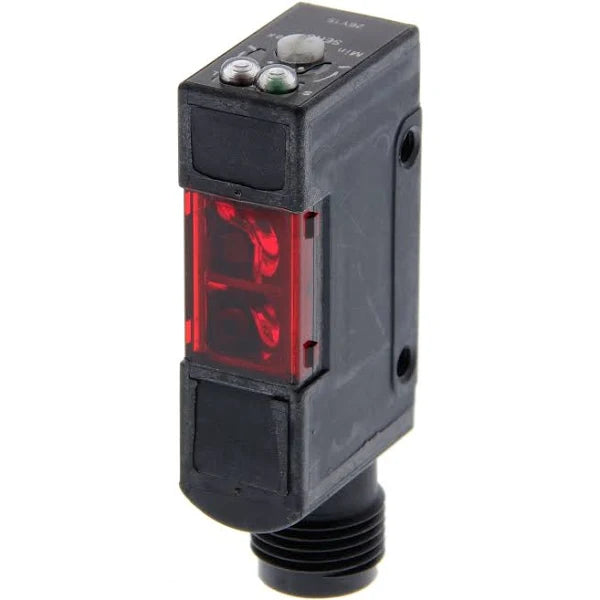

Product Description P/N: E3S-AD86
Description
The Omron E3S-AD86 Photoelectric Sensor is a diffuse-reflective sensor designed for industrial applications. It features a sensing distance range from 10 to 200 mm, making it suitable for various proximity sensing tasks. The sensor detects objects in the front direction and operates on a PNP configuration. Additionally, it is equipped with M12 connector models for convenient installation and connectivity in industrial setups.
Technical Specifications
|
Part # |
E3S-AD86 |
|
Manufacturer |
OMRON |
|
Category |
Sensors & Switches |
|
Subcategory |
Photoelectric |
|
Shape |
Square type |
|
Sensing method |
Diffuse-reflective |
|
Sensing distance |
White paper 100 x 100 mm: 10 to 200 mm |
|
Differential distance |
10% max. of sensing distance |
|
Light source |
Red LED (660 nm) |
|
Power supply voltage |
10 to 30 VDC ripple (p-p) 10% included |
|
Current consumption |
30 mA max. |
|
Control output |
PNP open collector |
|
Control output |
30 VDC max. |
|
Control output |
100 mA max. |
|
Operation mode |
Light-ON/Dark-ON selectable |
|
Protective circuit |
Output short-circuit protection, |
|
Protective circuit |
Power supply reverse polarity protection |
|
Response time |
Operate or reset: 0.5 ms max. |
|
Sensitivity setting |
2-turn endless adjustment (with indicator) |
|
Ambient illuminance |
Incandescent lamp: 5,000 lx max. |
|
Ambient illuminance |
Sunlight: 10,000 lx max. |
|
Ambient temperature (Operating) |
-25 to 55 ℃ (with no freezing or condensation) |
|
Ambient temperature (Storage) |
-40 to 70 ℃ (with no freezing or condensation) |
|
Ambient humidity (Operating) |
35 to 85 % (with no condensation) |
|
Ambient humidity (Storage) |
35 to 95 % (with no condensation) |
|
Insulation resistance |
20 MΩ min. (500 VDC megger) |
|
Dielectric strength |
1000 VAC 50/60 Hz 1 min |
|
Vibration resistance |
Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|
Shock resistance |
Destruction: 500 m/s2 3 times each in X, Y and Z directions |
|
Degree of protection |
IEC: IP67 |
|
Connection method |
M12 connector models |
|
Indicator |
Light indicator (red), Stability indicator (green) |
|
Weight |
Package: Approx. 50 g |
|
Accessories |
Instruction manual, Mounting bracket, Sensitivity adjustment driver, Sensitivity adjusting knob, Close-mounting plate (only for Sensors with connector terminals) |
|
Material |
Case: Polybutylene terephthalate (PBT) |
Information About E3S-AD86
The Omron E3S-AD86 is a type of photoelectric sensor designed for various industrial applications. Its operating principle is based on diffuse-reflective sensing, offering reliable performance in detecting objects within a specified distance range. The sensor is engineered to sense objects positioned within a distance of 10 to 200 mm from its surface, providing flexibility in proximity detection.
In terms of its detecting direction, the E3S-AD86 sensor is optimized for frontal detection, making it suitable for installations where objects need to be detected directly in front of the sensor's field of view. This directional specificity enhances the sensor's accuracy and ensures precise object detection in diverse operational environments.
The sensor operates on a PNP (positive-negative-positive) configuration, which is a type of transistor output commonly used in industrial sensing applications. This configuration allows for compatibility with a wide range of industrial control systems and enables seamless integration into existing setups.
For ease of installation and connectivity, the Omron E3S-AD86 sensor is available in M12 connector models. The M12 connector interface provides a secure and reliable connection, minimizing installation time and effort while ensuring consistent performance in industrial environments.
Key specifications of the Omron E3S-AD86 photoelectric sensor include its compact design, allowing for convenient integration into space-constrained setups. The sensor's dimensions and form factor are optimized to facilitate flexible mounting options and adaptability to various installation configurations.
