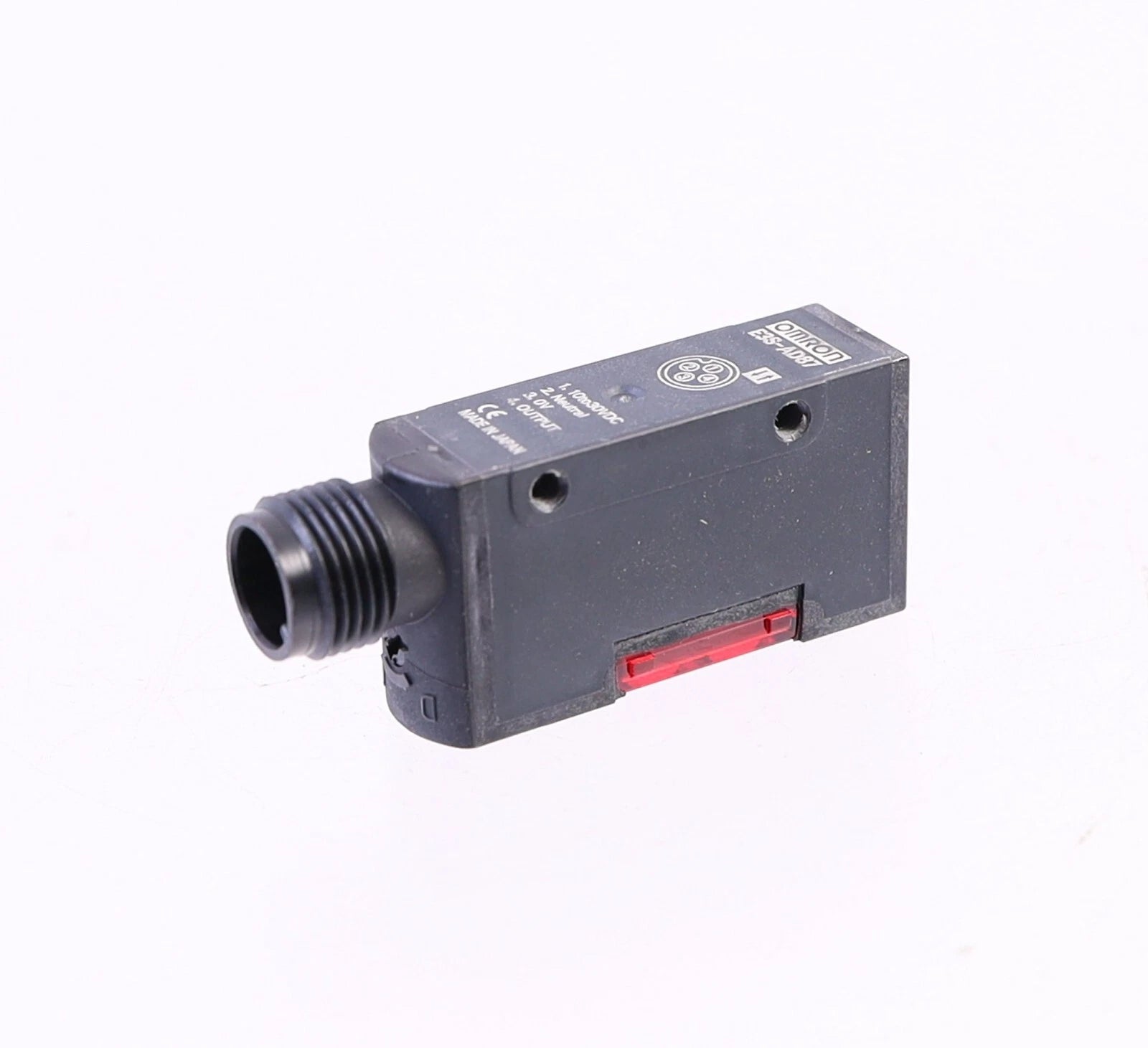

E3S-AD87 | Omron 700mm Diffuse Photoelectric Sensor PNP M12
- Regular price
- $212.00
- Sale price
- $212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3S-AD87
Description
The Omron E3S-AD87 is a diffuse-reflective photoelectric sensor designed for object detection up to 700 mm. It operates on a 10 to 30 VDC power supply and features a PNP open-collector output. The unit includes an M12 connector for secure industrial installation and supports high-speed response for automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3S-AD87 |
| Subcategory | Photoelectric |
| Series | E3S-A |
| Sensing Method | Diffuse-Reflective |
| Sensing Distance | 700 mm |
| Light Source | Infrared LED (850 nm) |
| Supply Voltage | 10–30 VDC |
| Current Consumption | 35 mA max. |
| Output Type | PNP Open Collector |
| Max Output Current | 100 mA |
| Response Time | 0.5 ms max. |
| Operation Mode | Light-ON / Dark-ON Selectable |
| Protection Rating | IP67, NEMA 4X (Indoor) |
| Connection Method | M12 Connector |
| Operating Temperature | -25°C to 55°C |
| Housing Material | PBT |
| Weight | 0.25 lbs |
Information About E3S-AD87
The E3S-AD87 belongs to the Omron E3S-A series of square-type photoelectric sensors engineered for reliable detection in industrial environments. It utilizes an infrared LED light source with an 850 nm wavelength and detects a 200 × 200 mm white target at distances up to 700 mm. The sensor provides a PNP open-collector output rated up to 100 mA and supports selectable Light-ON/Dark-ON operation modes. Designed with IP67 protection and a robust PBT housing, it is suitable for use in environments requiring resistance to dust, moisture, and mechanical vibration.
Key Features:
-
Diffuse-Reflective Sensing: Detects objects using reflected infrared light.
-
700 mm Sensing Distance: Suitable for medium-range detection applications.
-
PNP Open-Collector Output: Rated up to 100 mA at 30 VDC.
-
10–30 VDC Operation: Wide DC power supply compatibility.
-
0.5 ms Response Time: Fast operate and reset timing.
-
Light-ON/Dark-ON Selection: Configurable operating mode.
-
IP67 Protection Rating: Dust-tight and water-resistant enclosure.
-
M12 Connector Interface: Industrial-grade connection method.
The E3S-AD87 delivers the reliability and precision required for industrial object detection and automation sensing tasks.
