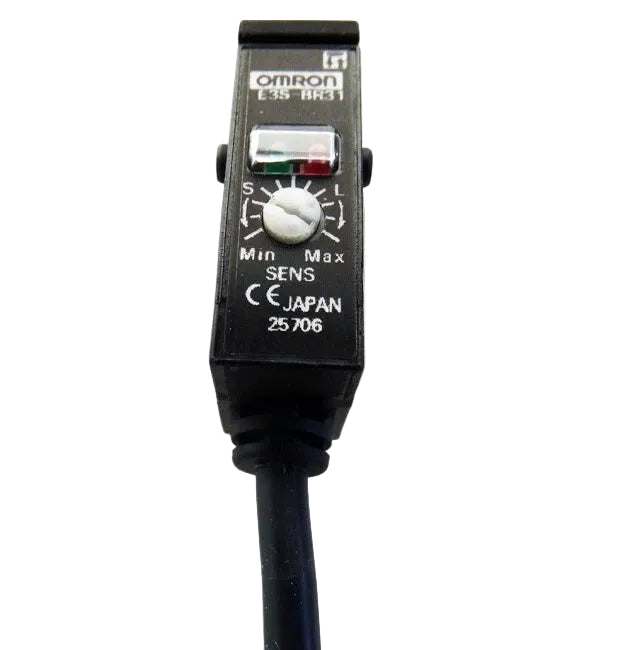

E3S-BR31 | Omron Retroreflective Photoelectric Sensor 1m PNP
- Regular price
- $232.00
- Sale price
- $232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3S-BR31
Description
The Omron E3S-BR31 is a retroreflective photoelectric sensor designed for object detection up to 1 meter. It operates on a 10–30 VDC supply and features a PNP output with selectable Light-ON/Dark-ON modes. The sensor uses a red LED light source and is built for industrial environments requiring reliable optical detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3S-BR31 |
| Subcategory | Photoelectric |
| Series | E3S-B |
| Sensing Method | Retroreflective, Polarized |
| Sensing Distance | 1 m |
| Light Source | Red LED (700 nm) |
| Supply Voltage | 10 – 30 VDC |
| Output Type | PNP Open Collector |
| Response Time | 500 µs |
| Ingress Protection | IP67 (NEMA 4X, 6) |
| Operating Temperature | -25°C to +55°C |
| Connection Method | Pre-wired Cable (2 m) |
| Weight | 0.10 lbs |
Information About E3S-BR31
The E3S-BR31 is part of the Omron E3S-B series of compact industrial photoelectric sensors. It utilizes a polarized retroreflective sensing method to detect objects with stable performance over a sensing distance of up to 1 m. The unit is equipped with a pre-wired 2 m cable for direct connection and supports a 10 to 30 VDC power supply. With an IP67 protection rating and adjustable sensitivity, it is suited for machine automation and conveyor-based detection systems.
Key Features:
-
Retroreflective Sensing: Polarized retroreflective detection up to 1 meter.
-
Red LED Light Source: 700 nm wavelength for stable optical performance.
-
PNP Output: Open collector output with Light-ON/Dark-ON selectable mode.
-
10–30 VDC Operation: Wide DC supply voltage range.
-
Fast Response Time: 500 µs operate/reset response.
-
IP67 Protection: Dust-tight and waterproof housing.
-
Adjustable Sensitivity: Built-in potentiometer for fine adjustment.
-
Pre-Wired Connection: Integrated 2 m cable for installation flexibility.
The E3S-BR31 delivers the reliability and precision required for industrial object detection and positioning applications.
