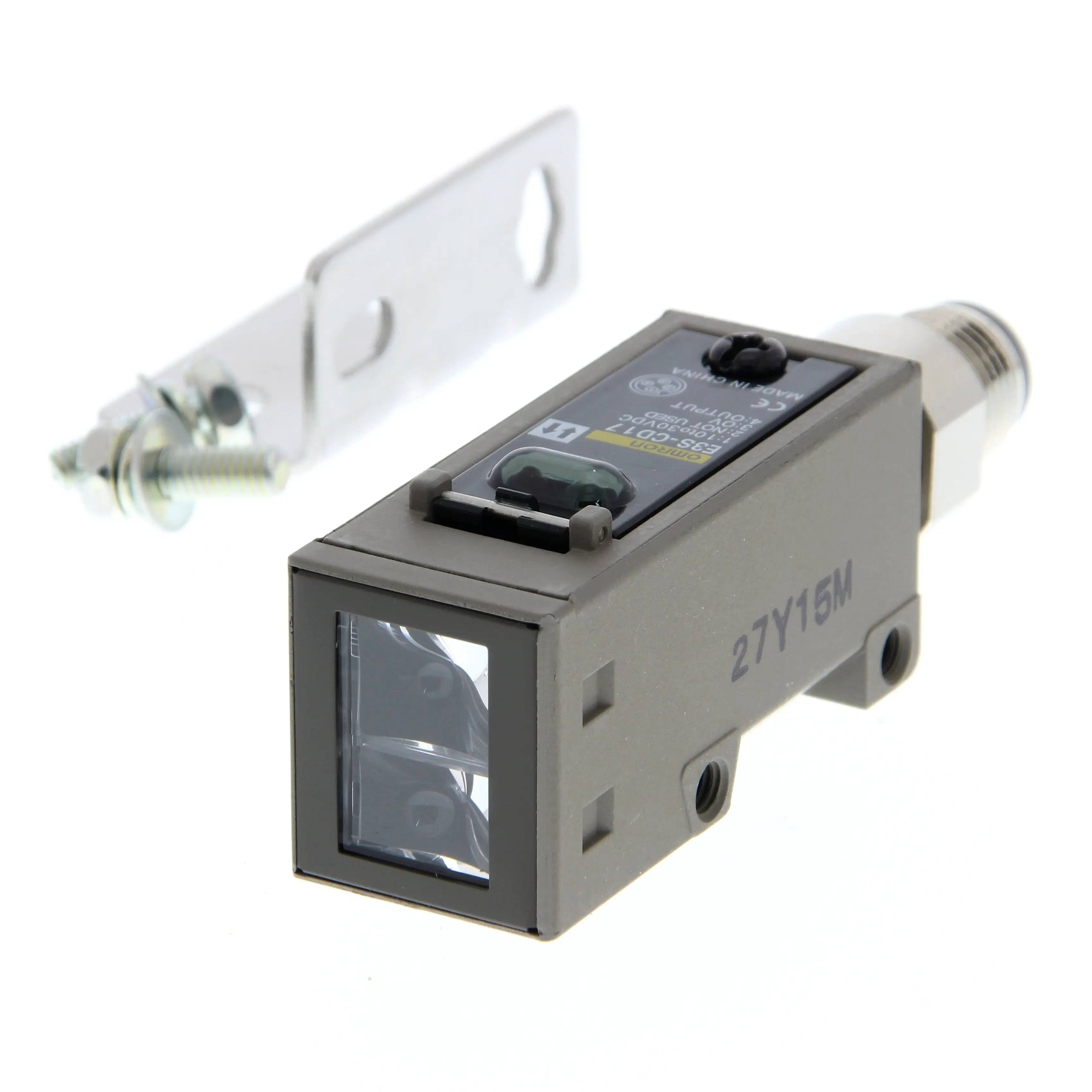

E3S-CD16 | Omron 700mm Diffuse Photoelectric Sensor NPN/PNP M12
- Regular price
- $407.00
- Sale price
- $407.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3S-CD16
Description
The Omron E3S-CD16 is a diffuse-reflective photoelectric sensor with a sensing range of up to 700 mm for reliable object detection in industrial automation systems. Operating on 10–30 VDC, it features selectable NPN/PNP output and supports both DARK-ON and LIGHT-ON modes. Its zinc die-cast housing and IP67 rating ensure dependable performance in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | E3S-CD16 |
| Subcategory | Diffuse Photoelectric Sensors |
| Series | E3S Series |
| Sensing Method | Diffuse-Reflective |
| Sensing Range | 0.7 m (700 mm) |
| Output Configuration | NPN / PNP Selectable |
| Operation Modes | DARK-ON, LIGHT-ON |
| Supply Voltage | 10–30 VDC |
| Max. Operating Current | 0.1 A |
| Response Time | < 1 ms |
| Connection Type | M12 Male Connector (Plug-In) |
| Wiring | 3-Wire DC |
| IP Rating | IP67 |
| Operating Temperature | -25°C to 55°C |
| Body Material | Zinc Die-Cast |
| Resistance | Oil-Resistant Construction |
| Mounting Orientation | Horizontal |
| Weight | 0.122 kg |
Information About E3S-CD16
The E3S-CD16 is part of Omron’s E3S series of rectangular photoelectric sensors designed for factory automation and material handling applications. Utilizing diffuse-reflective sensing technology, it detects objects directly without requiring a separate reflector. The sensor supports dual output configuration (NPN/PNP) and selectable operation modes, providing flexibility for integration into various PLC control systems. With oil resistance, fast response time, and an M12 male connector, it is suited for installation in machinery, packaging lines, and conveyor systems.
Key Features:
- 700 mm Sensing Range: Provides reliable short- to mid-range object detection without external reflectors.
- Diffuse-Reflective Operation: Detects objects based on reflected light from the target surface.
- Selectable NPN/PNP Output: Ensures compatibility with different PLC input configurations.
- DARK-ON / LIGHT-ON Modes: Allows configuration based on application requirements.
- 10–30 VDC Supply Voltage: Compatible with standard industrial DC power systems.
- IP67 Protection Rating: Sealed against dust and water ingress for harsh environments.
- Zinc Die-Cast Housing: Offers mechanical durability and resistance to industrial conditions.
- Fast Response Time (<1 ms): Enables accurate detection of moving objects.
The E3S-CD16 delivers the reliability and precision required for industrial photoelectric sensing and machine automation applications.
