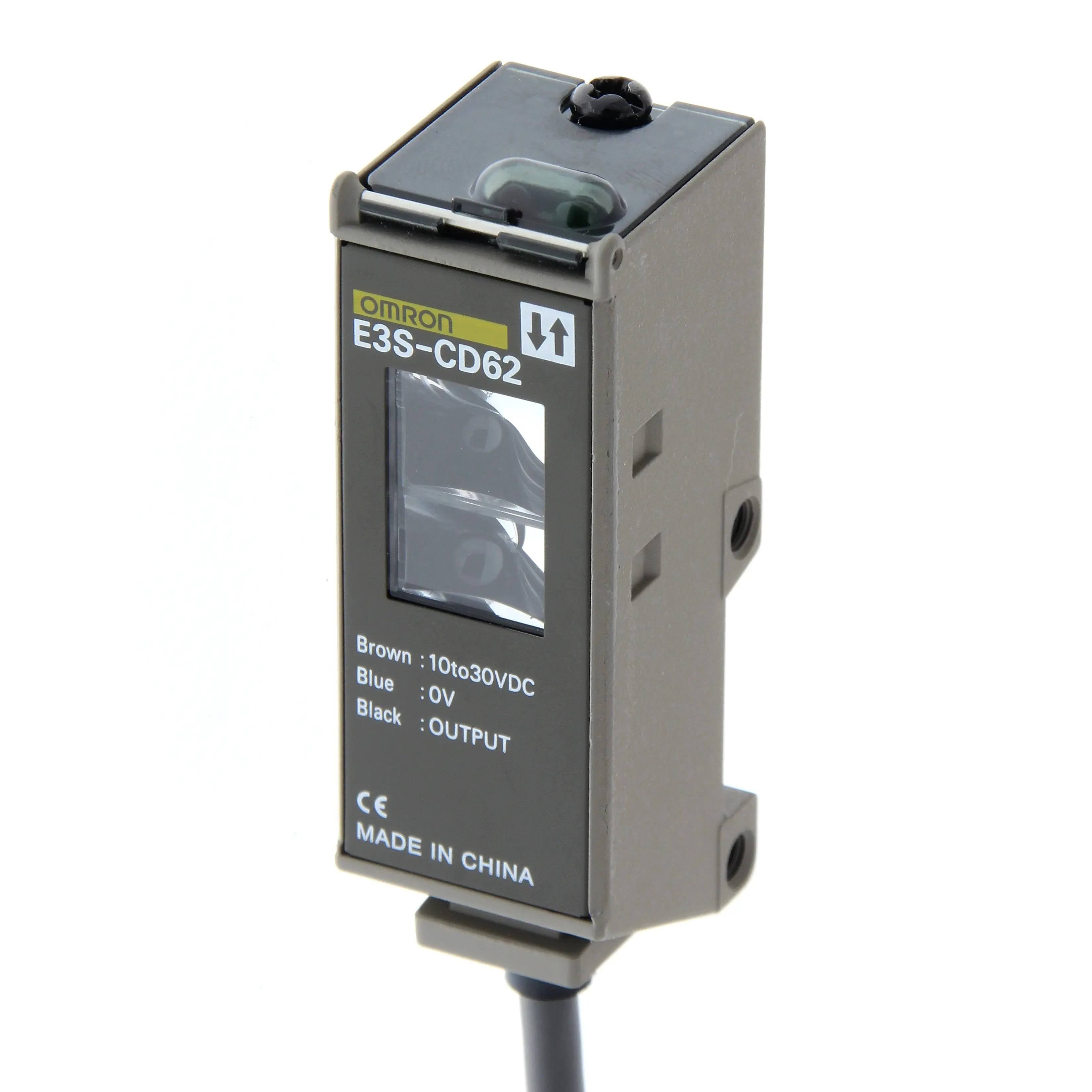

E3S-CD62 | Omron Diffuse-Reflective Photoelectric Sensor 2m IP67
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3S-CD62
Description
The Omron E3S-CD62 is a square-type diffuse-reflective photoelectric sensor designed for object detection up to 2 meters. It utilizes an infrared LED light source and operates on a 10 to 30 VDC power supply. The sensor features selectable NPN/PNP open-collector output and Light-ON/Dark-ON operating modes for flexible integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3S-CD62 |
| Subcategory | Photoelectric |
| Series | E3S |
| Sensing Method | Diffuse-Reflective |
| Sensing Distance | 2 m (White paper 300 × 300 mm) |
| Light Source | Infrared LED (850 nm) |
| Supply Voltage | 10–30 VDC |
| Current Consumption | 40 mA max. |
| Output Type | NPN/PNP Open Collector (Selectable) |
| Max Output Current | 100 mA |
| Operating Mode | Light-ON / Dark-ON Selectable |
| Response Time | 2 ms max. |
| Protection Rating | IP67, Oil-Proof, NEMA 6P (Indoor) |
| Operating Temperature | -25°C to 55°C |
| Connection Method | Pre-Wired (2 m Cable) |
| Housing Material | Zinc Die-Cast |
| Weight | 110 g |
Information About E3S-CD62
The E3S-CD62 is part of the Omron E3S series of industrial photoelectric sensors engineered for reliable detection in harsh environments. It employs a diffuse-reflective sensing method and can detect a 300 × 300 mm white target at distances up to 2 meters. The unit includes selectable NPN or PNP output configuration and supports Light-ON or Dark-ON operation modes. Built with a zinc die-cast housing and rated IP67, it is designed for industrial environments requiring oil resistance and vibration durability.
Key Features:
-
Diffuse-Reflective Sensing: Detects objects using reflected infrared light.
-
2 m Sensing Distance: Suitable for detection of white paper targets at extended range.
-
Infrared LED Light Source: 850 nm wavelength for stable detection performance.
-
Selectable NPN/PNP Output: Flexible open-collector output configuration.
-
Light-ON/Dark-ON Modes: Configurable operating mode for application flexibility.
-
IP67 Protection Rating: Dust-tight and waterproof design.
-
10–30 VDC Operation: Wide DC supply voltage compatibility.
-
Pre-Wired Cable: 2 m integrated cable for straightforward installation.
The E3S-CD62 delivers the reliability and precision required for industrial object detection and automation sensing applications.
