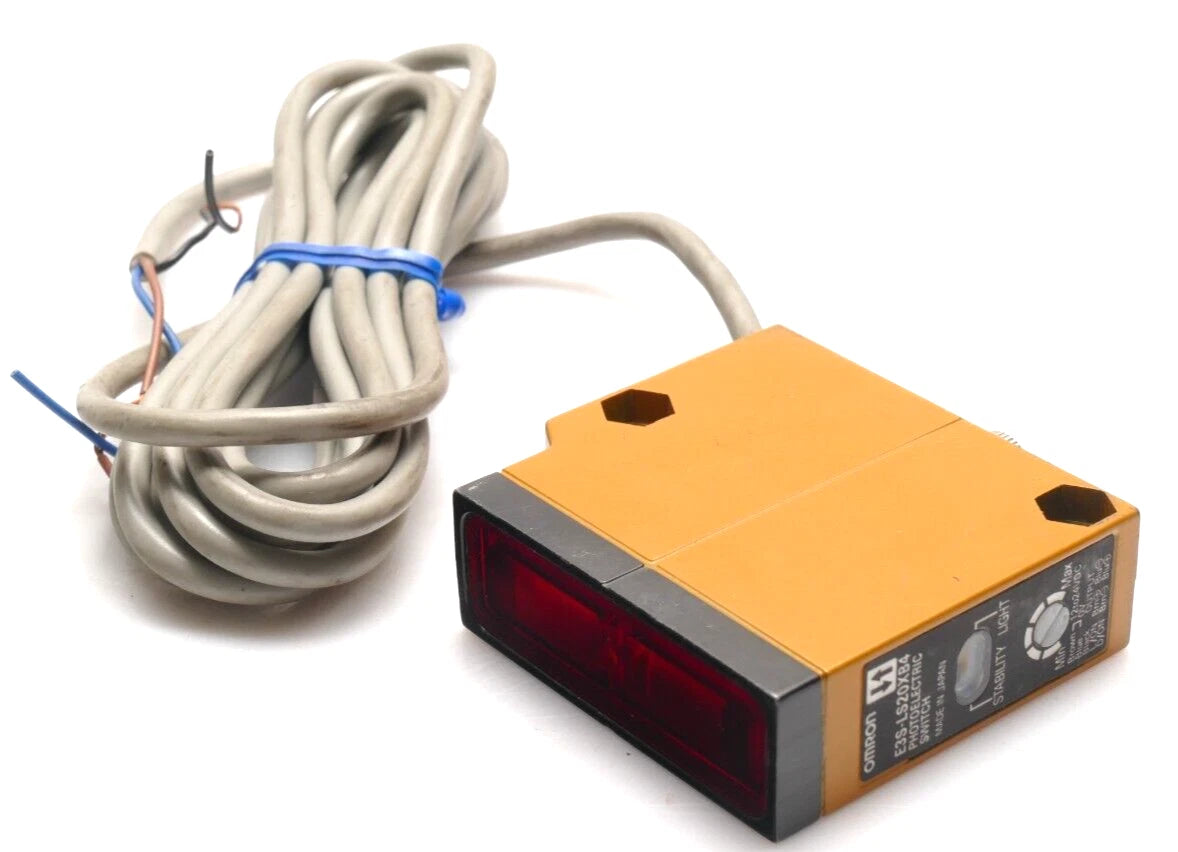

E3S-LS20XB4 | Omron E3S-LS Limited Reflective Photoelectric Sensor 50–250mm
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3S-LS20XB4
Description
The Omron E3S-LS20XB4 is a limited reflective photoelectric sensor from the E3S-LS Series designed for precise object detection within a 50 to 250 mm adjustable sensing range. It operates on a 12–24 VDC supply and features selectable PNP output modes for Dark-ON or Light-ON operation. With a fast 1 ms response time and infrared light source, this sensor ensures reliable detection in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | E3S-LS20XB4 |
| Subcategory | Photoelectric Sensors |
| Series | E3S-LS |
| Sensing Method | Reflective (Limited Reflective Type) |
| Sensing Distance | 50 mm to 250 mm (Adjustable) |
| Light Source | Infrared |
| Supply Voltage | 12–24 VDC |
| Output Configuration | PNP (Dark-ON/Light-ON Selectable) |
| Response Time | 1 ms |
| Connection Method | Pre-Wired (Cable) |
| Ingress Protection | IP67, IEC 144, NEMA 1, 3, 4X, 6, 12 |
| Adjustment Type | Adjustable |
| Operating Temperature | -25°C to 55°C |
| Weight | Approx. 0.2 kg |
Information About E3S-LS20XB4
The E3S-LS20XB4 is a pre-wired reflective photoelectric sensor engineered for stable detection of objects within defined distance limits. Utilizing an infrared light source and adjustable sensitivity, it provides accurate sensing while minimizing background interference. The unit supports a 12–24 VDC supply voltage and offers selectable PNP output configuration for flexible integration into PLC control systems. Designed with IP67 protection and compliant with IEC 144 and NEMA ratings, it is suitable for operation in harsh industrial conditions.
Key Features:
- Limited Reflective Sensing Method: Detects objects within a controlled distance range to reduce background reflection.
- 50–250 mm Adjustable Range: Allows precise tuning of sensing distance.
- PNP Output (Selectable Dark-ON/Light-ON): Provides flexible output logic configuration.
- 12–24 VDC Operation: Compatible with standard industrial power supplies.
- Fast 1 ms Response Time: Ensures reliable detection in high-speed applications.
- Infrared Light Source: Delivers stable sensing performance.
- IP67 Protection Rating: Resistant to dust and water ingress for industrial use.
- Pre-Wired Connection: Simplifies installation and panel integration.
The E3S-LS20XB4 delivers the reliability and precision required for accurate object detection in industrial automation and material handling systems.
