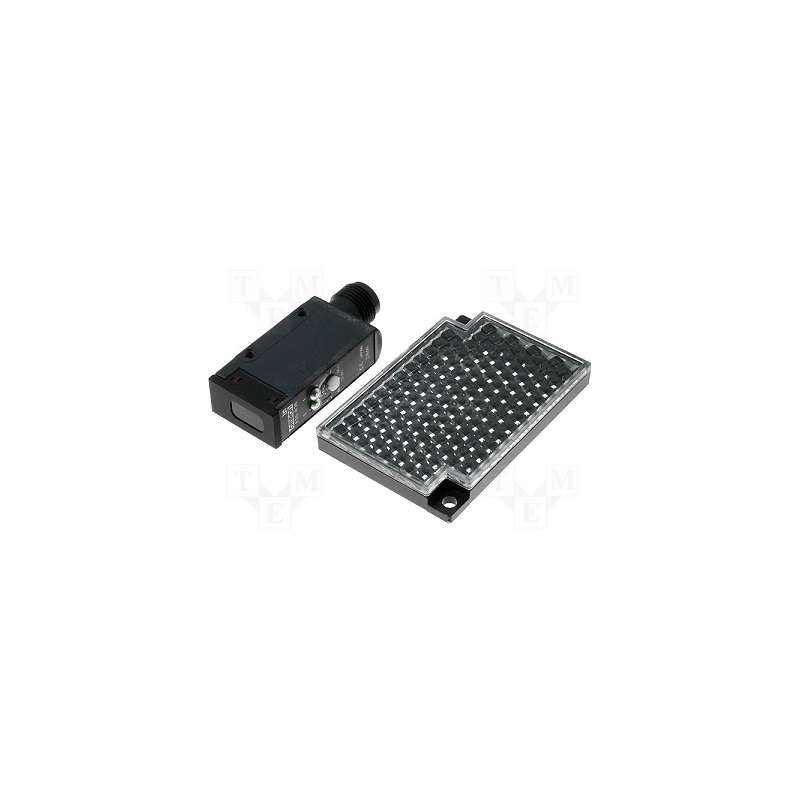

E3S-R36 | Omron E3S Retro-Reflective Photoelectric Sensor PNP 10–30VDC IP67
- Regular price
- $584.00
- Sale price
- $584.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E3S-R36
Description
The Omron E3S-R36 Photoelectric Sensor is a square-type, retro-reflective photoelectric sensor with an M.S.R. (Mirror Surface Rejection) function designed for precise object detection in industrial automation systems. Operating on 10–30 VDC, it uses a red LED light source and provides a PNP open-collector output, supporting both Light-ON and Dark-ON modes for versatile application control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E3S-R36 |
| Subcategory | Photoelectric Sensors |
| Series | E3S |
| Shape | Square type |
| Sensing Method | Retro-reflective with M.S.R. function |
| Sensing Distance | 0.1–1 m (with E39-R1 reflector) |
| Standard Sensing Object | Opaque object, 75 mm dia., 0.7 mm thickness |
| Light Source | Red LED (660 nm) |
| Output Type | PNP open collector |
| Output Rating | 30 VDC max., 100 mA max., residual voltage 1 V max. |
| Operation Mode | Light-ON / Dark-ON selectable |
| Response Time | ≤1 ms (operate/reset) |
| Power Supply Voltage | 10–30 VDC ±10% ripple (p-p) |
| Current Consumption | 30 mA max. |
| Protective Circuits | Output short-circuit protection, reverse-polarity protection |
| Sensitivity Adjustment | 2-turn endless potentiometer |
| Ambient Illuminance | 5,000 lx (incandescent), 10,000 lx (sunlight) |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 35–85% RH (non-condensing) |
| Storage Humidity | 35–95% RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude (X, Y, Z – 2h each) |
| Shock Resistance | 500 m/s², 3 times each (X, Y, Z) |
| Insulation Resistance | ≥20 MΩ at 500 VDC |
| Dielectric Strength | 1000 VAC for 1 minute |
| Degree of Protection | IP67 (IEC standard) |
| Connection Method | M12 connector |
| Indicators | Red LED (Light), Green LED (Stability) |
| Material | Case: PBT; Lens: Polyarylate; Bracket: SUS304 stainless steel |
| Accessories Included | Mounting bracket, screws, close-mounting plate, sensitivity driver, reflector, instruction manual |
| Weight | Approx. 60 g (with packaging) |
Information About E3S-R36
The E3S-R36 is part of Omron’s E3S Series, engineered for reliable detection of opaque objects and reflective materials. When used with the E39-R1 reflector, it achieves a sensing distance of 0.1 to 1 meter, maintaining accuracy even on highly reflective or transparent surfaces due to its advanced M.S.R. optical filtering. The sensor includes short-circuit and reverse-polarity protection, ensuring long-term durability in demanding industrial environments. Designed with a compact, IP67-rated housing, it withstands exposure to dust, vibration, and moisture. Its integrated red and green status indicators simplify setup and troubleshooting, while the M12 connector allows for quick installation and maintenance.
Key Features:
- Retro-Reflective Sensing: Detects objects using a built-in M.S.R. (Mirror Surface Rejection) function for reliable operation near reflective surfaces.
- Wide Sensing Range: Detects objects at distances from 0.1 to 1 m when paired with the E39-R1 reflector.
- Fast Response Time: Operate or reset response within 1 ms for high-speed detection.
- Selectable Modes: Light-ON or Dark-ON operation selectable for flexible control integration.
- Robust Protection: Includes short-circuit and reverse-polarity protection circuits.
- High Durability: IP67-rated PBT housing resists dust, vibration, and water ingress.
- Easy Installation: M12 connector design for fast connection and maintenance.
- Status Indicators: Red LED (light indicator) and green LED (stability indicator) for quick visual feedback.
The E3S-R36 delivers the reliability and precision required for automated object detection in industrial sensing applications.
