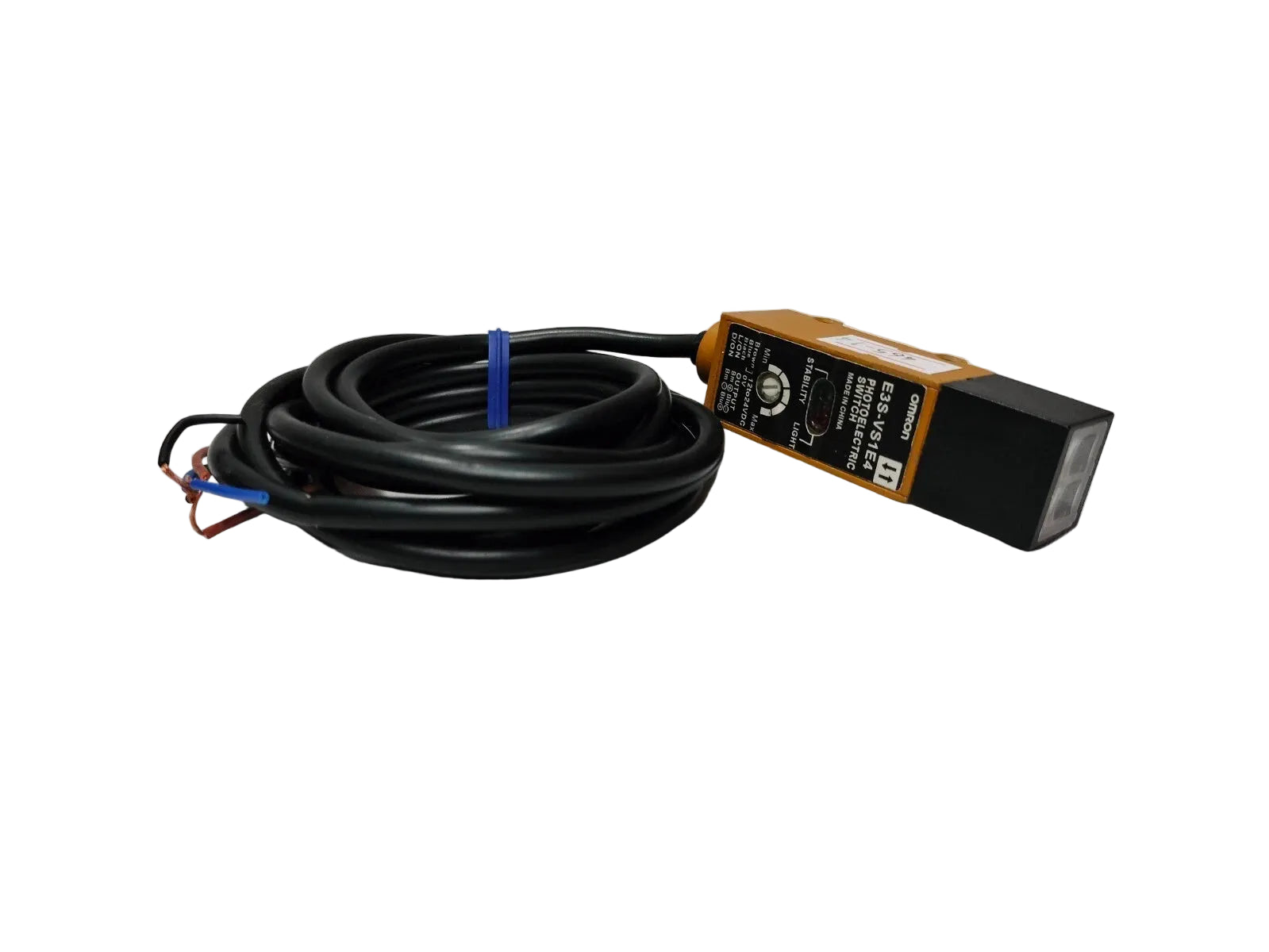

E3S-VS1E4 | Omron Diffuse Reflective Photoelectric Sensor 12mm NPN
- Regular price
- $297.00
- Sale price
- $297.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3S-VS1E4
Description
The Omron E3S-VS1E4 is a diffuse reflective photoelectric sensor designed for short-range detection up to 12 mm. It operates on 12 to 24 VDC and provides an NPN output with selectable Light-ON or Dark-ON operation. This compact sensor is used in precision positioning and object detection applications within industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3S-VS1E4 |
| Subcategory | Photoelectric |
| Series | E3S-VS |
| Sensing Method | Diffuse Reflective |
| Sensing Distance | 12 mm |
| Light Source | Green LED (565 nm) |
| Supply Voltage | 12 to 24 VDC |
| Output Type | NPN Open Collector |
| Response Time | 1 ms max. |
| Operation Mode | Light-ON/Dark-ON Selectable |
| Connection Method | Pre-Wired Cable (2 m) |
| Ingress Protection | IP67 |
| Operating Temperature | -25°C to +55°C |
| Weight | 0.04 lbs |
Information About E3S-VS1E4
The E3S-VS1E4 belongs to the Omron E3S-VS series of compact industrial photoelectric sensors. It uses a green LED light source and a reflective diffuse sensing method to detect objects without requiring a separate reflector. The sensor is housed in a square-type enclosure rated IP67 for protection against dust and water ingress. Designed with a 3-wire configuration and pre-wired cable connection, it integrates easily into machine control and inspection systems.
Key Features:
-
Diffuse Reflective Sensing: Detects objects directly without external reflectors.
-
12 mm Sensing Distance: Suitable for close-range detection applications.
-
NPN Open-Collector Output: Supports up to 30 VDC load switching.
-
Selectable Light-ON/Dark-ON Mode: Flexible output configuration.
-
12–24 VDC Supply Voltage: Compatible with standard DC control systems.
-
1 ms Response Time: Enables rapid detection in automated processes.
-
IP67 Protection Rating: Designed for industrial washdown and dusty environments.
-
2 m Pre-Wired Cable: Simplifies installation and wiring.
The E3S-VS1E4 delivers the reliability and precision required for short-range object detection in industrial automation systems.
