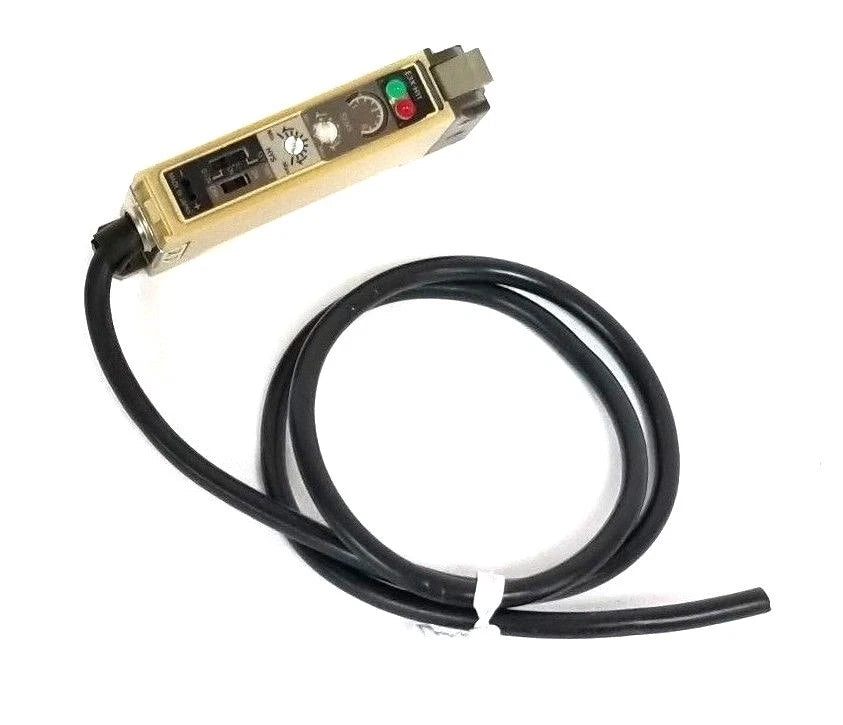

E3X-H11 | Omron Fiber Optic Amplifier NPN 10–30VDC
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3X-H11
Description
The Omron E3X-H11 is a high-performance fiber optic photoelectric amplifier designed for use with E32 series fiber optic cables. It operates on a 10–30 VDC supply and provides an NPN open-collector output for industrial control systems. The unit features extended sensing capability and fast response for precise detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3X-H11 |
| Subcategory | Photoelectric |
| Series | E3X |
| Amplifier Type | Fiber Optic Sensor Amplifier |
| Compatible Fiber Series | E32 Series |
| Supply Voltage | 10 – 30 VDC |
| Current Consumption | 35 mA max |
| Output Type | NPN Open Collector |
| Max Load | 100 mA at 30 VDC |
| Response Time | 1 ms max |
| Timer Function | 40 ms OFF-Delay (Selectable) |
| Enclosure Rating | IP66 |
| Operating Temperature | -25°C to +55°C |
| Connection Method | Prewired 2 m Cable |
| Weight | 0.20 lbs |
Information About E3X-H11
The E3X-H11 is part of the Omron E3X series of fiber optic sensor amplifiers. It is designed to connect with compatible E32 fiber optic sensing heads to provide reliable object detection in compact or confined spaces. The amplifier incorporates an 8-turn sensitivity adjustment with position indicator and offers Light-ON/Dark-ON selectable operation modes. With IP66 enclosure protection and DIN rail mounting capability, it is suited for industrial automation panels requiring stable and high-speed sensing performance.
Key Features:
-
Fiber Optic Amplifier: Designed for use with E32 series fiber optic cables.
-
10–30 VDC Operation: Compatible with standard industrial DC supplies.
-
NPN Open-Collector Output: Rated 30 VDC, 100 mA max load.
-
Fast Response Time: 1 ms maximum switching response.
-
8-Turn Sensitivity Adjustment: Fine-tuning with position indicator.
-
OFF-Delay Timer: Fixed 40 ms delay, switch selectable.
-
IP66 Protection Rating: Dust-tight enclosure with cover installed.
-
DIN Rail Mounting: Slim body for control panel integration.
The E3X-H11 delivers the reliability and precision required for high-speed fiber optic sensing in industrial automation systems.
