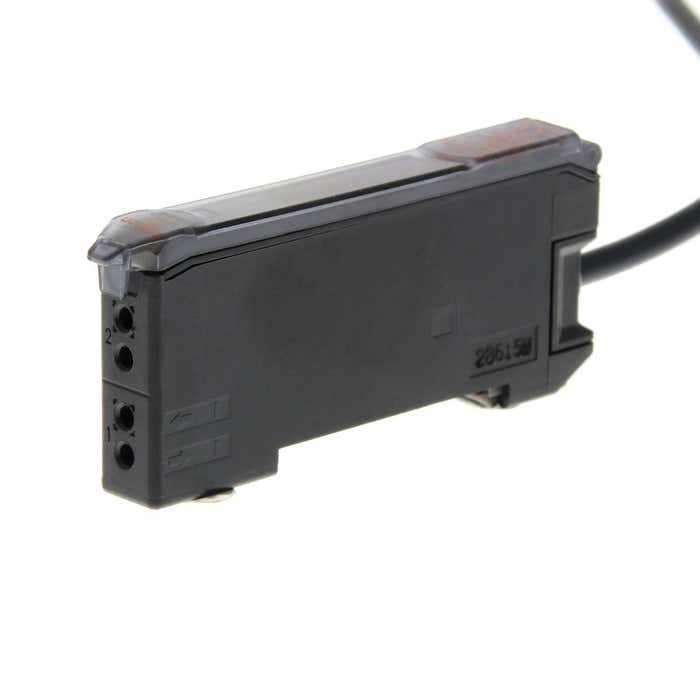

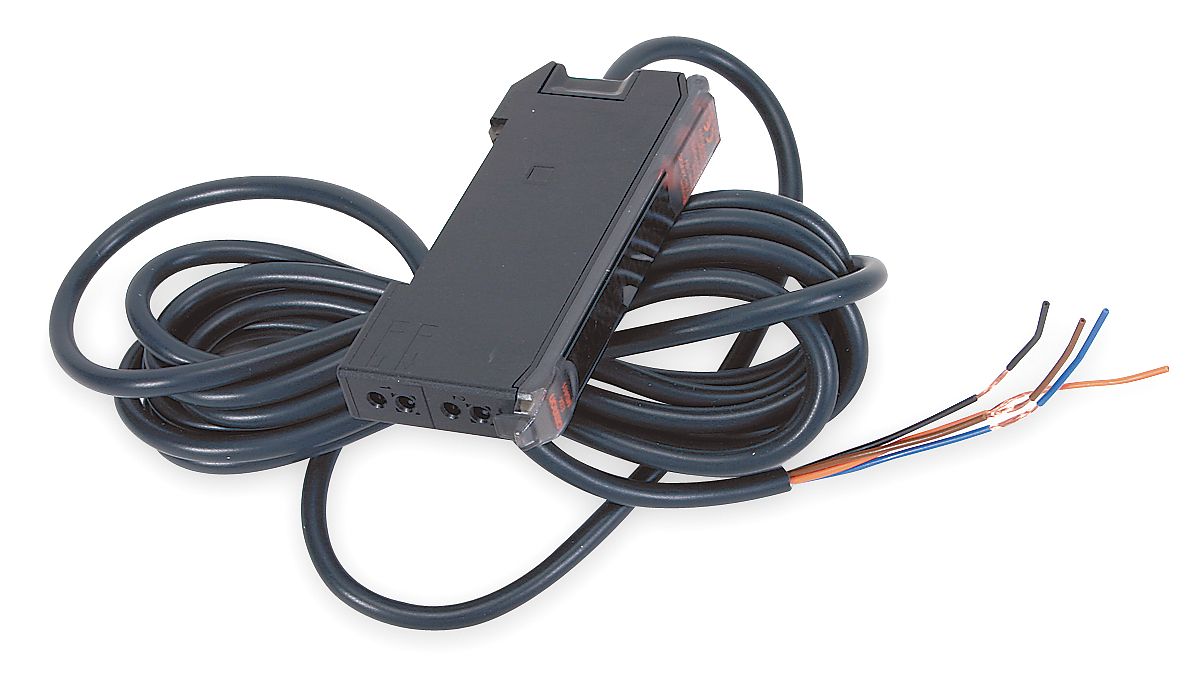

E3X-MDA11 | Omron 2-Channel Photoelectric Amplifier 12-24VDC
- Regular price
- $369.00
- Sale price
- $369.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E3X-MDA11
Description
The E3X-MDA11 is a dual-channel photoelectric fiber amplifier with high-speed response and AND/OR logic functions. Operating on 12–24 VDC, it supports two NPN outputs and is ideal for advanced sensing control.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Sensors & Switches
|
| Part Number | E3X-MDA11 |
| Subcategory | Sensor Accessory |
| Series | E3X-MDA Series |
| Input Channels | 2 (Dual Fiber) |
| Output Type | 2 × NPN |
| Logic Functions | AND / OR |
| Response Time | 130 μs |
| Supply Voltage | 12–24 VDC |
| Current Consumption | 45 mA |
| Mounting Type | DIN Rail |
| Operating Temperature Range | –25°C to 55°C |
| Cable Length | 2 meters |
| Weight | 0.24 lbs |
Information About E3X-MDA11
The E3X-MDA11 belongs to Omron’s E3X-MDA series of twin-output photoelectric amplifiers, designed for fiber optic sensor systems requiring fast and flexible logic processing. It supports two independent fiber inputs and includes integrated logic operations (AND/OR), allowing multiple sensing conditions to be evaluated in one unit. With a response time as fast as 130 μs, it is highly suitable for high-speed detection applications such as parts verification, positioning, and object counting. The amplifier features NPN transistor outputs for direct connection to PLCs or other control logic circuits. It is powered by a 12–24 VDC supply and mounts easily onto DIN rails for compact panel integration in automated systems.
Key Features:
- Dual Fiber Input Channels: Supports two independent sensing inputs for advanced detection scenarios in compact applications.
- AND/OR Logic Functions: Built-in processing allows flexible logic combinations without external relays or logic modules.
- High-Speed Response Time (130 μs): Enables fast signal processing required in high-speed sorting, packaging, or inspection systems.
- NPN Output Type: Two independent NPN transistor outputs provide reliable switching for digital controllers or PLC inputs.
- 12–24 VDC Operation: Compatible with common industrial control voltage supplies for seamless system integration.
- DIN Rail Mountable: Designed for standard panel installation with secure and easy-to-access wiring configuration.
- Compact and Lightweight Design: Saves space in control cabinets while delivering robust sensing performance.
- Low Power Consumption (45 mA): Efficient design minimizes power draw and heat buildup in tightly packed enclosures.
- Wide Operating Temperature Range: Functions reliably between –25°C and 55°C in varied industrial environments.
- 2 m Pre-Wired Cable: Allows flexible installation without the need for additional connectors.
The E3X-MDA11 integrates dual input logic, high-speed response, and compact DIN mounting to deliver precise sensing performance in space-efficient automation setups.
