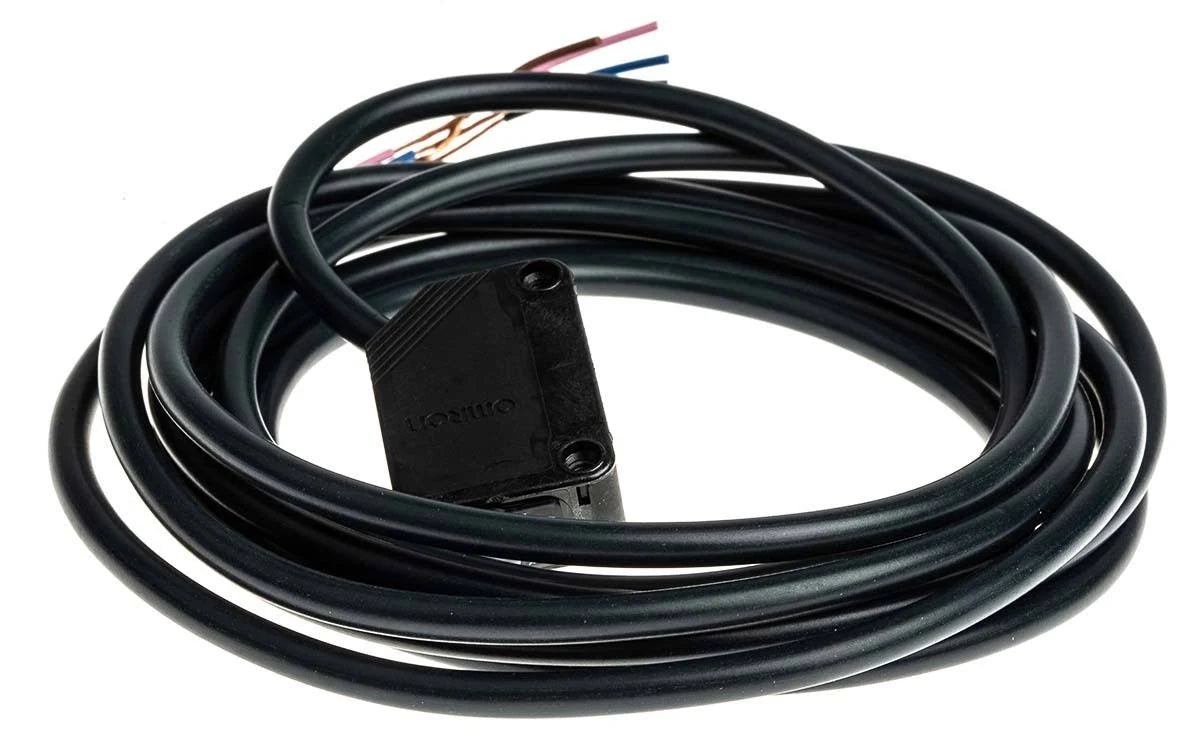

E3Z-LS81 | Omron Photoelectric Sensor 20–200mm PNP 12–24VDC IP67
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3Z-LS81
Description
The Omron E3Z-LS81 is a compact diffuse reflective photoelectric sensor designed for adjustable distance detection from 20 mm to 200 mm. It features a built-in amplifier and PNP output with selectable Light-ON/Dark-ON operation. This sensor is intended for reliable object detection in industrial automation systems operating on 12 to 24 VDC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E3Z-LS81 |
| Subcategory | Level Switch |
| Sensing Method | Diffuse Reflective |
| Sensing Distance | 20 mm to 200 mm (Adjustable) |
| Light Source | Red LED (680 nm) |
| Output Type | PNP Open Collector |
| Operation Mode | Light-ON / Dark-ON Selectable |
| Supply Voltage | 12 to 24 VDC |
| Response Time | 1 ms max |
| Adjustment Type | Five-Turn Endless Adjuster |
| Connection Method | Pre-wired Cable (2 m) |
| Ingress Protection | IP67 |
| Operating Temperature | -25°C to +55°C |
| Dimensions (L×W×H) | 20 mm × 10.8 mm × 33.1 mm |
| Weight | 0.02 lbs |
Information About E3Z-LS81
The E3Z-LS81 is part of Omron’s E3Z series of photoelectric sensors, known for their compact housing and stable detection performance. It uses a red LED light source and a five-turn endless adjuster to fine-tune sensing distance within the 20 mm to 200 mm range. The unit includes a built-in amplifier, eliminating the need for an external control module and simplifying installation. Designed with an IP67-rated enclosure and a 2-meter pre-wired cable, it is suitable for use in industrial environments where resistance to dust and moisture is required.
Key Features:
-
Adjustable Sensing Range: Detection distance adjustable from 20 mm to 200 mm using a five-turn adjuster.
-
Diffuse Reflective Method: Detects objects directly without requiring a separate reflector.
-
PNP Output Configuration: Open collector PNP output rated for industrial control systems.
-
Selectable Operation Mode: Light-ON or Dark-ON switching selectable via built-in setting.
-
Built-In Amplifier: Integrated amplification reduces external wiring and simplifies setup.
-
Red LED Light Source (680 nm): Provides stable and visible alignment during installation.
-
IP67 Protection Rating: Dust-tight and protected against temporary water immersion.
-
Wide Operating Temperature Range: Reliable operation from -25°C to +55°C.
The E3Z-LS81 delivers the reliability and precision required for compact object detection and positioning tasks in industrial automation systems.
