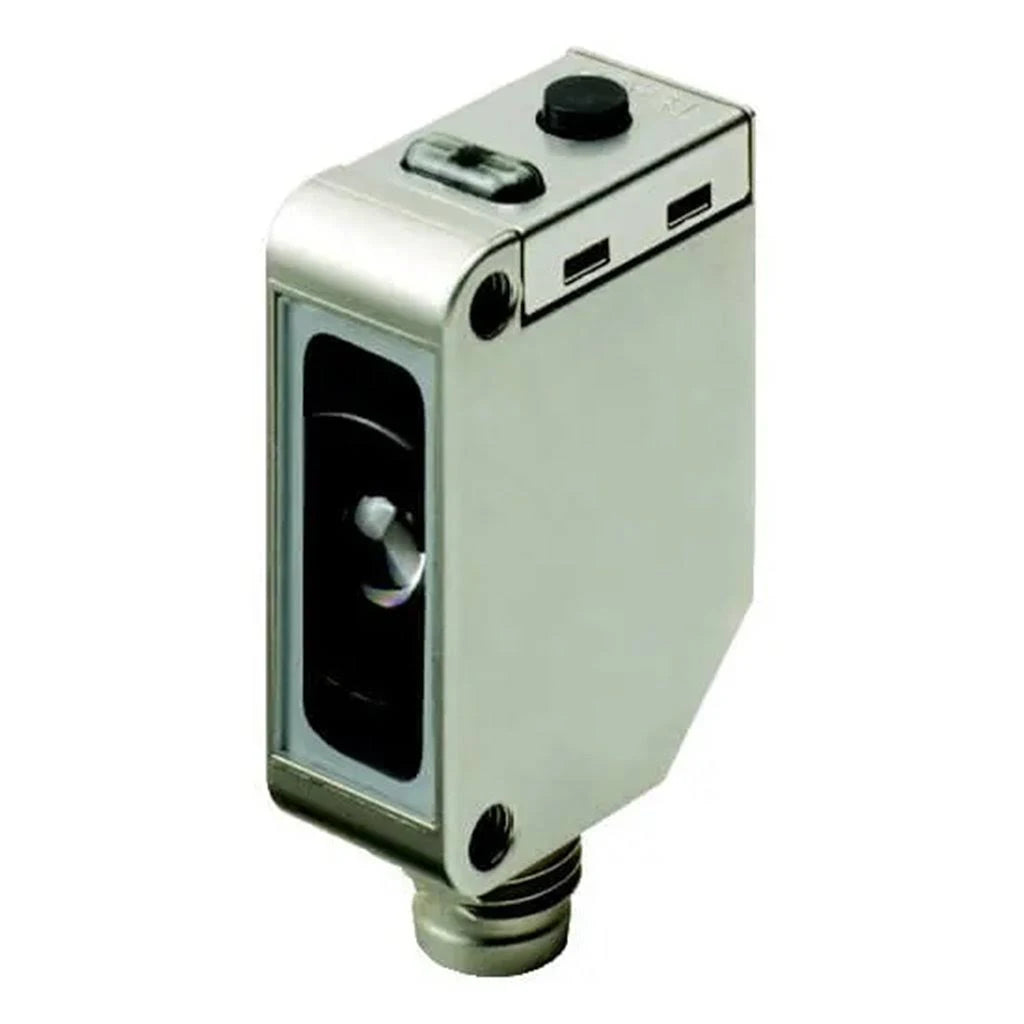

E3ZM-V66 | Omron Diffuse-Reflective Mark Detection Photoelectric Sensor White LED Teaching Mode NPN Output IP67/IP69K
- Regular price
- $257.00
- Sale price
- $257.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E3ZM-V66
Description
The Omron E3ZM-V66 is a diffuse-reflective photoelectric sensor designed for precise mark detection in industrial automation systems. The E3ZM-V66 operates with a white LED light source and provides short-range sensing at 10 to 14 mm with fast response performance. It features an NPN open-collector output and an M8 connector interface for compact machine installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Automation Control Modules |
| Part Number | E3ZM-V66 |
| Subcategory | Photoelectric Sensors |
| Sensor Type | Diffuse-Reflective Mark Detection Sensor |
| Series | E3ZM Series |
| Sensing Distance | 10–14 mm (12 mm Nominal) |
| Spot Size | 2 mm Diameter Max |
| Light Source | White LED (450–700 nm) |
| Supply Voltage Range | 10–30 VDC |
| Current Consumption | 25 mA Max |
| Control Output | NPN Open Collector |
| Output Rating | 30 VDC Max, 100 mA Max |
| Response Time | 50 µs Max |
| Operation Mode | Teaching Configuration |
| Connection Method | M8 Connector |
| Connector Type | 4-Pin |
| Housing Material | SUS316L Stainless Steel |
| Degree of Protection | IP67 / IP69K |
| Operating Temperature Range | -40°C to 60°C |
| Product Dimensions (H × W × D) | 31 mm × 9.1 mm × 21 mm |
| Weight | Approx. 35 g |
Information About E3ZM-V66
The E3ZM-V66 is part of Omron’s E3ZM series of rugged industrial photoelectric sensors engineered for reliable detection of small marks and contrast differences. It uses a teaching-based sensitivity setting method to optimize detection performance for specific target materials and surfaces. The sensor operates on 10–30 VDC supply voltage and includes protective circuits for short-circuit and polarity reversal resistance. With SUS316L stainless steel housing and IP67/IP69K protection, it is designed for harsh environments such as packaging lines, labeling systems, and washdown automation applications.
Key Features:
-
Diffuse-Reflective Mark Detection Sensor: Designed for detecting small contrasts and printed marks in automation systems.
-
Short Sensing Distance Range: Provides detection between 10 and 14 mm for close-range positioning tasks.
-
White LED Light Source Output: Uses 450–700 nm illumination for accurate mark recognition.
-
Teaching Sensitivity Adjustment: Configurable detection setup through teaching operation for target optimization.
-
NPN Open-Collector Output Interface: Supports PLC-compatible switching up to 100 mA load current.
-
Ultra-Fast Response Performance: Operate/reset response time rated at 50 µs maximum.
-
IP67/IP69K Protection Rating: Suitable for washdown and harsh industrial environmental exposure.
-
Stainless Steel Industrial Housing: SUS316L construction supports corrosion resistance and durability.
The E3ZM-V66 delivers the reliability and precision required for high-speed mark detection sensing in industrial automation environments.
