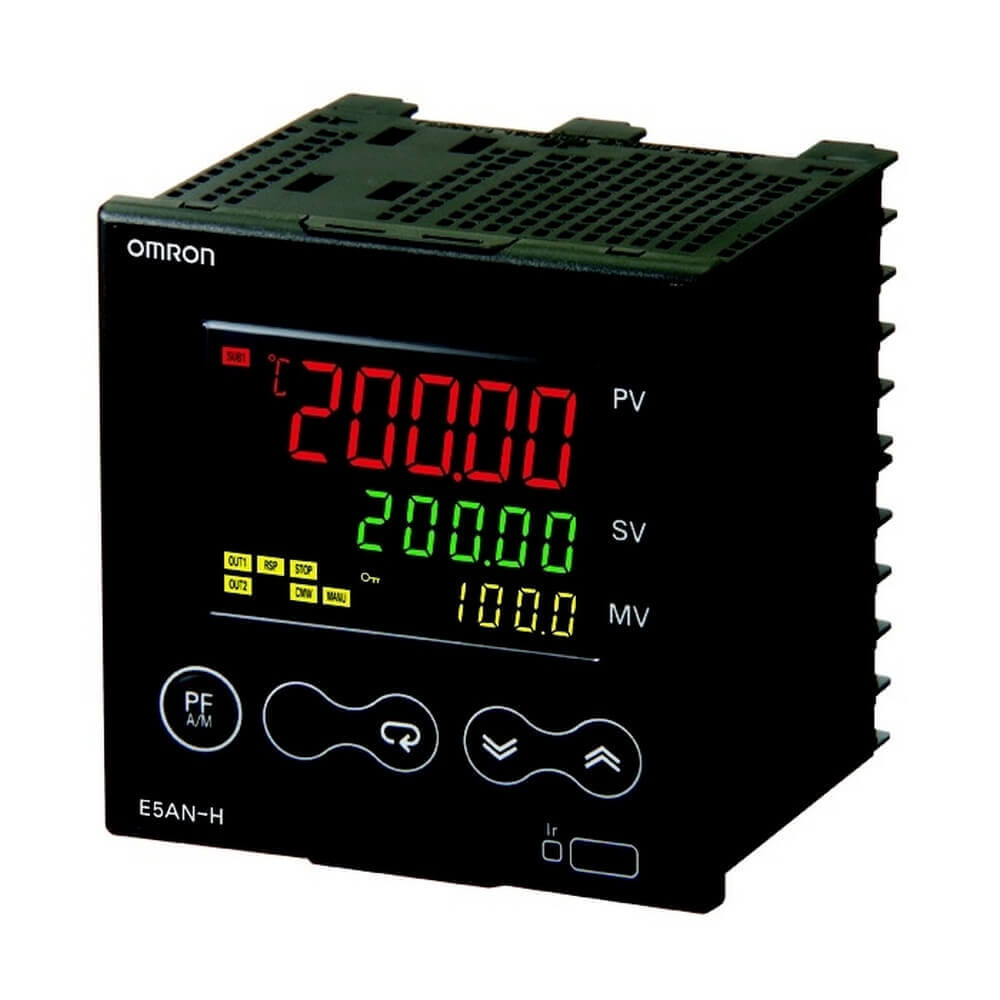

E5AN-HAA2HBM-500 | Omron E5AN 1/4 DIN PID Temperature Controller 100–240V AC
- Regular price
- $695.00
- Sale price
- $695.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5AN-HAA2HBM-500
Description
The Omron E5AN-HAA2HBM-500 Temperature Controller is a 1/4 DIN digital process controller designed for high-precision temperature regulation in industrial systems. Operating on 100–240 VAC, it supports a wide range of thermocouple, RTD, and analog inputs and provides PID, ON/OFF, and alarm control with versatile output configurations including relay, voltage pulse, and linear current or voltage outputs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5AN-HAA2HBM-500 |
| Subcategory | Temperature Controllers |
| Series | E5AN |
| Type | Digital Temperature Controller |
| Mounting Type | Panel mount, 1/4 DIN (96 × 96 mm) |
| Control Loops | 1 |
| Input Types | Thermocouple (B, C, E, J, K, L, N, P, R, S, T, U), RTD (Pt100, JPt100), Analog (0–10 V, 0–20 mA, 1–5 V, 4–20 mA) |
| Temperature Range | -200°C to +2300°C |
| Control Methods | ON/OFF, PID, HB/HS heater alarm |
| Outputs | Relay, Voltage pulse, Linear current, Linear voltage |
| Alarm Outputs | 2 |
| Event Inputs | 2 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Terminal Type | Screw terminals |
| Display Type | Digital LED display |
| Enclosure Rating | IP20 (rear), IP66 (front panel when mounted) |
| Operating Temperature | -10°C to +55°C |
| Humidity Range | 25–85% RH (non-condensing) |
| Accuracy | ±0.1% of full scale |
| Dimensions (H × W × D) | 96 mm × 96 mm × 78 mm |
| Weight | 0.9 lb (approx.) |
| Certifications | CE, UL, CSA, RoHS, REACH |
| Country of Origin | Japan |
| Application | Industrial process heating and cooling control |
Information About E5AN-HAA2HBM-500
The E5AN-HAA2HBM-500 is part of the Omron E5AN Series, a family of advanced temperature controllers engineered for high performance and flexibility. It supports multiple input types such as thermocouples (B, K, J, R, S, T, etc.), RTDs (Pt100, JPt100), and linear analog signals (0–10 V, 4–20 mA) for precise temperature monitoring up to 2300°C. Equipped with PID control algorithms and HB/HS heater alarms, it ensures stable and responsive control in demanding heating applications. The controller includes two event inputs, two alarm outputs, and a single control loop, making it ideal for industrial ovens, plastic molding machines, and other thermal process equipment.
Key Features:
- Universal Input Support: Accepts thermocouple, RTD, and analog voltage/current signals for flexible use.
- Wide Temperature Range: Measures from -200°C to +2300°C for diverse industrial heating processes.
- Advanced PID Control: Ensures precise, stable temperature regulation with fast response.
- Multi-Output Capability: Provides relay, voltage pulse, and linear current or voltage control outputs.
- Heater Burnout Alarm (HB/HS): Detects heater or sensor faults to prevent downtime and damage.
- Multiple Alarms: Two programmable alarm outputs for process or safety monitoring.
- Event Inputs: Two external inputs for triggering control changes or system events.
- Universal Power Supply: Operates on 100–240 VAC for global compatibility.
The E5AN-HAA2HBM-500 delivers the reliability and precision required for high-performance process temperature control in industrial automation systems.
