E5AN-HAA3BFM-500 | Omron Temperature Controller
- Regular price
- $2,677.00
- Sale price
- $2,677.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5AN-HAA3BFM-500
Description

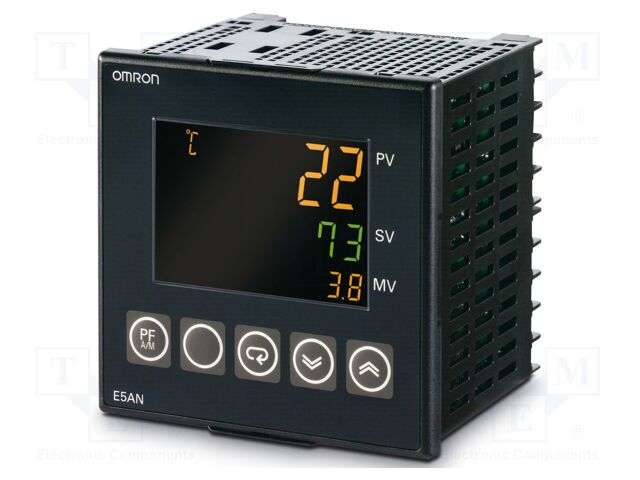

The Omron E5AN-HAA3BFM-500 is a digital temperature controller designed for precise process and temperature regulation in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Controls & Indicators |
| Part Number | E5AN-HAA3BFM-500 |
| Subcategory | Temperature/Process Control |
| Series | E5AN-H |
| Product Status | Active |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
| Controlled Parameter | Temperature |
| Input Range | -200°C ~ 2300°C, 0–20 mA, 0–10 VDC |
| Output Type | Analog, 3 × Relay, Option Cards Available |
| Regulation for Output 1 | 2-PID, ON-OFF |
| Control Method | On/Off, Proportional (PID) |
| Communications | Option Cards Available |
| Number of Characters per Row | 5, 5, 4 |
| Display Type | LCD – Tri-color characters, backlight |
| Display Height 1 | 15.8 mm (0.622") |
| Display Height 2 | 9.5 mm (0.374") |
| Display Height 3 | 6.8 mm (0.268") |
| Supply Voltage | 100–240 VAC |
| Mounting Type | Panel Mount |
| Mounting Hole Dimensions | 96 × 96 mm |
| Panel Cutout Dimensions | 92 × 92 mm (square) |
| Mounting | DIN rail (optional) |
| Termination Style | Screw Terminal |
| Ingress Protection | IP20 (overall), IP65/IP66 from front |
| Features | Event input, option cards |
| Programming Method | Keypad |
| Operating Temperature | -10°C ~ 55°C |
| Weight | 0.683 lbs |
Information About E5AN-HAA3BFM-500
The Omron E5AN-HAA3BFM-500 is a high-performance process and temperature controller from the E5AN-H series, designed for precise industrial temperature regulation. It supports a wide range of sensor inputs, including RTD and thermocouples (Types B, E, J, K, L, N, PLII, R, S, T, U, W), as well as analog signals in the ranges of 0–20 mA and 0–10 VDC, with a measurement span from -200°C to 2300°C.
Key Features:
- Model & Series: E5AN-HAA3BFM-500, E5AN-H Series.
- Input Types: RTD, thermocouple (B, E, J, K, L, N, PLII, R, S, T, U, W), analog (0–20 mA, 0–10 VDC).
- Measurement Range: -200°C to 2300°C.
- Outputs: 3 × relay, analog, with option for additional cards.
- Control Modes: On/Off, 2-PID.
- Display: LCD, tri-color characters, backlight; 15.8 mm / 9.5 mm / 6.8 mm heights.
- Supply Voltage: 100–240 VAC.
- Mounting: Panel mount (96 × 96 mm housing, 92 × 92 mm cutout); DIN rail optional.
- Protection Rating: IP20 overall, IP65/IP66 front.
- Programming Method: Keypad.
- Operating Temperature: -10°C to 55°C.
- Weight: 0.683 lb (309.8 g net; 498 g gross).
The E5AN-HAA3BFM-500 combines flexibility, accuracy, and durability, making it an excellent choice for industrial processes requiring precise and reliable temperature control.
