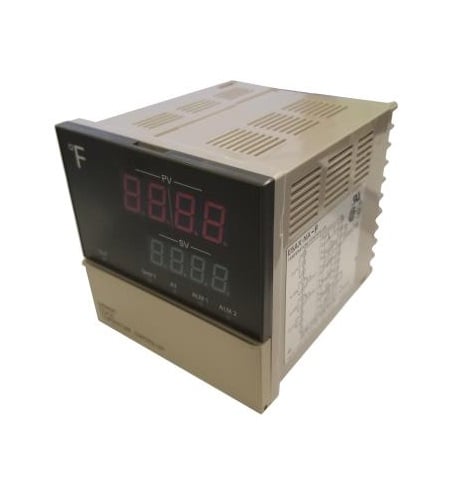

E5AX-A02-F | Omron E5AX 1/4 DIN Temperature Controller 100–240V AC RS-422
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5AX-A02-F
Description
The Omron E5AX-A02-F Temperature Controller is a 1/4 DIN digital process controller designed for precise temperature regulation in industrial and laboratory environments. Operating on 100–240 VAC, it features dual 4-digit LED displays for process value (PV) and set value (SV) indication and includes RS-422 communication capability for remote monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus (Discontinued) |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5AX-A02-F |
| Subcategory | Temperature Controllers |
| Series | E5AX |
| Type | Digital Temperature Controller |
| Mounting Type | Panel mount, 1/4 DIN (96 × 96 mm) |
| Display Type | Dual 4-digit LED (PV/SV) |
| Display Color | Red (PV), Green (SV) |
| Control Methods | PID, ON/OFF |
| Communication Interface | RS-422 serial communication |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 15 VA |
| Input Type | Universal (Thermocouple or RTD, model dependent) |
| Output Type | Relay or voltage pulse (model dependent) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Enclosure Rating | Front panel IP50 (typical) |
| Response Time | Fast-response PID control loop |
| Accuracy | ±0.3% of full scale |
| Dimensions (H × W × D) | 96 mm × 96 mm × 78 mm |
| Weight | Approx. 0.9 lb (400 g) |
| Certifications | CE, UL, CSA (series standard) |
| Country of Origin | Japan |
| Application | Process heating, ovens, machinery temperature control |
Information About E5AX-A02-F
The E5AX-A02-F belongs to Omron’s E5AX Series of standard-range digital temperature controllers, built for reliable and accurate thermal management in production and process control systems. It supports various sensor inputs and offers multiple control modes including PID and ON/OFF for flexible operation. Its RS-422 communication interface allows integration with supervisory control or data acquisition systems for centralized process monitoring. With a 1/4 DIN (96 × 96 mm) format and a robust design rated for continuous operation, this model provides dependable temperature regulation across a wide range of industrial applications.
Key Features:
- 1/4 DIN Design: Standard 96 × 96 mm panel size for easy installation and compatibility.
- Dual LED Display: 4-digit red LED for process value (PV) and green LED for set value (SV).
- RS-422 Communication: Enables connection to supervisory control systems or PCs.
- PID and ON/OFF Control: Provides stable, precise temperature management.
- Universal AC Power Input: Operates from 100–240 VAC, 50/60 Hz.
- Compact and Reliable: Ideal for industrial ovens, packaging, and process equipment.
- High-Visibility Display: Clear, bright LED indicators for fast status monitoring.
- Energy Efficient: Consumes only 15 VA power during operation.
The E5AX-A02-F delivers the reliability and precision required for accurate temperature control in automated and industrial applications.
Description
The Omron E5AX-A02-F Temperature Controller is a 1/4 DIN digital process controller designed for precise temperature regulation in industrial and laboratory environments. Operating on 100–240 VAC, it features dual 4-digit LED displays for process value (PV) and set value (SV) indication and includes RS-422 communication capability for remote monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus (Discontinued) |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5AX-A02-F |
| Subcategory | Temperature Controllers |
| Series | E5AX |
| Type | Digital Temperature Controller |
| Mounting Type | Panel mount, 1/4 DIN (96 × 96 mm) |
| Display Type | Dual 4-digit LED (PV/SV) |
| Display Color | Red (PV), Green (SV) |
| Control Methods | PID, ON/OFF |
| Communication Interface | RS-422 serial communication |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 15 VA |
| Input Type | Universal (Thermocouple or RTD, model dependent) |
| Output Type | Relay or voltage pulse (model dependent) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Enclosure Rating | Front panel IP50 (typical) |
| Response Time | Fast-response PID control loop |
| Accuracy | ±0.3% of full scale |
| Dimensions (H × W × D) | 96 mm × 96 mm × 78 mm |
| Weight | Approx. 0.9 lb (400 g) |
| Certifications | CE, UL, CSA (series standard) |
| Country of Origin | Japan |
| Application | Process heating, ovens, machinery temperature control |
Information About E5AX-A02-F
The E5AX-A02-F belongs to Omron’s E5AX Series of standard-range digital temperature controllers, built for reliable and accurate thermal management in production and process control systems. It supports various sensor inputs and offers multiple control modes including PID and ON/OFF for flexible operation. Its RS-422 communication interface allows integration with supervisory control or data acquisition systems for centralized process monitoring. With a 1/4 DIN (96 × 96 mm) format and a robust design rated for continuous operation, this model provides dependable temperature regulation across a wide range of industrial applications.
Key Features:
- 1/4 DIN Design: Standard 96 × 96 mm panel size for easy installation and compatibility.
- Dual LED Display: 4-digit red LED for process value (PV) and green LED for set value (SV).
- RS-422 Communication: Enables connection to supervisory control systems or PCs.
- PID and ON/OFF Control: Provides stable, precise temperature management.
- Universal AC Power Input: Operates from 100–240 VAC, 50/60 Hz.
- Compact and Reliable: Ideal for industrial ovens, packaging, and process equipment.
- High-Visibility Display: Clear, bright LED indicators for fast status monitoring.
- Energy Efficient: Consumes only 15 VA power during operation.
The E5AX-A02-F delivers the reliability and precision required for accurate temperature control in automated and industrial applications.
