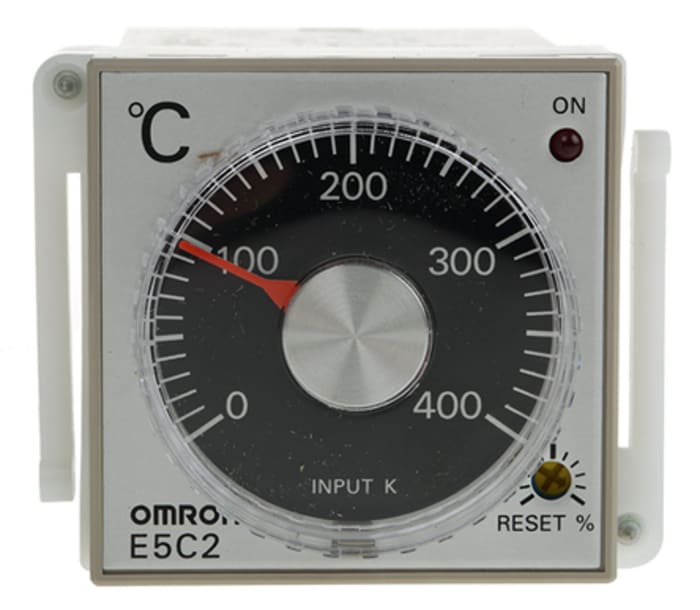

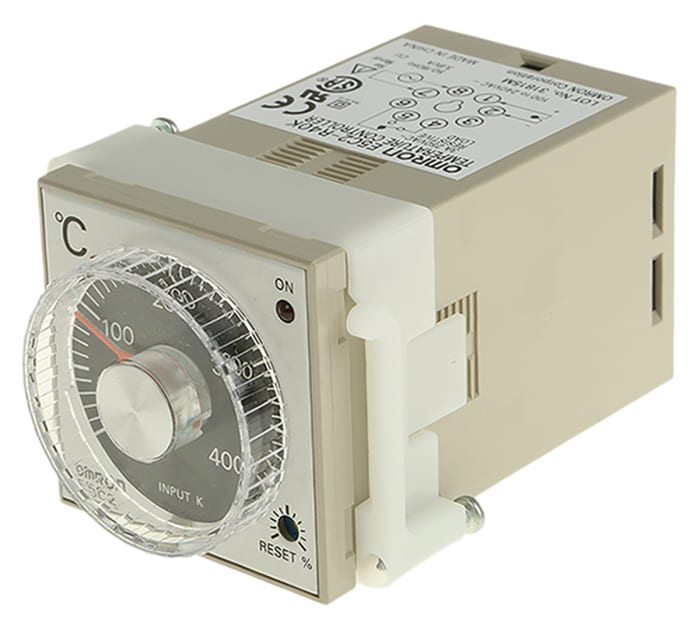

E5C2-R40K | Omron Temperature Controller 100-240 VAC
- Regular price
- $205.00
- Sale price
- $205.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5C2-R40K
Description
The E5C2-R40K is a compact temperature controller designed for precision heating control. With a fixed relay output and proportional action, it ensures reliable temperature regulation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Controls & Indicators
|
| Part Number | E5C2-R40K |
| Subcategory | Temperature/Process Control |
| Supply Voltage | 100 to 240 VAC (50/60 Hz) |
| Input Type | Thermocouple K (0 to 400 °C) |
| Output Type | Relay (SPDT, 250 VAC, 3 A) |
| Power Consumption | Approx. 3.6 VA |
| Control Method | Proportional action |
| Setting Method | Analog |
| Hysteresis | 0.5% FS (fixed) |
| Proportional Band | 3% FS (fixed) |
| Insulation Resistance | 20 MΩ (500 VDC) |
| Dielectric Strength | 2,000 VAC for 1 min |
| Vibration Resistance | 16.7 Hz, 2 mm, 2h each in XYZ |
| Shock Resistance | 294 m/s² destruction, 147 m/s² malfunction |
| Ambient Operating Temperature | -10 to 55 °C |
| Dimensions (W x H) | 48 mm x 48 mm |
| Weight | 0.44 lbs |
Information About E5C2-R40K
The E5C2-R40K belongs to the Omron E5C2 series and is engineered with a robust relay output mechanism. It operates with a thermocouple input and is suitable for temperature ranges from 0 to 400 °C. The device features a plug-in terminal type, is rated for a power supply voltage of 100 to 240 VAC at 50/60 Hz, and has a compact DIN48 x 48 housing format. With a vibration-resistant and shock-resistant construction, it supports analog setting and proportional control without digital indication. Its durable construction offers IP40 protection on the front and IP00 on the terminal section, ensuring longevity in industrial settings.
Key Features:
- Input type and range: Accepts K-type thermocouple inputs measuring from 0 to 400 °C for accurate temperature control in various applications.
- Power and consumption: Supports a wide input range of 100 to 240 VAC (90–110% allowance), with typical power consumption of 3.6 VA.
- Relay output performance: Equipped with one SPDT relay output rated for 250 VAC, 3 A resistive load, providing consistent switching performance.
- Mechanical endurance: Designed to withstand shock (294 m/s²) and vibration (16.7 Hz, 2 mm amplitude) in all three axes for 2 hours.
- Environmental resilience: Operates within a broad temperature range of -10 to +55 °C and ambient humidity of 45 to 85% without freezing or condensation.
- Control characteristics: Offers proportional control with fixed hysteresis of 0.5% FS and a proportional band of 3% FS, enabling stable process control.

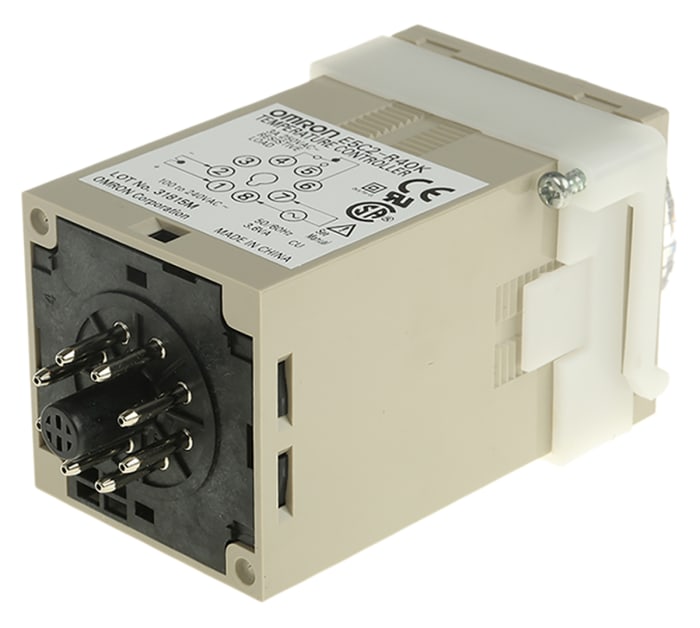

- Mounting and protection: Plug-in terminal design in a compact DIN48 x 48 format, protected to IP40 on the front and IP00 at the terminal side.
- Electrical insulation: Insulation resistance rated at 20 MΩ and dielectric strength at 2000 VAC between terminals and metallic parts.
The E5C2-R40K provides dependable thermal management for industrial automation, blending durability and simplicity for efficient performance.
