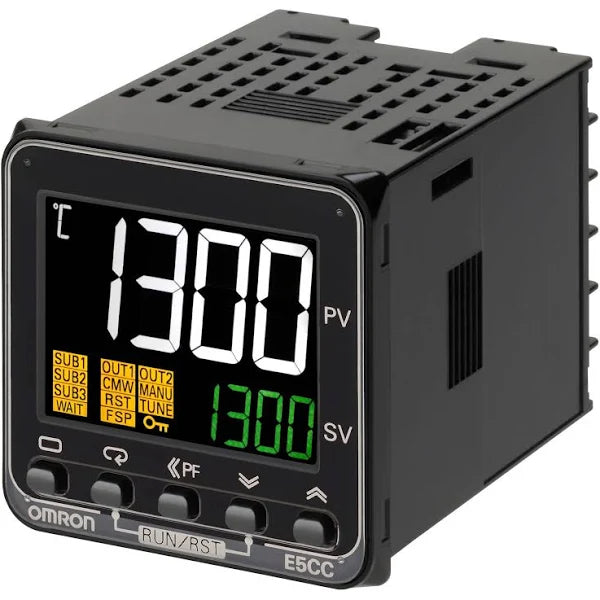

E5CC-RX3A5M-000 | Omron Temp Controller
- Regular price
- $221.00
- Sale price
- $221.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5CC-RX3A5M-000
Description
The Omron Automation E5CC-RX3A5M-000 Temperature Controller, designed in a 1/16 DIN format, offers relay output functionality and operates within a voltage range of 100-240VAC. Part of the E5CC Series, this controller epitomizes Omron's commitment to precision and reliability in temperature control systems.
The E5CC series represents a premium selection of PID-based controllers engineered to cater to a diverse spectrum of applications. With support for various sensor inputs, including universal, thermocouple, PT, and analog current/voltage inputs, it ensures adaptability to different temperature sensing requirements. Its versatile configurations allow seamless integration into specific programs and applications, guaranteeing dependable and user-friendly operation.
Technical Specifications
|
Part # |
E5CC-RX3A5M-000 |
|
Manufacturer |
Omron |
|
Category |
Controls & Indicators |
|
Subcategory |
Temperature/Process Control |
|
Part Status |
Active |
|
Type |
Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
|
Input Range |
-200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
|
Output Type |
Relay (4) |
|
Control Method |
On/Off, Proportional (PID) |
|
Number of Characters Per Row |
4, 4 |
|
Display Type |
LCD - Dual Color Characters, Backlight |
|
Display Characters - Height |
0.600" (15.20mm), 0.280" (7.10mm) |
|
Voltage - Supply |
100 ~ 240VAC |
|
Panel Cutout Dimensions |
Square - 45.00mm x 45.00mm |
|
Mounting Type |
Panel Mount |
|
Termination Style |
Screw Terminal |
|
Ingress Protection |
IP66 - Dust Tight, Water Resistant |
|
Operating Temperature |
-10°C ~ 55°C |
|
Weight |
0.265 lb (120.2 g) |
Information About E5CC-RX3A5M-000
The Omron Automation E5CC-RX3A5M-000 Temperature Controller, belonging to the E5CC Series, represents a compact digital temperature control solution engineered for a diverse range of applications. This premium PID-based controller offers extensive compatibility with various sensor inputs, including universal, thermocouple, PT, and analog current/voltage inputs, ensuring adaptability to different temperature sensing requirements.
With a standard 1/16 DIN panel size and a compact 48 x 48 mm unit, the E5CC-RX3A5M-000 Temperature Controller adheres to industry standards, facilitating straightforward installation into most system units. Its large white PV display, featuring 15.2 mm LED characters, enhances visibility and readability in diverse application environments, ensuring clear temperature monitoring.
The E5CC series, including models E5CC-B and E5CC-U, boasts a comprehensive range of features tailored to meet program and application requirements. These include a high-contrast white PV display, high-speed sampling at 50ms, and auxiliary outputs, event inputs, transfer output, and remote SP input capabilities, ensuring versatility and functionality across various applications.
Key attributes of the E5CC-RX3A5M-000 Temperature Controller include a short body depth of 60mm, IP66 front panel rating, and compatibility with push-in plus terminals for simplified wiring. The controller enables straightforward setup without the need for a power supply and allows easy connections to PLCs via program-less communications.
Moreover, temperature controllers within the E5CC series can be interconnected via component communications, offering enhanced system integration and coordination. Additionally, the E5CC-RX3A5M-000 Temperature Controller supports plug-in models for easy replacement, FM (Factory Mutual) models, RS-485 communication, and heater burnout alarm functionality.
Manufacturer Information
Omron Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
