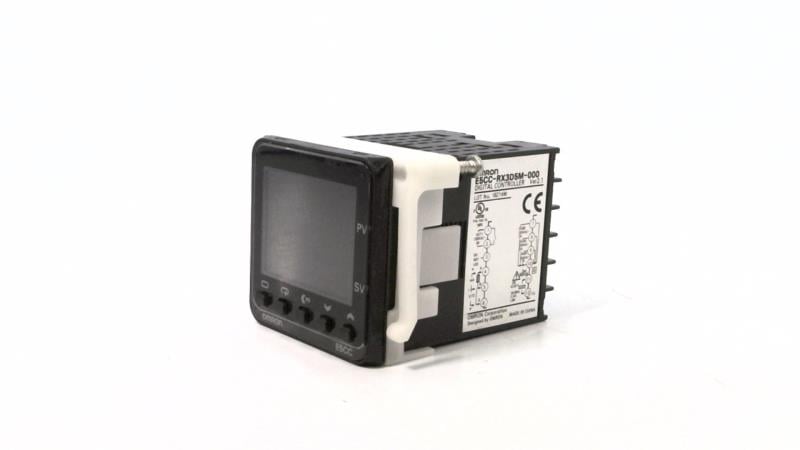

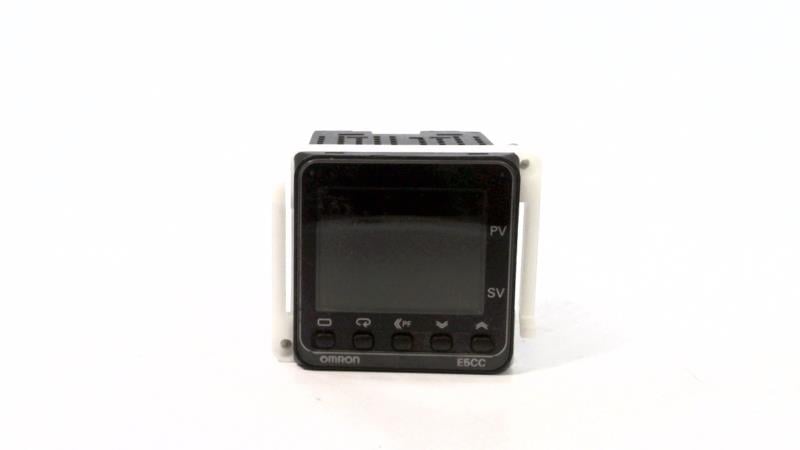

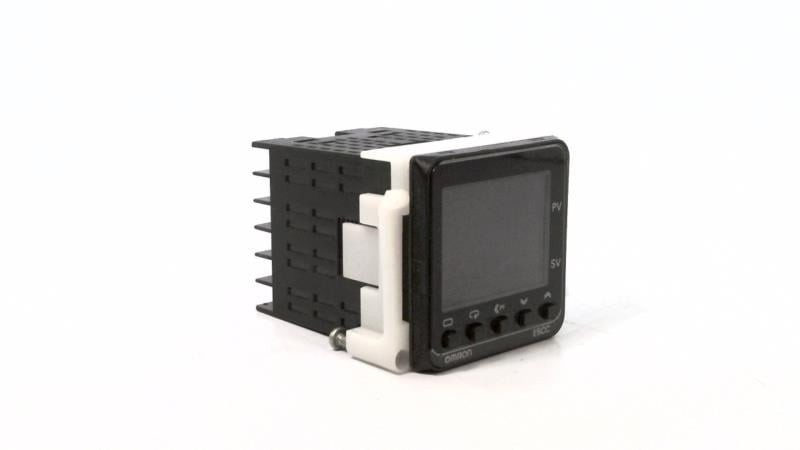

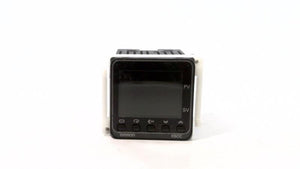

E5CC-RX3D5M-000 | Omron E5CC Digital Temperature Controller 24VAC/VDC PID IP66
- Regular price
- $484.00
- Sale price
- $484.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5CC-RX3D5M-000
Description
The Omron E5CC-RX3D5M-000 Temperature Controller is a compact digital PID controller designed for accurate temperature regulation in industrial and process applications. Operating on 24 VAC/VDC, it supports a wide range of thermocouple and RTD inputs, offering precise measurement and control through a clear dual-display LCD interface with IP66-rated front protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5CC-RX3D5M-000 |
| Subcategory | Temperature Controllers |
| Series | E5CC |
| Type | Digital PID Temperature Controller |
| Power Supply Voltage | 24 VAC / 24 VDC |
| Control Methods | PID (2-PID) or ON/OFF |
| Input Types | Thermocouple (B, E, J, K, L, N, R, S, T, U, W, PLII), RTD (Pt100, JPt100), analog voltage/current |
| Controlled Parameter | Temperature |
| Measurement Range | -1999 to 9999 (dependent on sensor type) |
| Output Type (Main) | SPST-NO relay output |
| Auxiliary Outputs | 3 × SPST-NO |
| Display Type | Dual LCD display (PV/SV) |
| Display Size | PV: 15.2 mm, SV: 7.1 mm |
| Accuracy | ±1°C (typical) |
| Mounting Type | Panel mount |
| Panel Cutout Size | 45 × 45 mm |
| Body Dimensions (H × W × D) | 48 × 48 × 77.1 mm |
| Ingress Protection | IP66 (front panel only) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Humidity Range | 25%–85% RH (non-condensing) |
| Programming Method | Keypad configuration |
| Weight | 155.7 g |
| Compliance | RoHS Compliant |
| Country of Origin | Japan |
| Application | Industrial ovens, packaging machines, process heaters, HVAC control |
Information About E5CC-RX3D5M-000

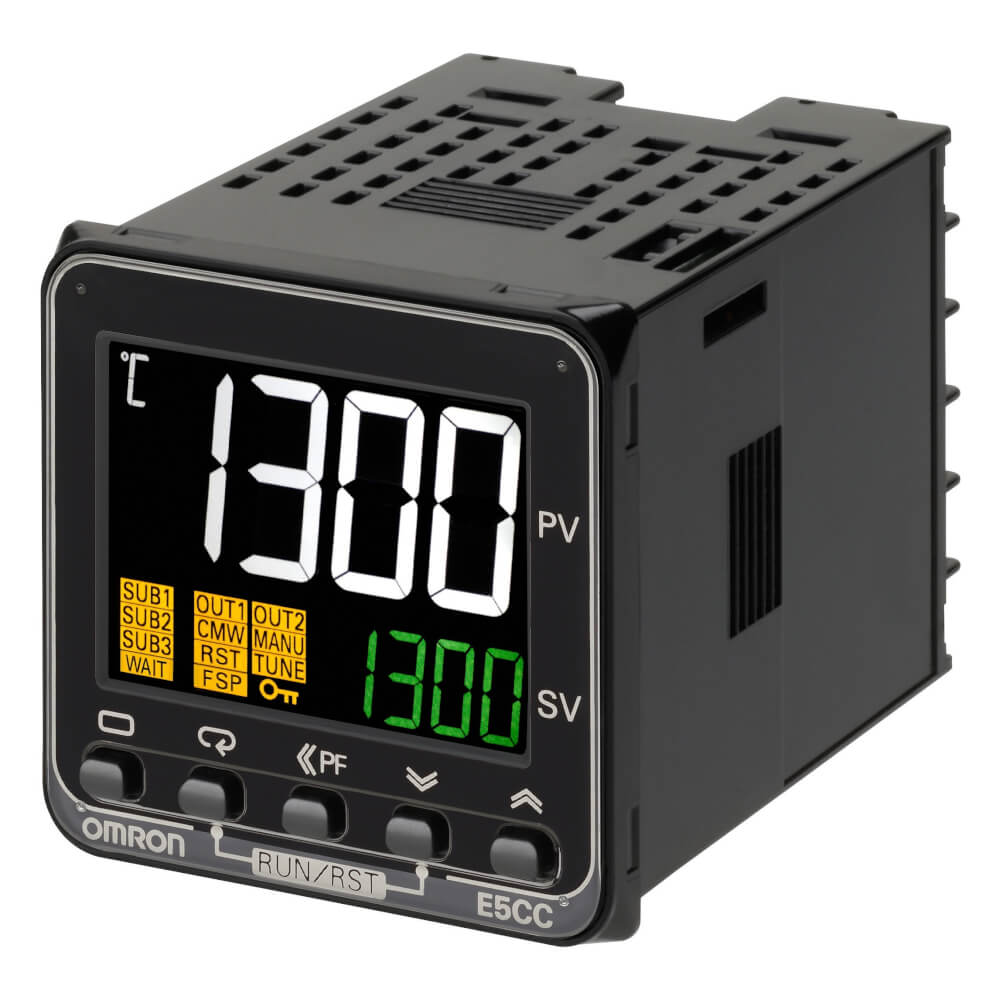

The E5CC-RX3D5M-000 is part of Omron’s E5CC Series, a high-performance line of digital temperature controllers built for precision, simplicity, and reliability. Featuring universal input compatibility for thermocouples (B, E, J, K, L, N, R, S, T, U, W, PLII) and RTDs (Pt100, JPt100), this controller provides flexibility across diverse applications. It offers PID or ON/OFF control, three auxiliary outputs, and intuitive keypad programming for easy setup. Its large dual-display LCD clearly presents both process (PV) and set values (SV), while its 45 × 45 mm panel cutout allows easy integration into control panels. The IP66-rated front panel ensures protection against dust and water, making it suitable for harsh environments.
Key Features:
- Universal Input Support: Accepts thermocouples, RTDs, and analog signals for broad compatibility.
- Accurate Control: ±1°C temperature accuracy with 2-PID or ON/OFF regulation modes.
- Multiple Outputs: Includes one main SPST-NO control output and three auxiliary outputs.
- Compact 1/16 DIN Design: Panel-mounted 48 × 48 mm housing for efficient space utilization.
- High-Visibility Display: Large dual LCD shows process and set values simultaneously.
- Durable Construction: IP66-rated front panel for water and dust resistance.
- User-Friendly Programming: Keypad-based configuration with intuitive menu navigation.
- Heating and Cooling Control: Supports both temperature increase and decrease operations.
The E5CC-RX3D5M-000 delivers the reliability and precision required for industrial temperature management, ensuring consistent performance and easy integration.
