E5CS-Q1KJX-F | Omron E5CS Temperature Controller 100–240VAC J/K Thermocouple LED Display
- Regular price
- $530.00
- Sale price
- $530.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5CS-Q1KJX-F
Description

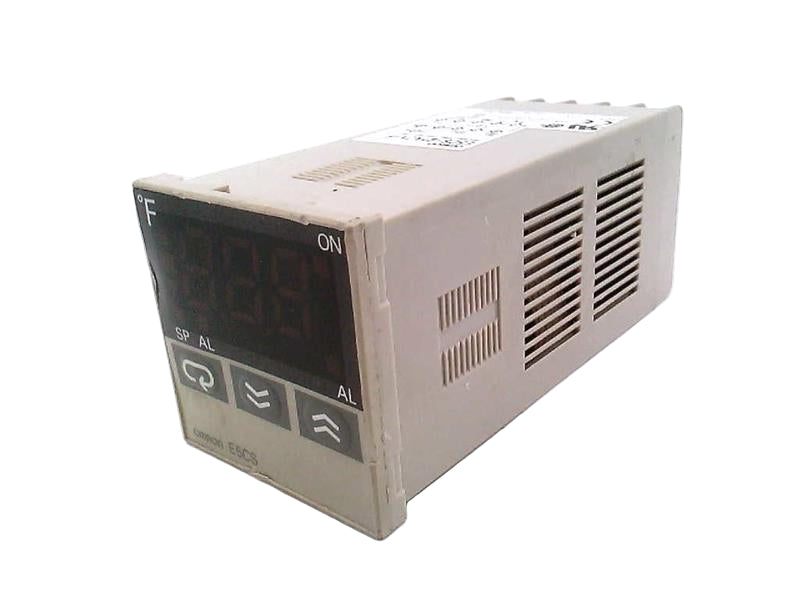

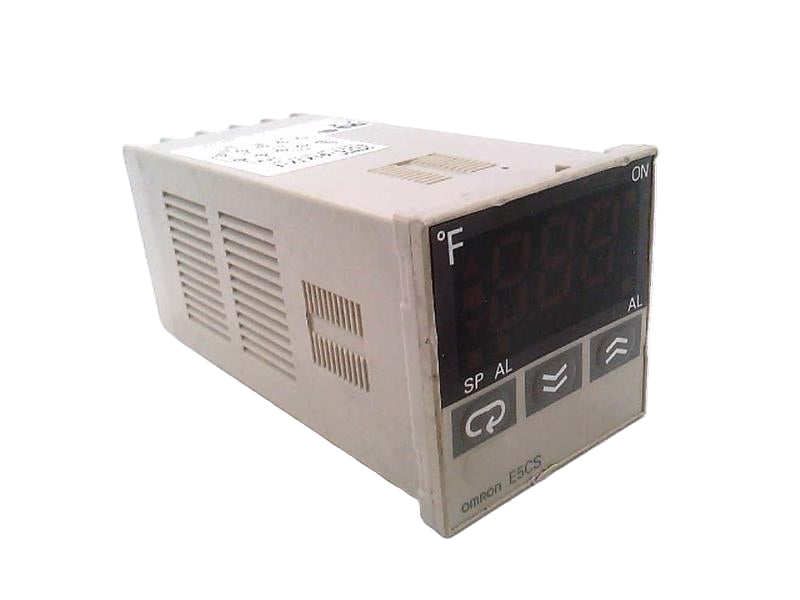

The Omron E5CS-Q1KJX-F Temperature Controller is a compact 1/16 DIN digital controller designed for precise temperature regulation in industrial and process environments. It supports J and K thermocouple inputs with a field-selectable Fahrenheit temperature range and operates on a 100–240 VAC supply with a voltage output for control applications.
Technical Specifications
| Condition | New/Never Used Surplus (Discontinued) |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5CS-Q1KJX-F |
| Subcategory | Temperature Controllers |
| Series | E5CS |
| Type | Digital Temperature Controller |
| Mounting Type | Panel mount, 1/16 DIN (48 × 48 mm) |
| Input Type | Thermocouple (J, K) |
| Display Type | LED digital display |
| Display Units | Fahrenheit (°F) |
| Control Output Type | Voltage output (SSR drive) |
| Power Supply Voltage | 100–240 VAC, 50/60 Hz |
| Control Method | ON/OFF or PID (series standard) |
| Response Time | Fast response for process applications |
| Setpoint Adjustment | Keypad with digital input |
| Accuracy | ±0.5% of full scale (typical) |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | -20°C to 70°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Insulation Resistance | ≥20 MΩ at 500 VDC |
| Dielectric Strength | 2000 VAC for 1 minute between input/output and power |
| Enclosure Rating | Front panel IP50 (typical for series) |
| Indicators | LED status indicators for output and alarm |
| Panel Cutout | 45 × 45 mm |
| Weight | Approx. 150 g (0.33 lb) |
| Compliance | CE, UL, CSA (series) |
| Country of Origin | Japan |
| Application | Ovens, heaters, packaging machinery, laboratory and process control |
Information About E5CS-Q1KJX-F
The E5CS-Q1KJX-F belongs to Omron’s E5CS Series of digital temperature controllers known for their reliability and straightforward operation. Designed with an LED display, it allows for easy monitoring of process and set values, while its voltage output provides direct control of solid-state relays or similar devices. The unit supports J and K-type thermocouple inputs, enabling flexible use across a variety of heating and cooling systems. Compact and panel-mounted, it’s suitable for ovens, packaging machinery, and environmental control systems requiring stable, automatic temperature management.
Key Features:
- 1/16 DIN Compact Size: Standard 48 × 48 mm format for convenient panel installation.
- Thermocouple Compatibility: Accepts J and K-type thermocouples with selectable input range.
- Fahrenheit Display: Field-selectable temperature range in °F for localized operation.
- Clear LED Display: Bright digital display for easy reading of process and set temperatures.
- Voltage Output Control: Provides control signal for SSR or external devices.
- Wide Power Range: Operates on 100–240 VAC, 50/60 Hz.
- Fast Response: Provides stable and accurate control for dynamic thermal systems.
- Reliable Omron Design: Proven long-term performance for industrial automation and heating applications.
The E5CS-Q1KJX-F delivers the reliability and precision required for accurate temperature control in automated and industrial processes.
