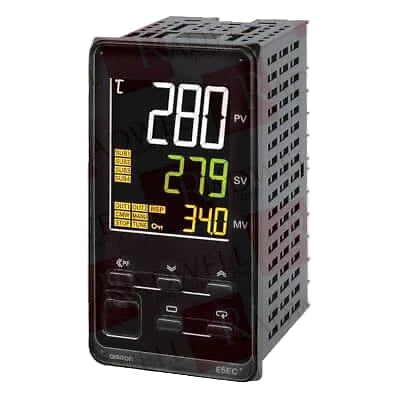

E5EC-CX4A5M-000 | Omron E5EC Series 1/8 DIN Digital Temperature Controller 100–240 VAC PID
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5EC-CX4A5M-000
Description
The Omron E5EC-CX4A5M-000 Temperature Controller is a high-precision digital controller designed for advanced temperature regulation in industrial applications. Featuring a large, easy-to-read 4-digit display and versatile input support for thermocouples, RTDs, and analog signals, it provides accurate PID and ON/OFF control. Housed in a 1/8 DIN panel-mount enclosure, it delivers reliable temperature management across a wide measurement range from -200°C to +2300°C.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5EC-CX4A5M-000 |
| Subcategory | Temperature Controllers |
| Series | E5EC Series |
| Type | Digital Temperature Controller |
| Control Method | ON/OFF or PID Control |
| Control Loops | 1 |
| Input Types | Thermocouple (B, C, E, J, K, L, N, P, R, S, T, U), RTD (Pt100, JPt100), Linear (4–20 mA, 0–10 V, 0–5 V, 1–5 V, 0–20 mA) |
| Temperature Measuring Range | -200°C to +2300°C |
| Number of Inputs | 1 (selectable input type) |
| Number of Outputs | 4 Relay Outputs |
| Output Type | Relay / Linear Current Output |
| Alarm Outputs | 4 |
| Display Type | 11-segment, 4-digit white LED |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 0–10 V (linear analog output) |
| Analog Input Accuracy | ±0.1% of full scale |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -20°C to +60°C |
| Input Impedance | Approx. 1 MΩ (voltage), 250 Ω (current) |
| Mounting Type | Panel Mount (1/8 DIN) |
| Termination Style | Screw Terminals |
| Protection Rating | IP66 (front panel) |
| Display Dimensions | 96 mm (H) × 48 mm (W) × 60 mm (D) |
| Power Consumption | Approx. 8 VA |
| Accuracy (Digital/Analog) | 0.01% / 0.1% |
| Housing Material | Flame-resistant resin |
| Certifications | CE, UL, cUL, RoHS |
| Weight | Approx. 0.68 kg (1.5 lb) |
Information About E5EC-CX4A5M-000
The E5EC-CX4A5M-000 belongs to Omron’s E5EC Series, a family of digital temperature controllers developed for flexibility, intuitive operation, and precision control. This model supports a wide range of thermocouple and RTD inputs (types K, J, T, R, S, N, Pt100, JPt100, and others) as well as analog signal inputs such as 4–20 mA and 0–10 V. It offers PID or ON/OFF control modes and includes up to four alarm outputs for process monitoring and safety. Powered by a 100–240 VAC supply, this compact controller is ideal for ovens, furnaces, packaging machines, and temperature-sensitive production systems.
Key Features:
- Wide Input Compatibility: Accepts thermocouple, RTD, and analog signal inputs for versatile temperature sensing.
- Advanced PID Control: Provides precise temperature regulation with auto-tuning capability.
- Broad Measurement Range: Supports temperature detection from -200°C to +2300°C.
- Multiple Outputs: Four relay outputs for alarms or control signaling.
- User-Friendly Display: Large, white 11-segment display for clear visibility in low-light environments.
- Compact 1/8 DIN Design: Standard 96 × 48 mm panel mount for easy integration.
- Flexible Power Supply: Operates on 100–240 VAC with low power consumption.
- Rugged and Reliable: IP66-rated front panel for protection against dust and moisture.
The E5EC-CX4A5M-000 delivers the reliability and precision required for process heating, cooling, and environmental control in industrial automation.
