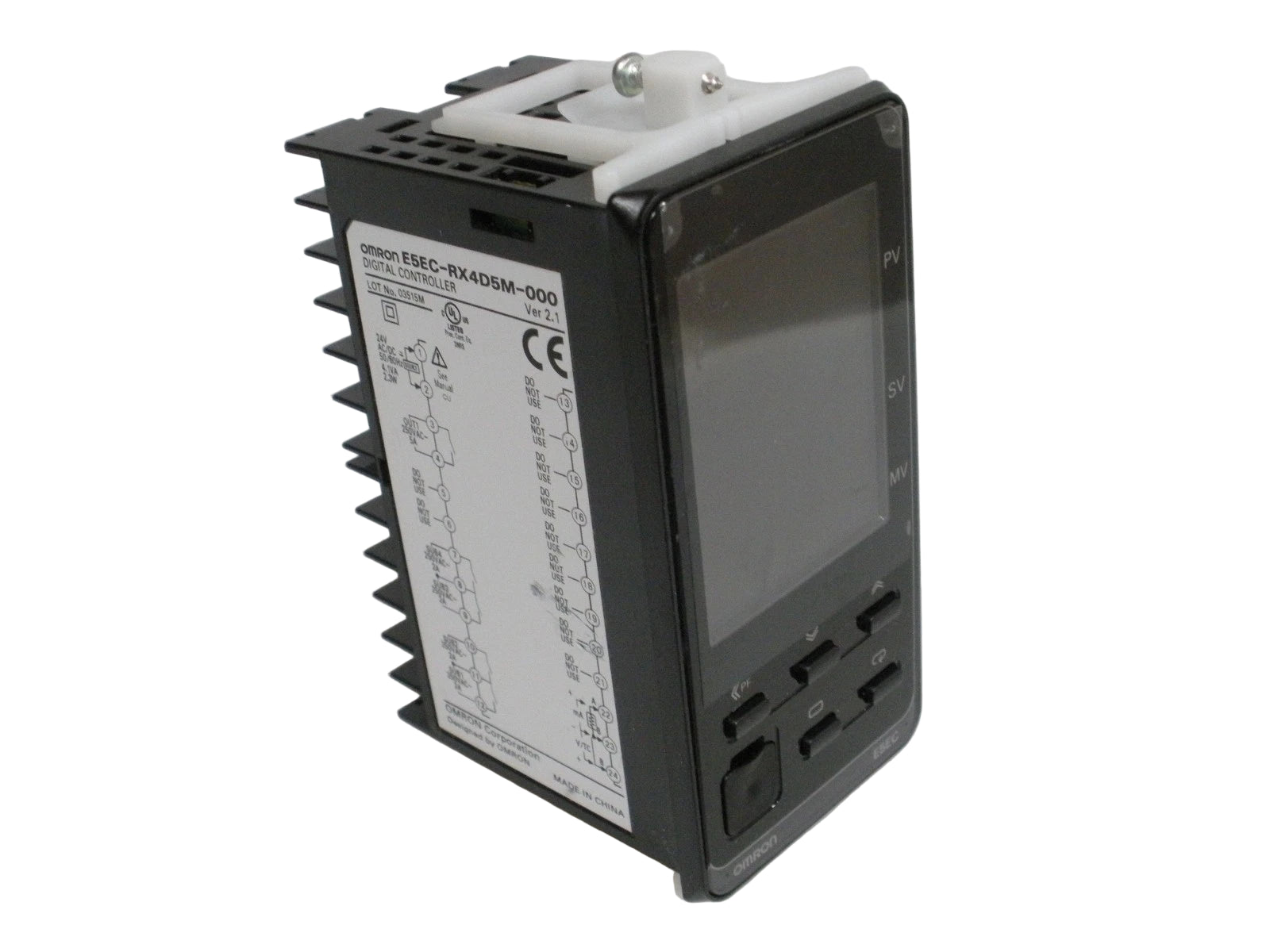

E5EC-RX4D5M-000 | Omron Temperature Controller 1/8 DIN 24VAC/VDC Relay Output
- Regular price
- $569.00
- Sale price
- $569.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5EC-RX4D5M-000
Description
The Omron E5EC-RX4D5M-000 Temperature Controller is a 1/8 DIN panel-mount controller designed for high-precision temperature regulation using PID or ON/OFF control methods. Operating on 24 VAC/VDC, it features a universal input for multiple thermocouple and RTD types, one relay control output, and four auxiliary alarm outputs. With its intuitive setup via CX-Thermo software and IP66-rated front panel, the E5EC-RX4D5M-000 delivers flexible, accurate control for industrial heating, cooling, and process systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation |
| Category | Process Control Equipment |
| Part Number | E5EC-RX4D5M-000 |
| Subcategory | Temperature Controllers |
| Series | E5EC Series |
| Type | ON/OFF and PID Temperature Controller |
| Control Loops | 1 |
| Input Type | Universal (Thermocouple, RTD, Linear Analog) |
| Supported Sensors | B, C, E, J, JPt100, K, L, N, P(PLII), Pt100, R, S, T, U |
| Linear Input Range | 0–10 V, 0–20 mA, 0–5 V, 1–5 V, 4–20 mA |
| Temperature Range | -200°C to +2300°C |
| Control Output | Relay |
| Output Type | 1 Relay Control Output + 4 Auxiliary Outputs |
| Number of Inputs | 6 (Universal Input Channels) |
| Number of Outputs | 5 (1 Control + 4 Alarm) |
| Supply Voltage | 24 VAC/VDC (20.4–26.4 V range) |
| Mounting Type | Panel Mount |
| Terminal Type | Screw Terminals |
| Display | Digital (Multi-Line with LED Indicators) |
| Communication Interface | CX-Thermo Software Support |
| Enclosure Rating | IP66 (Front Panel) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +65°C |
| Dimensions (H x W x D) | 48 x 96 mm (1/8 DIN) |
| Special Features | Setup via CX-Thermo without Power Supply |
| Certifications | CE, UL, cUL |
| Application | Process Control, Heating/Cooling Systems, Automation |
| Weight | Approx. 0.6 lbs |
Information About E5EC-RX4D5M-000
The E5EC-RX4D5M-000 is part of the Omron E5EC Series, a professional line of digital temperature controllers built for performance and usability. It offers a universal input supporting a wide range of thermocouple and RTD sensors—including types B, J, K, Pt100, and more—as well as linear analog inputs such as voltage or current signals. The controller features a large, easy-to-read display, four auxiliary alarm outputs, and a durable IP66-rated front panel for harsh industrial environments. Designed for single-loop control, it provides stable PID control with quick setup through the CX-Thermo software, even without a power supply connection.
Key Features:
- Universal Sensor Input: Supports thermocouple, RTD, and linear analog input types for versatile applications.
- Precise PID Control: Offers advanced proportional-integral-derivative regulation for stable temperature management.
- Compact 1/8 DIN Design: Measures 96 x 48 mm for standard panel-mount installations.
- Multiple Alarm Outputs: Includes four auxiliary relay outputs for event signaling and system protection.
- Wide Input Range: Accepts temperatures from -200°C to +2300°C depending on sensor type.
- CX-Thermo Compatibility: Easily configured and tuned via Omron’s CX-Thermo software, even when unpowered.
- Durable IP66 Enclosure: Front panel protection against dust and water for industrial reliability.
- Flexible Power Supply: Operates on 24 VAC or 24 VDC for adaptable installation.
The E5EC-RX4D5M-000 delivers the reliability and precision required for industrial temperature control, process regulation, and automation environments.
