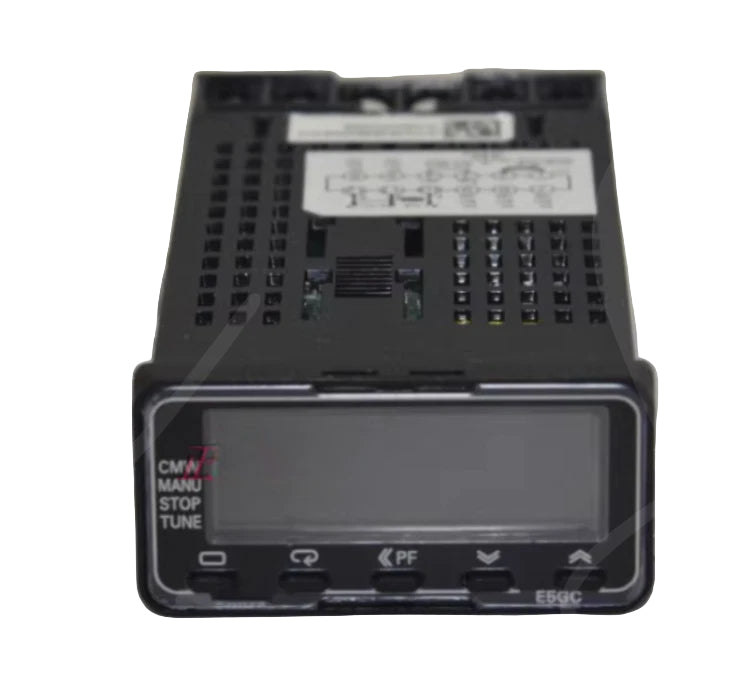

E5GC-RX2D6M-000 | Omron E5GC Series 1/32 DIN PID Temperature Controller 24 VAC/DC
- Regular price
- $695.00
- Sale price
- $695.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5GC-RX2D6M-000
Description
The Omron E5GC-RX2D6M-000 Temperature Controller is a compact, high-performance digital controller designed for precise temperature and process regulation. Operating on 24 VAC/DC, it features dual-color LCD display indicators and supports multiple input types, including thermocouples and analog signals. With advanced PID and ON/OFF control capabilities, this unit provides exceptional control accuracy in a slim 1/32 DIN (22.5 mm) panel-mount design.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | E5GC-RX2D6M-000 |
| Subcategory | Temperature Controllers |
| Series | E5GC Series |
| Type | Process / Temperature Controller |
| Control Method | ON/OFF, Proportional (PID) |
| Number of Control Loops | 1 |
| Input Types | Thermocouple (B, E, J, K, L, N, PLII, R, S, T, U, W) / Analog (0–20 mA, 0–10 VDC) |
| Input Range | -200°C to +2300°C |
| Output Type | Relay (3 outputs) |
| Display Type | LCD with Dual-Color Characters and Backlight |
| Display Height | Upper: 10.5 mm, Lower: 5.0 mm |
| Power Supply Voltage | 24 VAC/DC |
| Panel Cutout Dimensions | 45.0 mm × 22.2 mm |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Protection Rating | IP66 (front panel) |
| Response Time | ≤ 1 second (typical) |
| Accuracy | ±0.1% of full scale (typical) |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -20°C to +60°C |
| Enclosure Material | Flame-resistant resin |
| Dimensions (W × H × D) | Approx. 22.5 mm × 48 mm × 60 mm |
| Compliance | CE, UL, RoHS Certified |
| Weight | Approx. 0.08 kg (0.18 lb) |
Information About E5GC-RX2D6M-000
The E5GC-RX2D6M-000 belongs to Omron’s E5GC Series, a family of compact digital temperature and process controllers optimized for tight control spaces and precision applications. It supports a wide range of sensor inputs (thermocouples types B, E, J, K, L, N, PLII, R, S, T, U, W) and analog signals (0–20 mA, 0–10 VDC), covering process ranges from -200°C to 2300°C. Featuring PID and ON/OFF control modes, the controller provides stable temperature management with quick setup and user-friendly operation. Its IP66-rated front panel and dual-display LCD interface ensure durability and visibility in industrial and laboratory environments.
Key Features:
- Wide Input Range: Accepts thermocouple and analog signal inputs for broad process flexibility.
- PID and ON/OFF Control: Provides precise and stable temperature regulation.
- Compact 1/32 DIN Size: Slim design (22.5 mm wide) for space-efficient installations.
- Dual-Color LCD Display: Clear indication of process and setpoint values for easy monitoring.
- Multiple Output Channels: Equipped with 3 relay outputs for versatile control functions.
- 24 VAC/DC Operation: Low-voltage compatibility suitable for panel systems.
- Rugged Protection: IP66-rated front face ensures dust-tight and water-resistant performance.
- Reliable Omron Build: Ensures accuracy, longevity, and consistent process control results.
The E5GC-RX2D6M-000 delivers the reliability and precision required for compact temperature and process control applications across manufacturing, research, and automation environments.
