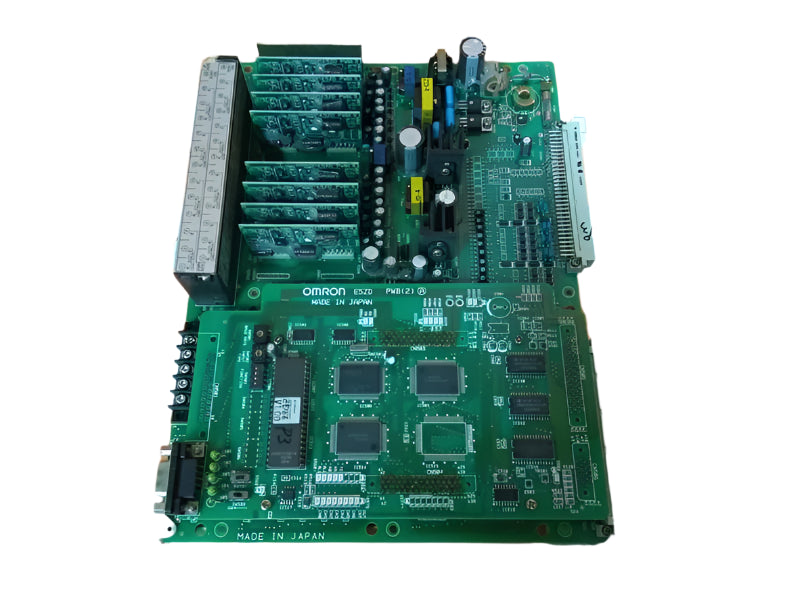

E5ZD-8H02P-44 | Omron Temperature Controller Board
- Regular price
- $597.00
- Sale price
- $597.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5ZD-8H02P-44
Description
Omron E5ZD‑8H02P‑44 is a high-performance multipoint temperature controller board designed for industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
Industrial Automation Components
|
| Part Number | E5ZD-8H02P-44 |
| Subcategory | Controller Boards |
| Product Type | Temperature Controller Board (E5ZD Series) |
| Appearance | Round / Half-guard type LED voltage-reduction lighting |
| Voltage Reduction Unit | Included (A22L-H Series) |
| Output Type | SPST-NO + SPST-NO |
| Lighting Type | LED |
| Operating Voltage | 200 VAC |
| Operation | Momentary (self-resetting) |
| Illumination Colors | R (Red), Y (Yellow), G (Green), W (White), A (Blue) |
| Panel Cutout Size | 22 mm or 25 mm (using ring) |
| Mounting Feature | Lever-assisted mounting/removal |
| Switch Block Mounting | Three-row mounting for efficiency |
| Protection (Non-lighted) | IP65 oil resistance |
| Protection (Lighted Models) | IP65 |
| Connector Type | Cable connectors on both ends |
| Cable Length | 1 m (minimum order quantity: 5) |
| Environmental Resistance | IP67 (connectors), 94V-0 flame retardant rating |
| Protective Tubing Diameter | 3.2 mm |
| Protective Tubing Length | 20 cm |
| Lead Wire Type | Heat-resistive |
| Lead Wire Length | 4 m |
| Temperature Sensor Types | Thermocouple, RTD, Ferrule or M3 screw terminal |
| Supply Voltage | 24 VDC |
| Input Type | DC voltage, DC current, or PNP input |
| Output Type | 3 transistor outputs (PNP open collector) |
| Size (DIN Standard) | 1/32 DIN, 48 × 24 × 82 mm (W × H × D) |
| Display Colors | Green / Red (switchable) |
| Certification | CE Marking, UL / CSA approval |
| Panel Protection Rating | NEMA4X (equivalent to IP66) |
| Weight | 0.35 kgs |
Information About E5ZD-8H02P-44
The Omron E5ZD-8H02P-44 is a multi-channel temperature controller board designed for precise thermal management in industrial applications. Part of the E5ZD Series, this compact PCB assembly handles eight temperature input channels, supporting thermocouples and RTDs for multi-point control. Operating on 24 VDC, the E5ZD-8H02P-44 integrates easily into equipment control panels and distributed thermal systems, ensuring accurate monitoring and temperature regulation across multiple zones.
Key Features:
- 8-Channel Temperature Control: Supports simultaneous monitoring and control of up to eight temperature points using thermocouples or RTDs.
- Sensor Compatibility: Compatible with K-type, J-type thermocouples, and Pt100 RTDs.
- Heater Burnout Detection: Integrated functionality for monitoring and detecting heater failures.
- PID Control with Feed-Forward: Enables stable and responsive thermal control using advanced PID algorithms.
- 24 VDC Power Supply: Operates from a reliable 24 VDC source, suitable for industrial environments.
- PNP Transistor Outputs: Provides three PNP open collector outputs for control signaling.
- Compact PCB Design: Engineered as a board-level component for embedded installations within machinery and control cabinets.
- LED Status Indicators: Visual feedback for input status and controller operation.
The Omron E5ZD-8H02P-44 delivers reliable, high-precision thermal control for applications requiring distributed temperature monitoring and control across multiple zones. Its modular design, sensor flexibility, and advanced diagnostics make it an efficient solution for managing complex heating processes in industrial equipment.
