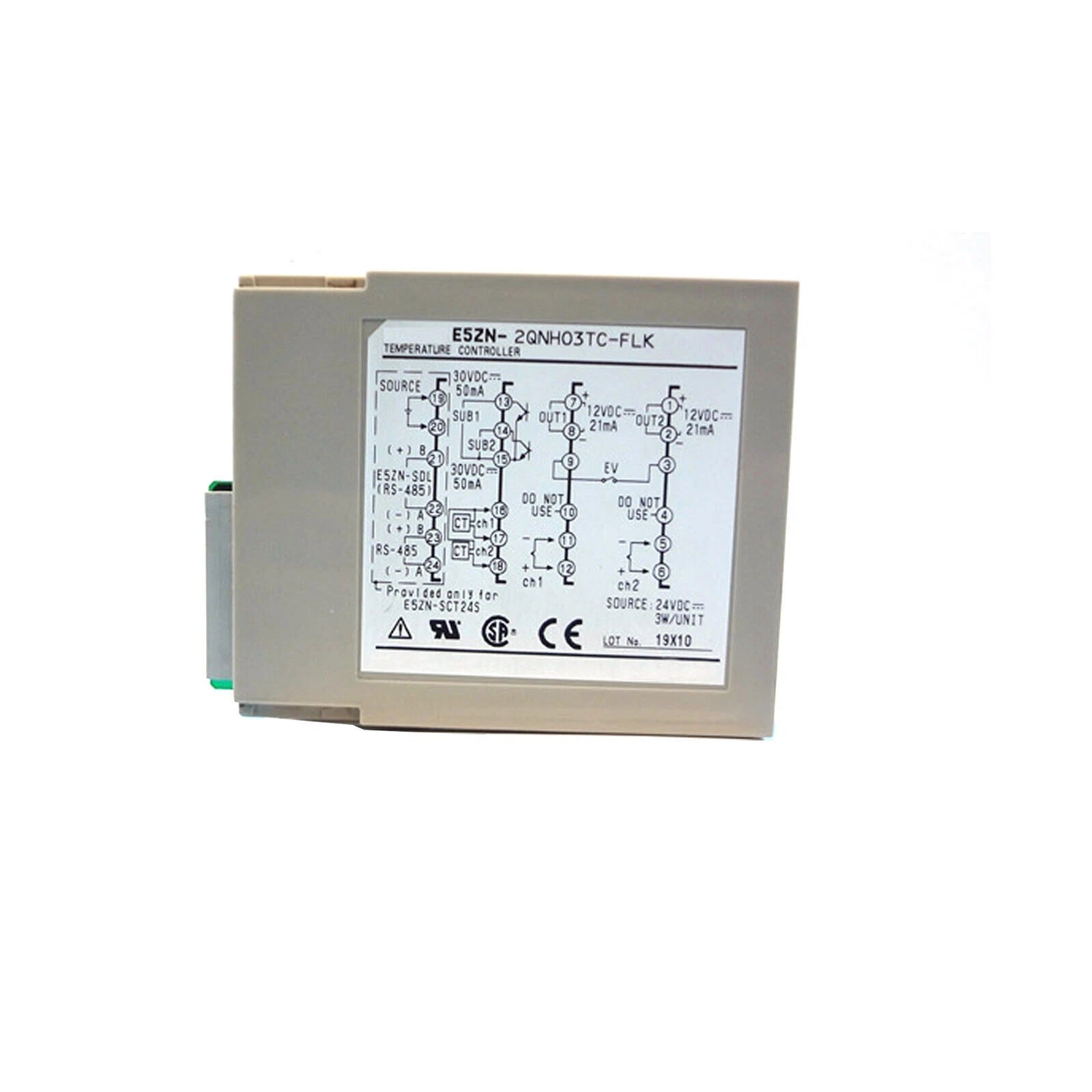

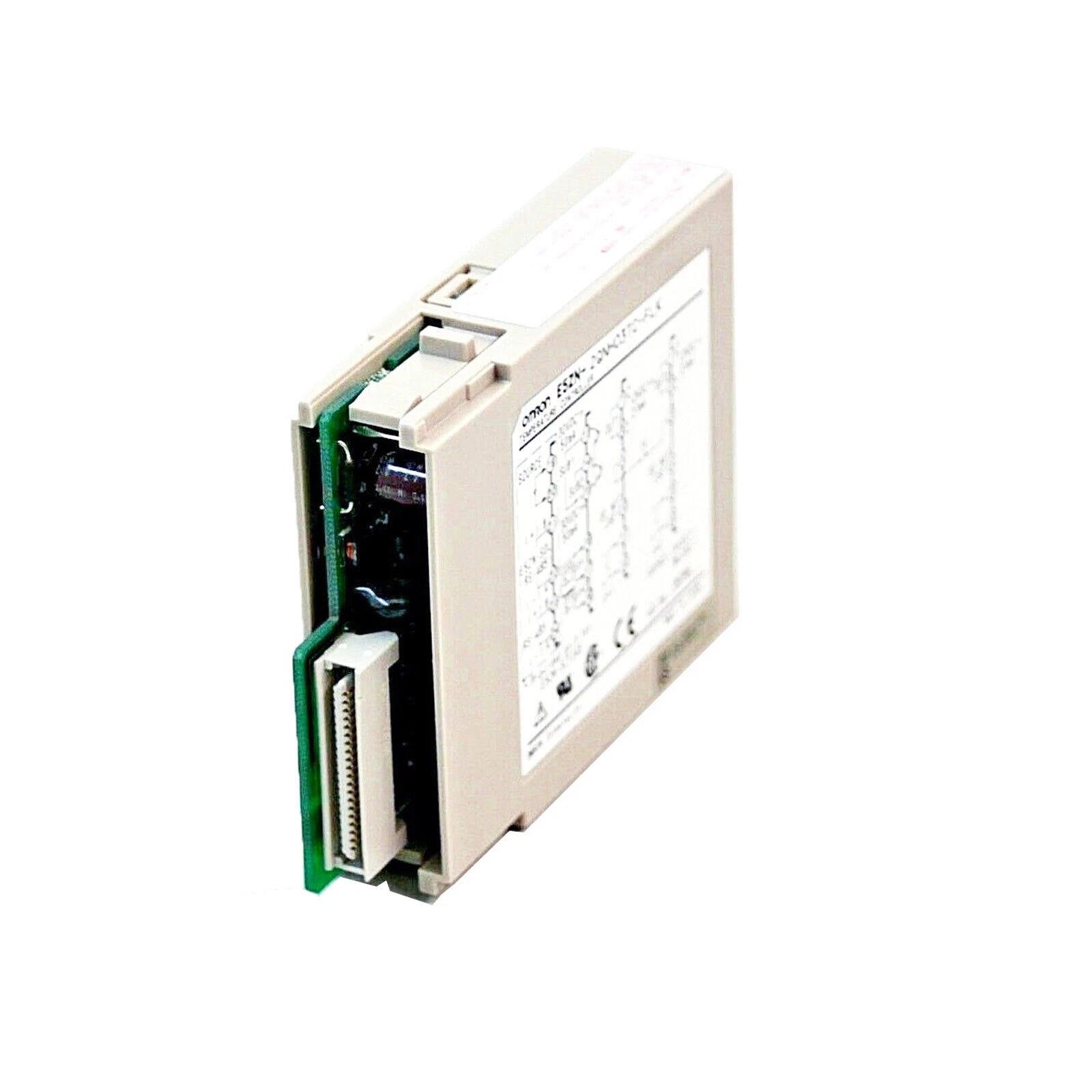

E5ZN-2QNH03TC-FLK | Omron Modular Dual Input PID Temperature Controller
- Regular price
- $792.00
- Sale price
- $792.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E5ZN-2QNH03TC-FLK
Description
The Omron E5ZN-2QNH03TC-FLK is a modular temperature controller with two thermocouple inputs and voltage-type control outputs. Operating on 24 VDC, it features PID control, RS-485 communication via CompoWay/F protocol, and integrated heater burnout detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Temperature & Process Control |
| Part Number | E5ZN-2QNH03TC-FLK |
| Subcategory | Temperature Controllers |
| Number of Inputs | 2 |
| Input Range | -200°C ~ 1800°C, 0–50 mV |
| Number of Outputs | 2 |
| Output Type | Solid State (Voltage, External SSR) |
| Supply Voltage | 24 VDC |
| Control Method | On/Off, Proportional (PID) |
| Display Type | LED Indicator |
| Communications | RS-485 (CompoWay/F) |
| Mounting Type | DIN Rail (Socketable) |
| Termination Style | Plug In, 24 Pin |
| Ingress Protection | IP00 |
| Features | Heater Fault Detection |
| Operating Temperature | -10°C to 55°C |
| Dimensions | 130 × 112 × 30 mm |
| Weight | 0.198 lb (89.81 g) |
Information About E5ZN-2QNH03TC-FLK
The E5ZN-2QNH03TC-FLK is a compact, socketable temperature controller from Omron’s E5ZN series, engineered for multi-loop thermal regulation in industrial systems. It supports two thermocouple inputs with a wide measurement range from -200°C to 1800°C, and offers two solid-state voltage outputs for external SSRs. Designed for DIN rail mounting with plug-in 24-pin termination, the unit incorporates advanced PID control, ON/OFF functionality, and heater fault detection. With LED indicators and RS-485 communication, it ensures flexible integration and real-time feedback in space-constrained panels or distributed control environments.
Key Features:
-
Dual Thermocouple Inputs: Accepts two temperature input channels across a wide range of -200°C to 1800°C or 0–50 mV for high-precision monitoring.
-
Voltage-Type Solid-State Outputs: Provides two transistor outputs designed to drive external SSRs, enabling reliable and fast control switching.
-
PID and On/Off Control Modes: Offers flexible control strategies for maintaining thermal stability in dynamic process environments.
-
RS-485 Serial Communication: Supports the CompoWay/F protocol for remote configuration, monitoring, and integration with PLCs or HMIs.
-
Heater Burnout Alarm: Built-in heater fault detection enhances safety and minimizes equipment damage risk.
-
Modular and Socketable Design: DIN rail mountable with plug-in connections for easy installation, maintenance, and replacement.
-
Compact Form Factor: Measures just 130×112×30 mm, ideal for high-density control panels or distributed automation systems.
-

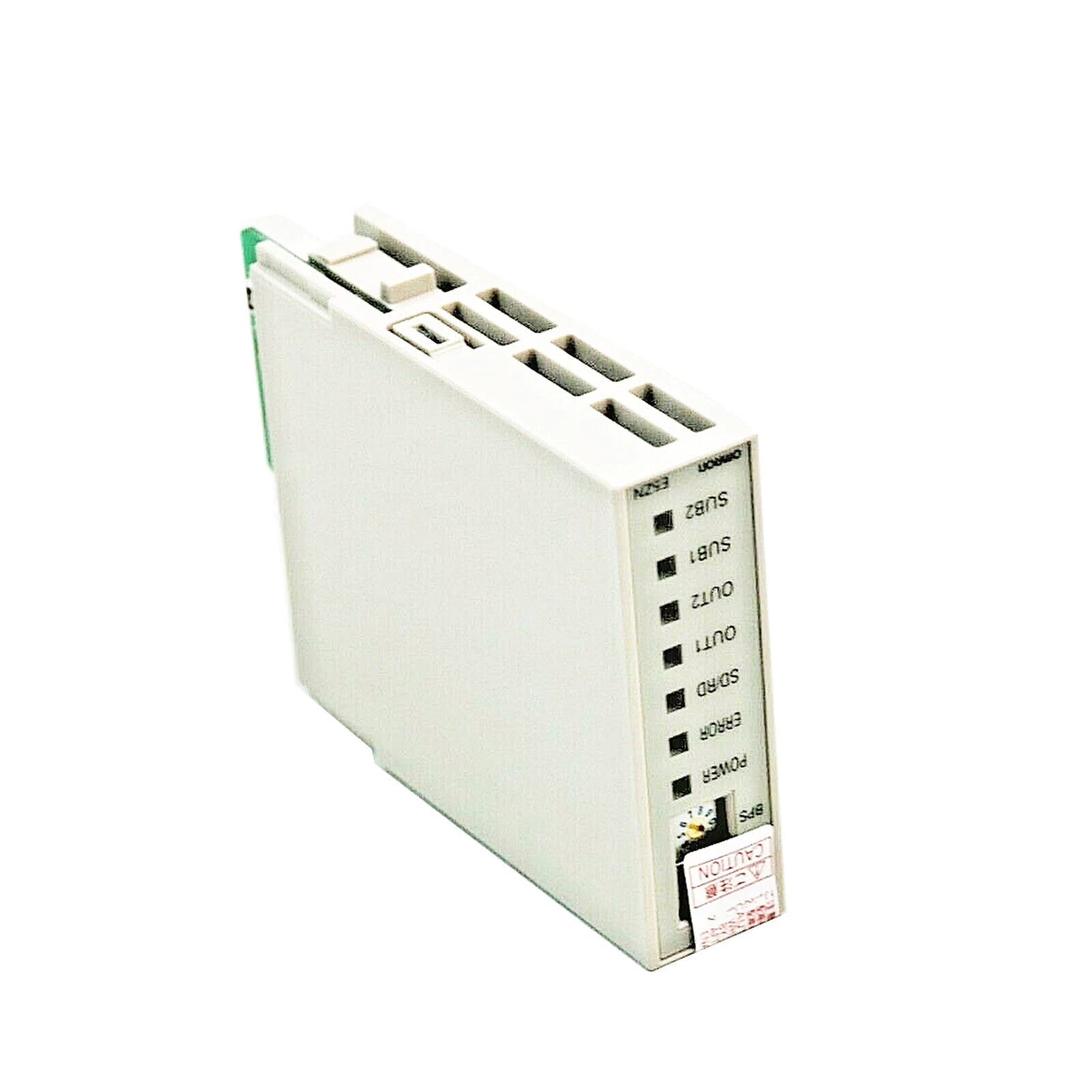

LED Status Indicators: Provides visual monitoring of operational status, alarms, and control output activity.
The E5ZN-2QNH03TC-FLK delivers the reliability and precision required for space-efficient, multi-loop temperature control in advanced thermal management applications.
