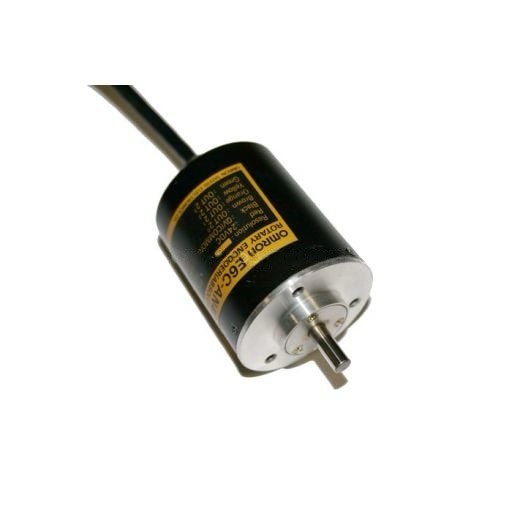

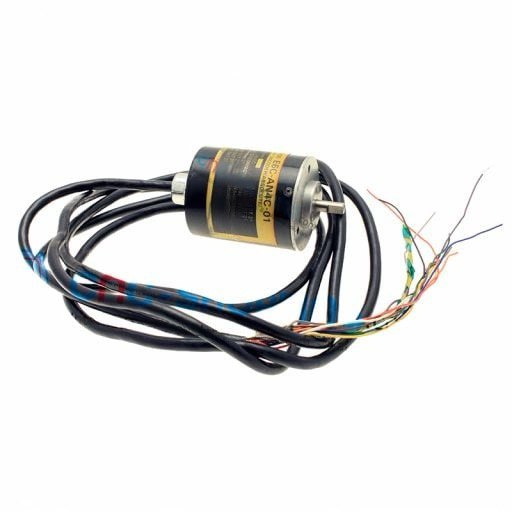

E6C-AN4C-03 | Omron Absolute Rotary Encoder
- Regular price
- $1,124.00
- Sale price
- $1,124.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: E6C-AN4C-03
Description
The E6C-AN4C-03 is a compact absolute rotary encoder designed for reliable position detection with binary output. Operating at 24 VDC, it features an NPN open collector and pre-wired connection for easy installation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Sensors & Switches
|
| Part Number | E6C-AN4C-03 |
| Subcategory | Encoder/Resolver |
| Series | E6C Series |
| Output Type | Binary Code |
| Output Interface | NPN Open Collector |
| Operating Voltage | 24 VDC |
| Shaft Diameter | 6 mm |
| Shaft Length | 15.5 mm |
| Connection Type | Pre-Wired |
| Protection Rating | IP52 |
| Weight | 0.80 lbs |
Information About E6C-AN4C-03
The E6C-AN4C-03 is part of Omron’s E6C series of absolute rotary encoders, providing precise angular position feedback in binary-coded format. Designed for use in automation systems requiring consistent and non-volatile position tracking, it operates on a 24 VDC power supply and delivers output via an NPN open collector. The encoder features a 6 mm shaft diameter with a 15.5 mm shaft length, making it suitable for compact mechanical setups. Its pre-wired configuration streamlines installation, while the IP52 protection rating ensures resistance to dust and light water exposure. Built for durability and accuracy, the E6C-AN4C-03 helps maintain system reliability in various industrial environments.
Key Features:
- Absolute Position Sensing: Maintains angular position information without the need for homing on startup.
- Binary Output Code: Outputs positional data in binary format, ideal for simple and fast integration into digital control systems.
- NPN Open Collector Output: Compatible with a wide range of input circuits and supports direct interfacing with PLCs.
- 24 VDC Operating Voltage: Ensures stable performance and reliable signal output in industrial settings.
- Compact Shaft Design: Equipped with a 6 mm diameter and 15.5 mm length shaft for integration into space-constrained applications.
- Pre-Wired for Easy Setup: Factory-wired connection eliminates the need for additional connectors or adapters.
- IP52 Protection Rating: Offers protection against dust and dripping water for standard industrial environments.
- Durable Mechanical Construction: Engineered for longevity in continuous-use motion applications.
- Simple Mounting and Alignment: Shaft and body design allow straightforward integration with couplings and mechanical assemblies.
- Consistent Output Accuracy: Provides stable feedback even during power interruptions or resets.
The E6C-AN4C-03 delivers consistent, absolute positional feedback with minimal wiring effort, making it a practical choice for basic motion control tasks.
