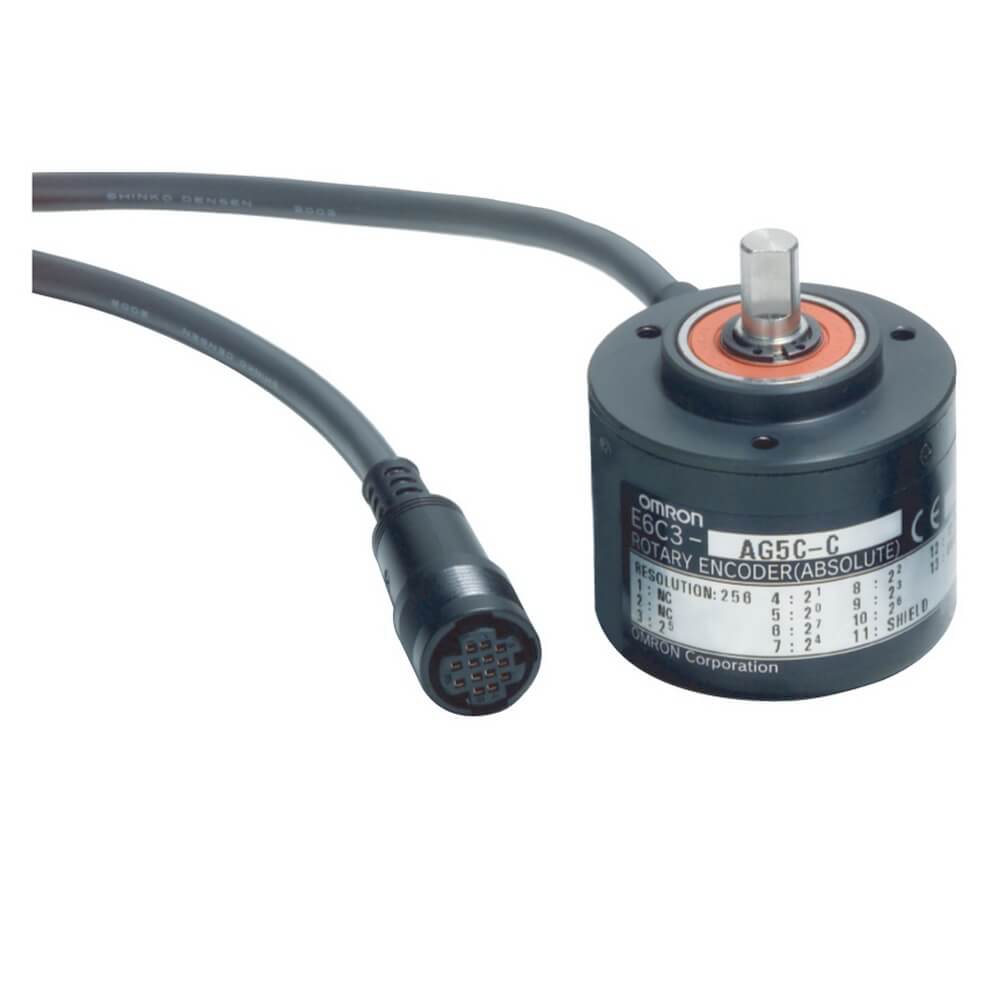

E6C3-AG5C-C | Omron Absolute Rotary Encoder 360 P/R Gray Code NPN Output
- Regular price
- $937.00
- Sale price
- $937.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E6C3-AG5C-C
Description
The Omron E6C3-AG5C-C is an absolute rotary encoder designed for accurate shaft position detection in industrial automation systems. It provides 360 pulses per revolution using Gray code output and operates on a 12–24 VDC power supply. This encoder is suitable for applications requiring reliable position feedback under demanding operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E6C3-AG5C-C |
| Subcategory | Encoder/Resolver |
| Encoder Type | Absolute rotary encoder |
| Resolution | 360 pulses per revolution |
| Output Code | Gray code |
| Output Type | NPN open collector |
| Supply Voltage | 12–24 VDC |
| Max Rotation Speed | 5000 rpm |
| Response Frequency | Up to 20 kHz |
| Shaft Diameter | 10 mm |
| Housing Diameter | 50 mm |
| Protection Rating | IP65 |
| Cable Length | 2 m (pre-wired) |
| Weight | 0.75 lbs |
Information About E6C3-AG5C-C
The E6C3-AG5C-C is an absolute encoder from Omron’s E6C3 series, built with a robust 50 mm diameter aluminum housing for industrial environments. It is designed for direct shaft mounting and is compatible with PLCs and control systems requiring Gray code absolute position signals. The unit features an NPN open collector output and supports high-speed response up to 20 kHz. Its IP65-rated construction ensures dependable operation in environments exposed to dust, oil, and vibration.
Key Features:
-
Absolute Position Detection: Provides true absolute position feedback without the need for homing.
-
360 P/R Resolution: Delivers precise angular position information per full rotation.
-
Gray Code Output: Ensures stable signal transmission during position changes.
-
NPN Open Collector Output: Compatible with standard industrial control inputs.
-
Wide DC Supply Range: Operates on 12–24 VDC for flexible system integration.
-
High Mechanical Durability: Supports shaft speeds up to 5000 rpm with strong vibration and shock resistance.
-
IP65 Protection Rating: Suitable for harsh industrial environments with dust and oil exposure.
The E6C3-AG5C-C delivers the reliability and precision required for industrial rotary position sensing and motion control applications.
