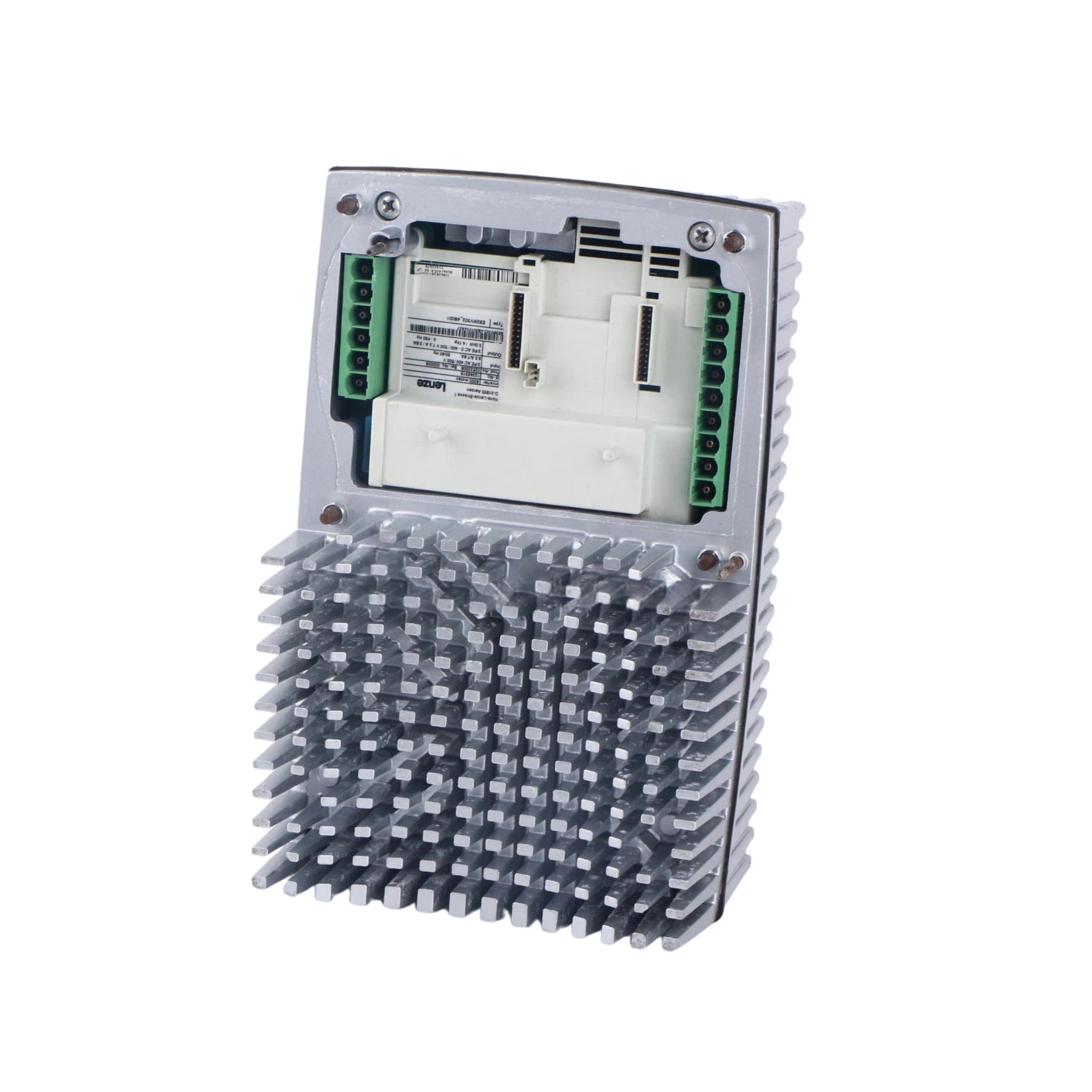

E82MV302-4B001 | Lenze Series 8200 3 kW Three-Phase Frequency Inverter
- Regular price
- $2,995.00
- Sale price
- $2,995.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E82MV302-4B001
Description
The Lenze E82MV302-4B001 frequency inverter is a compact drive designed for precise speed and torque control of three-phase AC motors in industrial automation systems. Rated at 3 kW, it supports variable frequency operation for efficient motor performance across a wide operating range. This inverter is well suited for decentralized and cabinet-based motor control applications requiring reliable power regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Industrial Automation |
| Part Number | E82MV302-4B001 |
| Subcategory | Frequency Inverters |
| Product Line | Series 8200 |
| Device Version | Version 001 |
| Product Type | Frequency Inverter |
| Input Phase Type | 3-Phase Input |
| Rated Power | 3 kW |
| Horsepower Rating | 4.1 HP |
| Power Supply Voltage | 400–500 VAC |
| Input Frequency | 50–60 Hz |
| Rated Input Current | 7.6–9.5 A |
| Maximum Output Current | 11 A |
| Output Frequency Range | 0–650 Hz |
| Power Loss | 140 W |
| Ambient Operating Temperature | -20 to 60°C |
| Storage Temperature | -25 to 60°C |
| Mounting Position | Any Orientation |
| Weight | Approx. 4.5 kg |
Information About E82MV302-4B001
The E82MV302-4B001 is part of the Lenze Series 8200 frequency inverter family, engineered for flexible motor control in standard industrial environments. It features a robust design that supports three-phase input power and accommodates a wide voltage and frequency range for global compatibility. The unit is intended for use with asynchronous motors and integrates proven Lenze drive technology for stable operation and consistent output control. Its design allows installation in any mounting position, making it adaptable to diverse system layouts and space constraints.
Key Features:
- Series 8200 Drive Platform: Designed within Lenze’s established 8200 series for dependable industrial motor control.
- Three-Phase Power Input: Supports 400–500 VAC three-phase supply for stable high-power operation.
- 3 kW Rated Output Power: Suitable for medium-duty motor applications requiring consistent torque and speed regulation.
- Wide Output Frequency Range: Adjustable output from 0 to 650 Hz for precise speed control across operating conditions.
- High Output Current Capacity: Delivers up to 11 A maximum output current for demanding load requirements.
- Flexible Mounting Orientation: Can be installed in any position without affecting performance or cooling.
- Extended Temperature Tolerance: Operates reliably in ambient temperatures from -20°C to 60°C.
The E82MV302-4B001 delivers the reliability and precision required for controlled motor operation in industrial automation and drive control systems.
