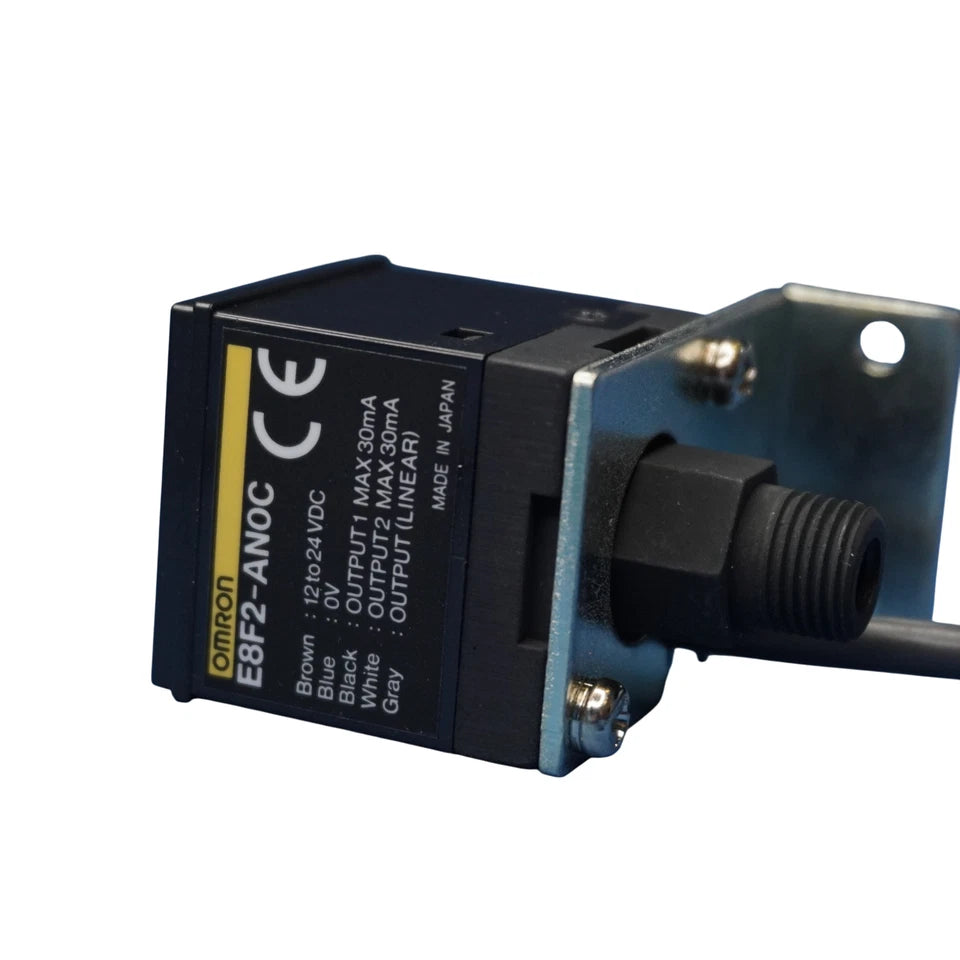

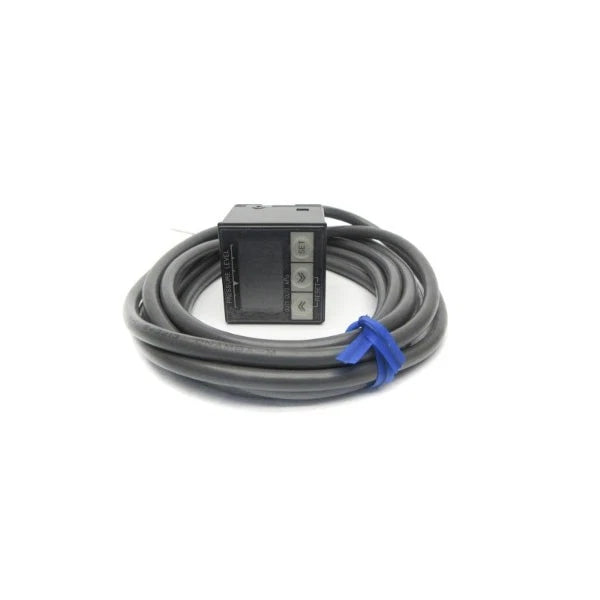

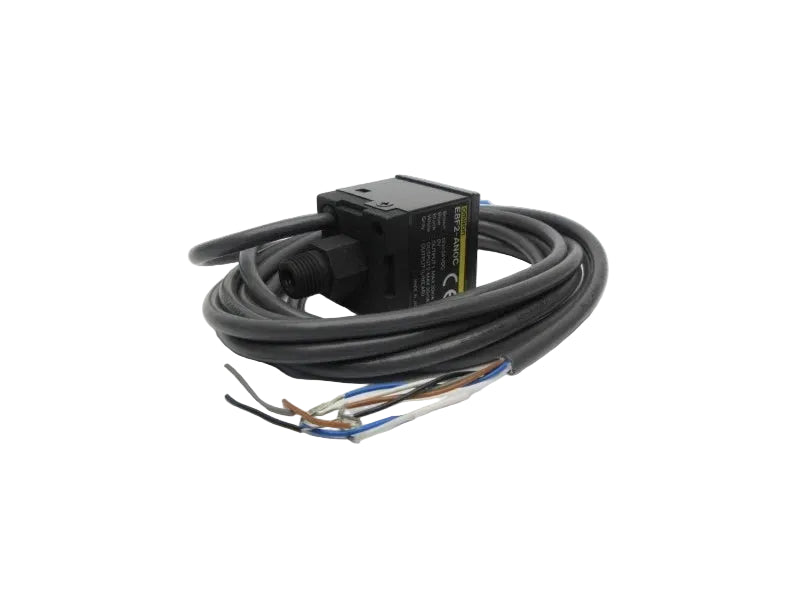

E8F2-AN0C | Omron E8F2 Vacuum Pressure Sensor 0 to -101 kPa 1–5V Output
- Regular price
- $677.00
- Sale price
- $677.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E8F2-AN0C
Description
The Omron E8F2-AN0C is a compact vacuum pressure sensor designed for precise monitoring of negative pressure in industrial automation systems. It measures pressure in the range of 0 to -101 kPa and provides both analog and digital output signals for control applications. This sensor is commonly used in vacuum systems, pneumatic equipment, and process monitoring environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | E8F2-AN0C |
| Subcategory | Pressure Sensor/Transducer |
| Series | E8F2 |
| Pressure Type | Vacuum / Gauge |
| Operating Pressure Range | 0 to -101 kPa |
| Maximum Pressure | -400 kPa |
| Output Type | Analog voltage and NPN open collector |
| Analog Output Range | 1–5 VDC |
| Supply Voltage | 12–24 VDC |
| Accuracy | ±3% |
| Port Size | M5 female / 1/8 in threaded |
| Mounting Type | Panel mount |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 36 × 28 × 28 mm |
| Weight | 3.88 oz |
Information About E8F2-AN0C
The E8F2-AN0C is part of the Omron E8F2 series of compact pressure sensors engineered for industrial automation and pneumatic control systems. It uses a vacuum sensing mechanism to detect pressure changes and converts them into electrical signals for monitoring and control equipment. The sensor provides a 1–5 V analog output along with digital open-collector outputs for integration with PLCs and control circuits. Its compact cube-style housing with panel mounting capability allows installation in machinery, control panels, and vacuum systems where space is limited.
Key Features:
-
Vacuum Pressure Measurement: Detects negative pressure from 0 to -101 kPa for vacuum system monitoring.
-
Analog Output Signal: Provides a linear 1–5 VDC output for accurate process measurement.
-
Digital Switching Output: Includes NPN open-collector outputs for direct PLC interface.
-
Compact Sensor Design: Mini-cube housing allows installation in tight industrial spaces.
-

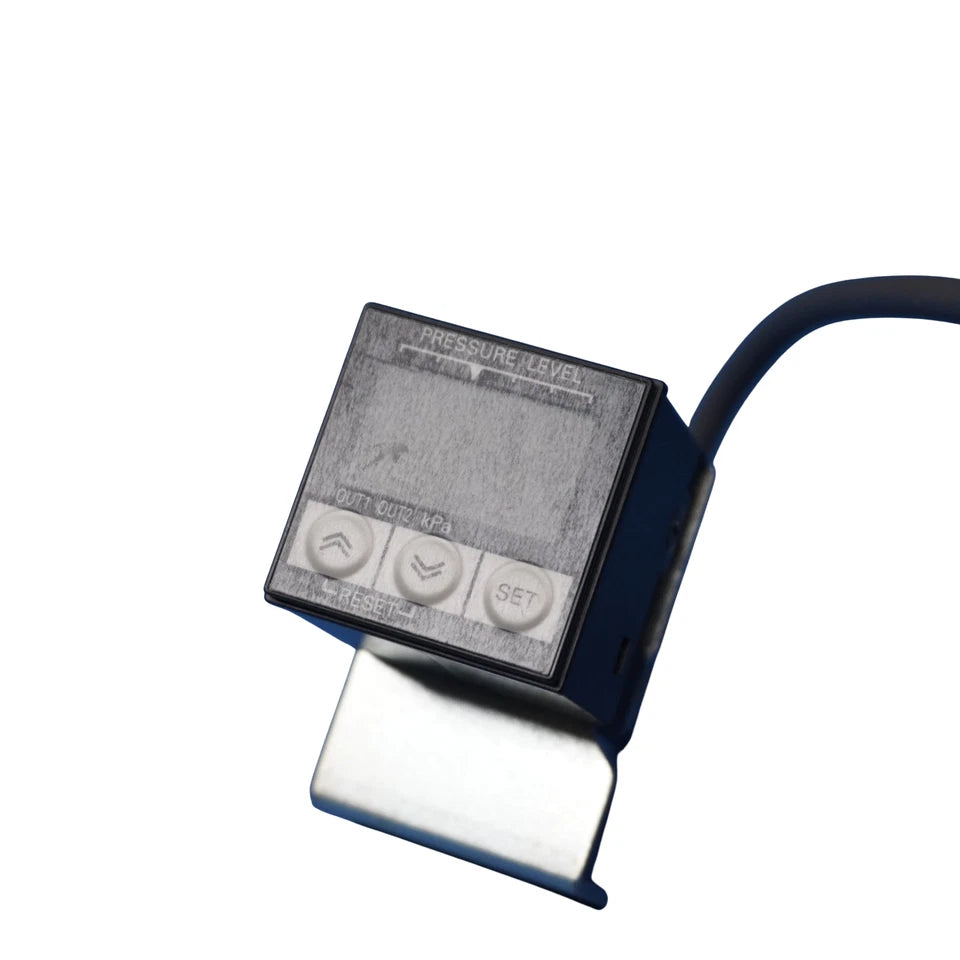

Panel Mount Installation: Designed for mounting in machine panels or equipment frames.
-

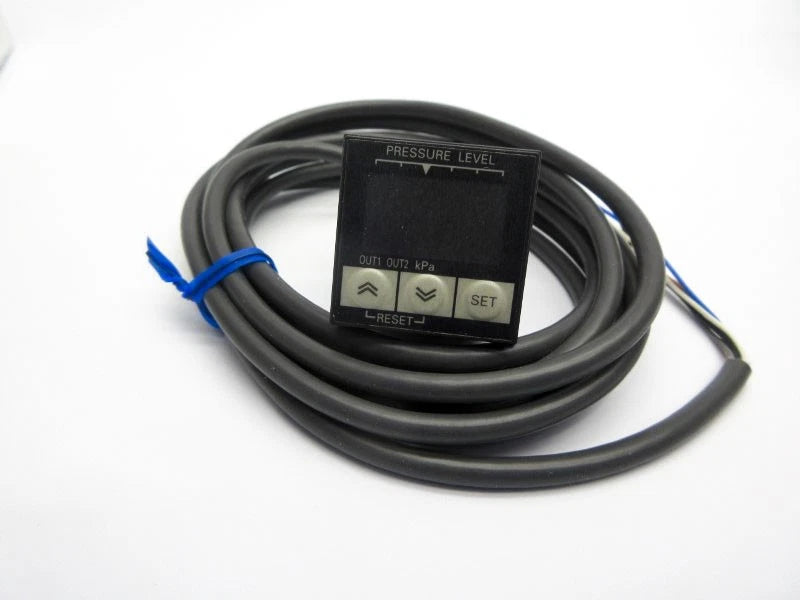

LED Display Integration: Enables visual monitoring of pressure levels during operation.
-

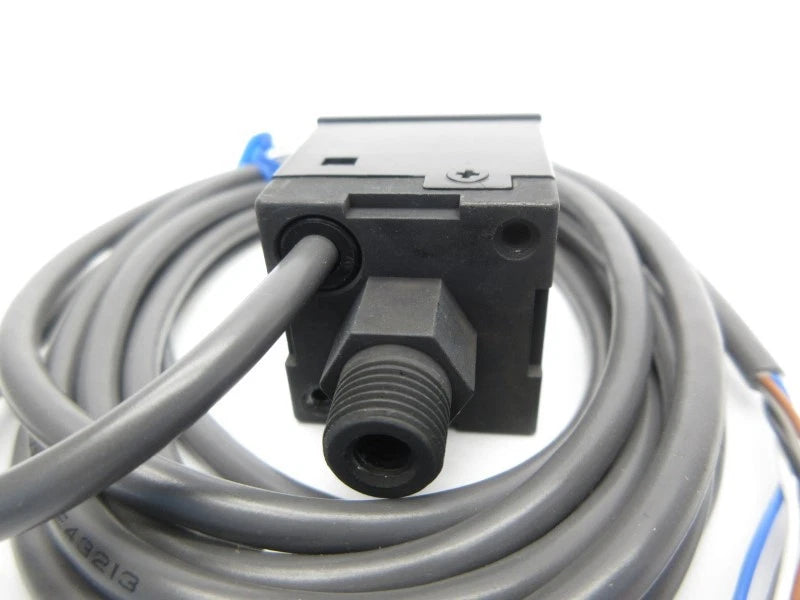

Dual Port Compatibility: Supports M5 female and 1/8-inch threaded pressure ports.
-
Industrial Automation Integration: Suitable for vacuum control, pneumatic systems, and process monitoring.
The E8F2-AN0C delivers the reliability and precision required for vacuum pressure monitoring in industrial automation and pneumatic control systems.
