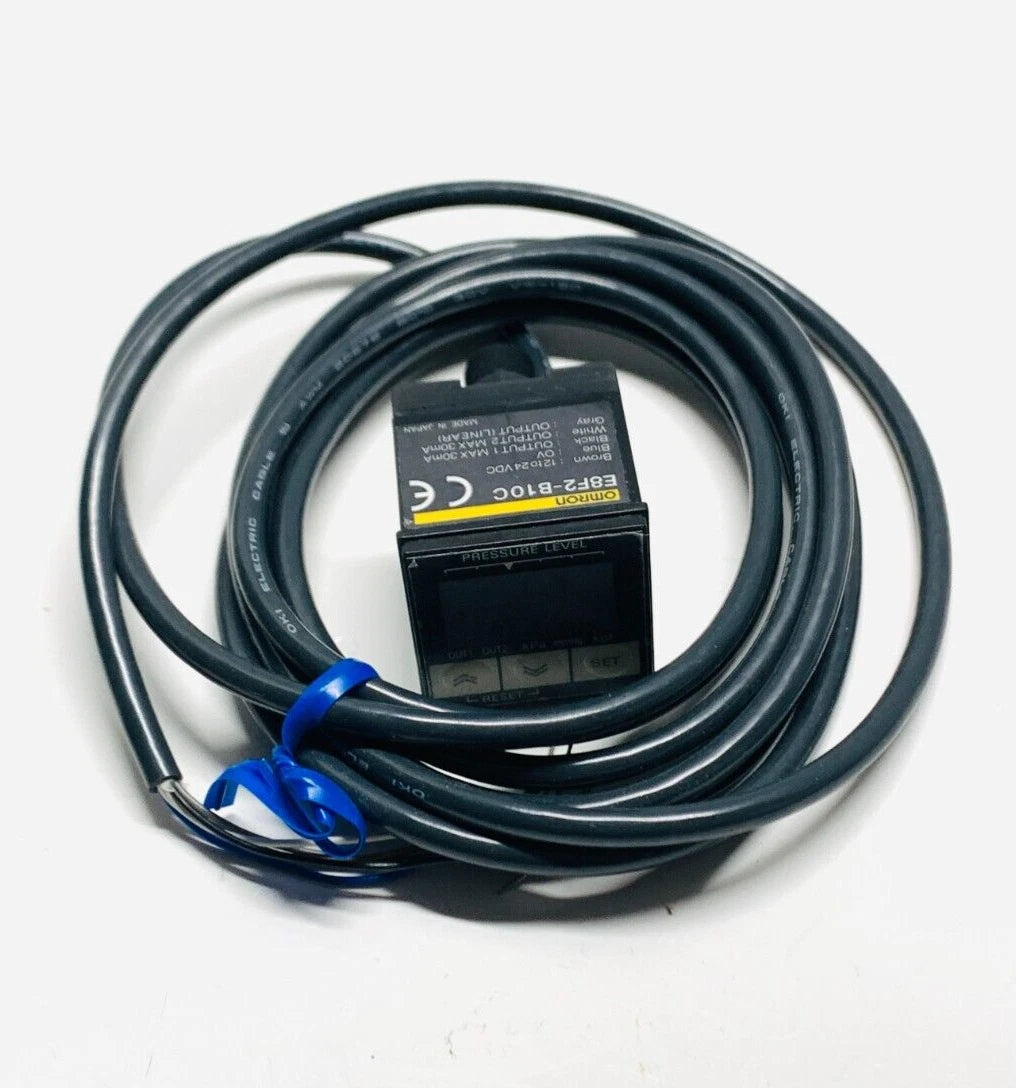

E8F2-B10C | Omron Gauge Pressure Sensor 0–1 MPa LED Display NPN
- Regular price
- $407.00
- Sale price
- $407.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E8F2-B10C
Description
The Omron E8F2-B10C is a compact gauge pressure sensor designed for monitoring positive pressure in industrial automation systems. It features a built-in LED display, analog voltage output, and dual NPN switching outputs for precise pressure control. The sensor is suitable for applications such as pick-and-place systems, object detection, and pneumatic monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | E8F2-B10C |
| Subcategory | Pressure Sensors |
| Sensor Type | Gauge Pressure Sensor |
| Pressure Range | 0 to 1 MPa (Positive Pressure) |
| Output Signal | 1 to 5 VDC |
| Switching Outputs | 2 × NPN |
| Display Type | LED Digital Display with Bar Graph |
| Supply Voltage | 24 VDC |
| Connection Type | Pre-wired Cable |
| Cable Length | 2 m |
| Housing Dimensions | 28 × 28 × 46 mm |
| Operating Mode | Hysteresis and Window Modes |
| Weight | 0.08 kg |
Information About E8F2-B10C
The E8F2-B10C is part of Omron’s E8F2 series of gauge pressure sensors, engineered for reliable pressure measurement in compact installations. It supports a positive pressure range up to 1 MPa and provides both analog and digital outputs for flexible integration. The sensor includes a large LED display that shows numeric pressure values and a bar graph simultaneously. Its pre-wired design with a fixed cable allows quick installation in control panels and automation equipment.
Key Features:
-
Positive pressure measurement: Designed for gauge pressure up to 1 MPa
-
LED display: Displays digital pressure values and analog bar graph
-
Analog output: Provides 1 to 5 VDC signal for monitoring and data acquisition
-
Dual switching outputs: Two independent NPN outputs for control logic
-
Compact housing: Small footprint suitable for space-limited installations
-
Flexible control modes: Supports hysteresis and window comparison modes
-
Simple setup: One-touch programming for upper and lower limits
The E8F2-B10C delivers the reliability and precision required for industrial pressure sensing and pneumatic control applications.
