EA-MG-PGM-CBL | Automation Direct Programming Cable Assembly
- Regular price
- $95.00
- Sale price
- $95.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EA-MG-PGM-CBL
Description
The Automation Direct EA-MG-PGM-CBL is a 6 ft programming cable assembly designed to provide reliable communication between PCs and various Automation Direct controllers. It is built to convert USB signals to RS-232C transmissions, ensuring seamless configuration of supported devices. The USB port also supplies 5VDC power to C-more Micro panels during programming.
Technical Specifications
| Brand | Automation Direct |
| Part Number | EA-MG-PGM-CBL |
| Type | Programming Cable Assembly |
| Connection 1 | USB Type A |
| Connection 2 | 6-pin RJ12 |
| Shielded | No |
| Cable Length | 6 ft |

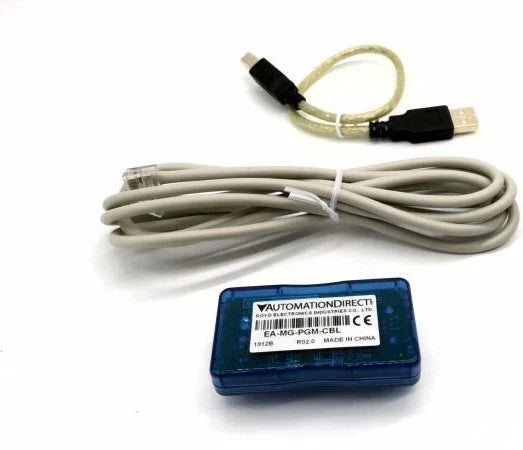

| Includes | USB A–B cable, custom converter, RS-232C RJ12–RJ12 cable |
| For Use With | C-more Micro panels, CLICK CPUs, Do-more H2 CPUs, DirectLOGIC CPUs |
| Function | USB-to-RS-232C signal conversion |
| Power | USB supplies 5VDC for panel configuration |
| Weight | 0.4 lbs |
Information About EA-MG-PGM-CBL
The EA-MG-PGM-CBL is engineered as a complete programming solution for Automation Direct C-more Micro panels, CLICK CPUs, Do-more H2 series CPUs, and DirectLOGIC CPUs equipped with RJ12 programming ports. The assembly includes a USB Type A–to–Type B cable, a custom signal converter, and an RS-232C RJ12-to-RJ12 cable, allowing straightforward plug-and-play operation. Designed to eliminate the need for specialized serial ports, the cable simplifies the configuration workflow by converting USB communications into RS-232C data streams without external power adapters. Its rugged build supports dependable use in industrial automation environments.
Key Features:
- Complete Programming Assembly: Includes USB A–to–B cable, custom converter, and dual RJ12 RS-232C cable for direct connection to multiple Automation Direct devices.
- USB-to-RS-232C Conversion: Converts USB signals into serial transmissions for reliable communication with controllers that use RJ12 ports.
- Wide Device Compatibility: Supports C-more Micro panels, CLICK CPUs, Do-more H2 CPUs, and DirectLOGIC CPUs for streamlined system configuration.
- 5VDC USB Power Supply: USB port provides power for C-more Micro panel configuration without additional adapters.
- 6-Foot Cable Length: Offers convenient reach within control panels and workstations without excess slack.
The EA-MG-PGM-CBL delivers the reliability and precision required for seamless programming and configuration of Automation Direct controller systems.
