EA3-S3ML-RN | Automation Direct C-more Micro 3" Monochrome Serial HMI
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EA3-S3ML-RN
Description

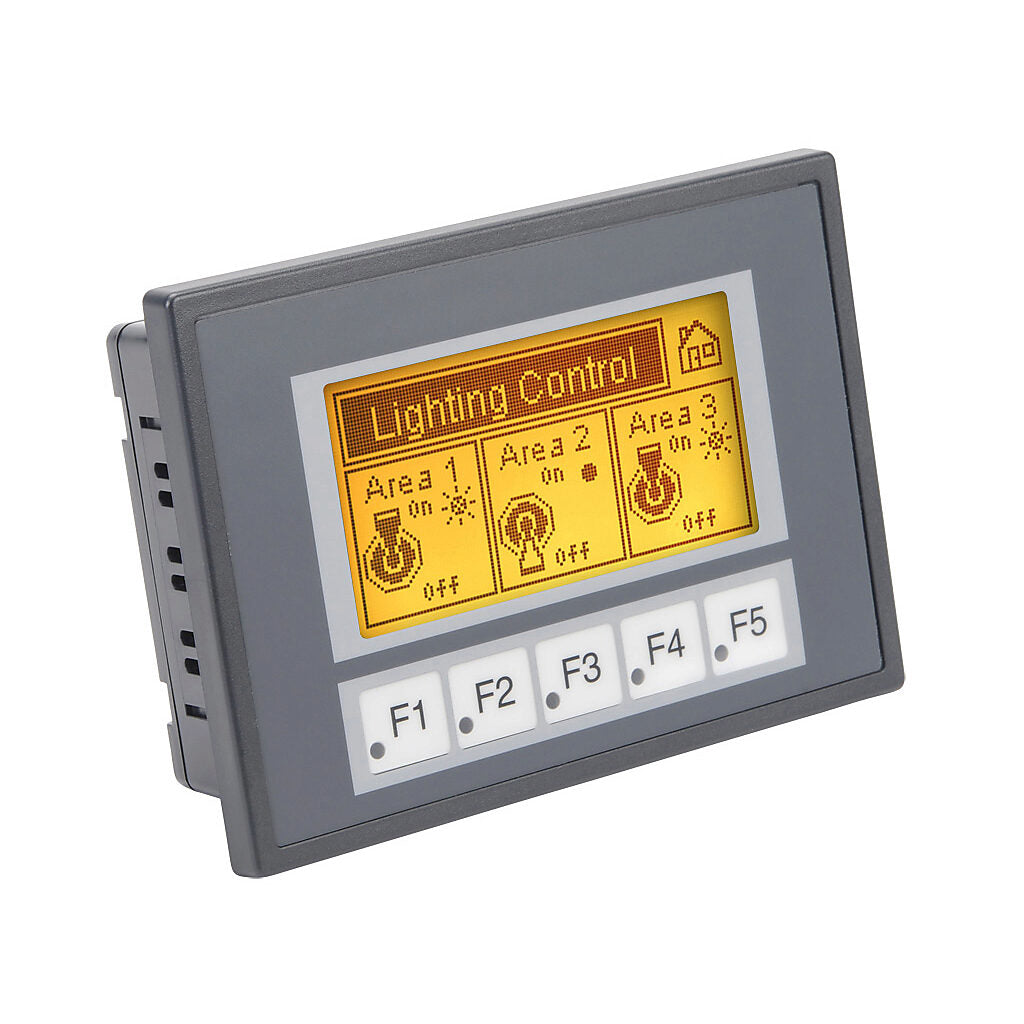

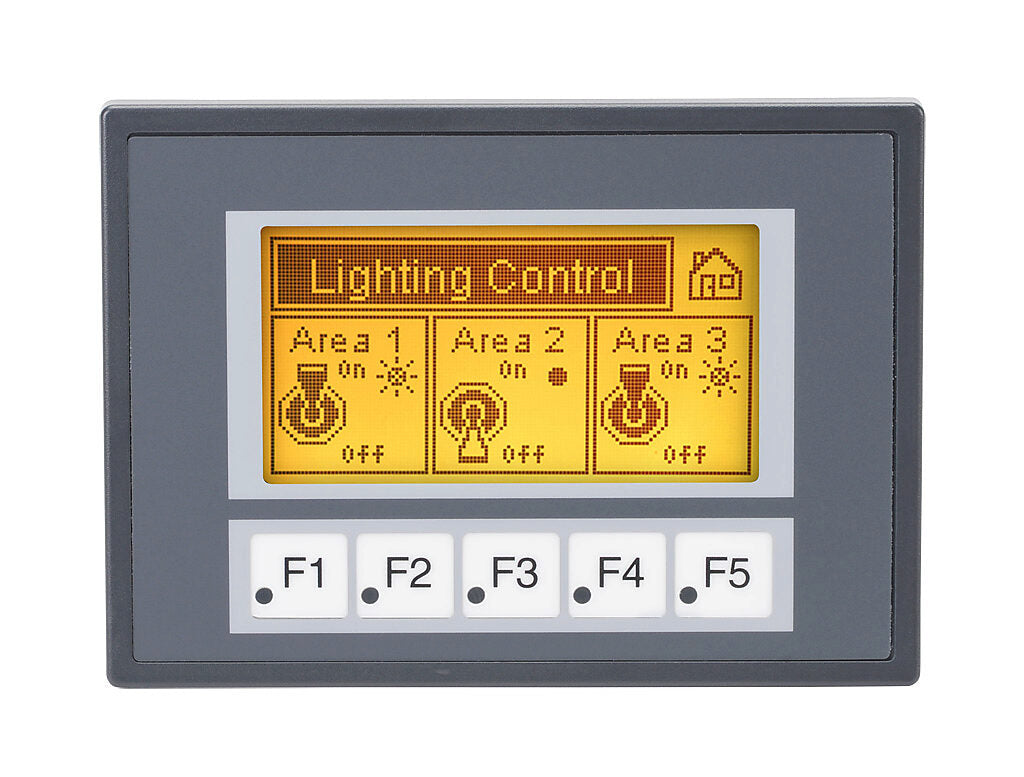

The Automation Direct EA3-S3ML-RN is a C-more Micro EA3 series 3-inch monochrome HMI designed for compact operator interface applications. It features a 128 × 64 pixel STN LCD display with selectable LED backlight colors for clear status indication. Powered by 5 VDC, this non-touch panel provides serial communication for integration with AutomationDirect PLC platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Human Machine Interface (HMI) |
| Part Number | EA3-S3ML-RN |
| Subcategory | Micro HMIs |
| Series | C-more Micro EA3 |
| Display Size | 3 in (3.1 in viewable) |
| Display Type | Monochrome STN LCD |
| Resolution | 128 × 64 pixels |
| Maximum Colors | 12-color monochrome backlight options |
| Brightness | 150 nits |
| Touch Screen | No |
| Display Orientation | Landscape |
| Backlight Type | LED (selectable colors) |
| Power Requirement | 5 VDC |

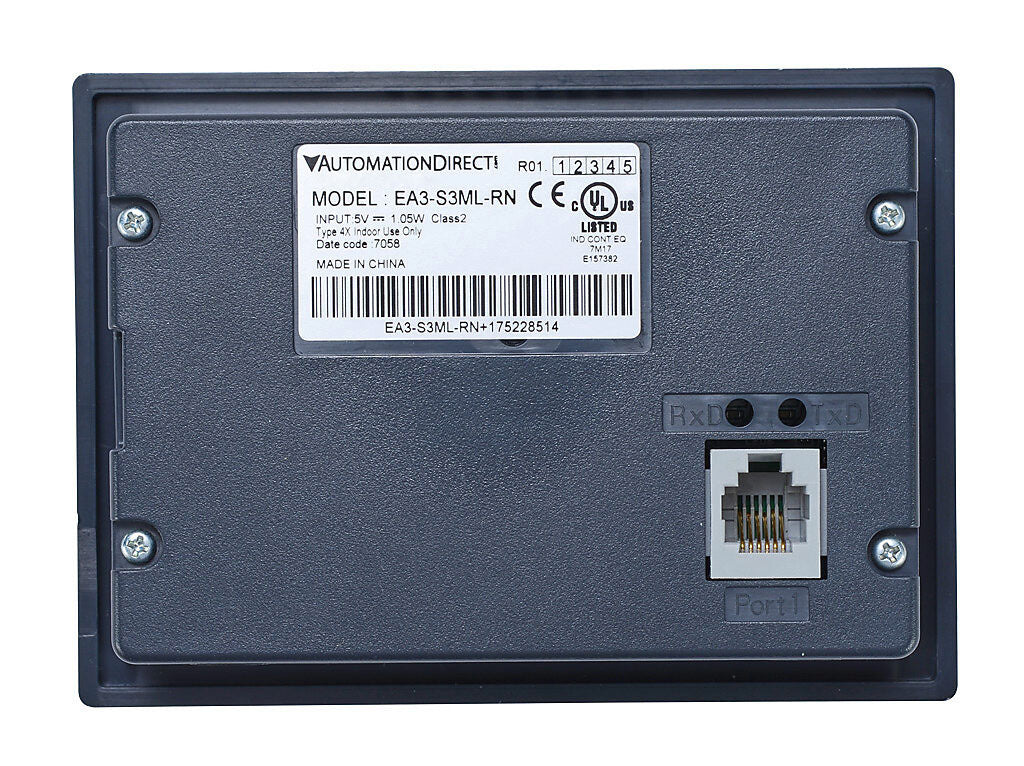

| Communication Port | (1) RS-232 (RJ12) |
| Supported Protocols | CLICK serial, DirectLOGIC K-Sequence/DirectNET, Do-more/BRX serial, Productivity serial, Modbus RTU Master |
| Port Speed | Up to 38.4k baud |
| Mounting | Panel mount |
| Housing Rating | NEMA 1 (NEMA 4/4X with optional gasket) |
| IP Rating | IP20 (IP65 with optional gasket) |
| Programming Software | EA-MG-PGMSW v4.3 or later |
| Includes | Mounting hardware |
| Additional Information | Power supplied through RJ12 when used with AutomationDirect PLCs |
| Weight | 0.5 lb |
Information About EA3-S3ML-RN
The EA3-S3ML-RN is part of the C-more Micro EA3 series of compact HMIs engineered for simple machine control and monitoring tasks. It utilizes a 3.1-inch monochrome STN LCD display with 12-color backlight options to enhance visibility and status differentiation. The unit communicates through an RS-232 (RJ12) port supporting multiple AutomationDirect PLC protocols and Modbus RTU Master functionality. Designed for panel mounting, it meets NEMA 1 and IP20 ratings, with optional gasket accessories available to achieve NEMA 4/4X and IP65 protection for more demanding environments.
Key Features:
- 3.1-Inch Monochrome Display: 128 × 64 pixel STN LCD for clear text and graphic presentation.
- Selectable LED Backlight Colors: Multiple color options for enhanced status indication and extended display life.
- Serial Communication Port: RS-232 (RJ12) interface supporting AutomationDirect and Modbus RTU protocols.
- 5 VDC Power Requirement: Low-voltage operation suitable for compact control systems.
- PLC Compatibility: Works with CLICK, DirectLOGIC, Do-more/BRX, Productivity Series, and Modbus RTU devices.
- Panel Mount Design: Compact footprint for installation in control enclosures.
- Expandable Environmental Protection: Optional gasket enables NEMA 4/4X and IP65 front protection.
- Software Configuration: Programmed using EA-MG-PGMSW software v4.3 or later.
The EA3-S3ML-RN delivers the reliability and precision required for compact industrial operator interface and machine monitoring applications.
