EA3-T6CL | Automation Direct C-more Micro 6 IN Touch Screen HMI EA3 Series

Description

Technical Specifications

Information About EA3-T6CL

The EA3-T6CL is a 6-inch Touch Screen HMI (Human-Machine Interface) designed by Automation Direct as part of the C-more Micro EA3 Series. This advanced interface unit is categorized under HMI/MMI/OIT, specifically within the subcategory of OIT Replacement Display/Touch. Engineered to provide operators with a reliable and user-friendly interface for monitoring and controlling industrial processes, the EA3-T6CL is a robust solution for a wide range of automation applications.

Weighing 2.00 lbs, the EA3-T6CL is compact and lightweight, making it suitable for installation in various industrial environments where space efficiency and durability are important. Despite its modest weight, the unit is built to withstand the demanding conditions often found in industrial settings, such as exposure to dust, vibrations, and temperature variations. The solid construction of the EA3-T6CL ensures long-term reliability and consistent performance, making it a dependable choice for operators who need a reliable interface for controlling critical processes.

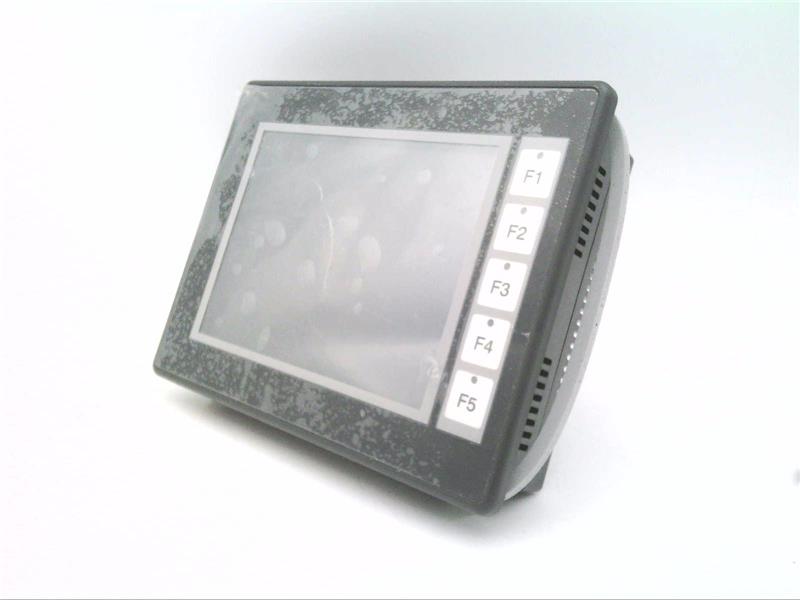

The EA3-T6CL features a 6-inch Color TFT LCD display, offering clear and vibrant visuals that enhance the usability of the interface. The display's resolution of 320 x 240 pixels (QVGA) ensures that graphics, text, and data are rendered with sufficient clarity for accurate monitoring and control. This level of resolution is particularly beneficial in applications where precise data visualization is required, allowing operators to quickly interpret information and make informed decisions.

The inclusion of an LED backlight in the EA3-T6CL ensures that the display remains bright and easily readable even in low-light conditions. The LED backlight provides consistent illumination across the screen, reducing eye strain and enhancing the overall user experience. This feature is especially important in industrial environments where lighting conditions can vary, ensuring that the interface remains fully functional and accessible at all times.

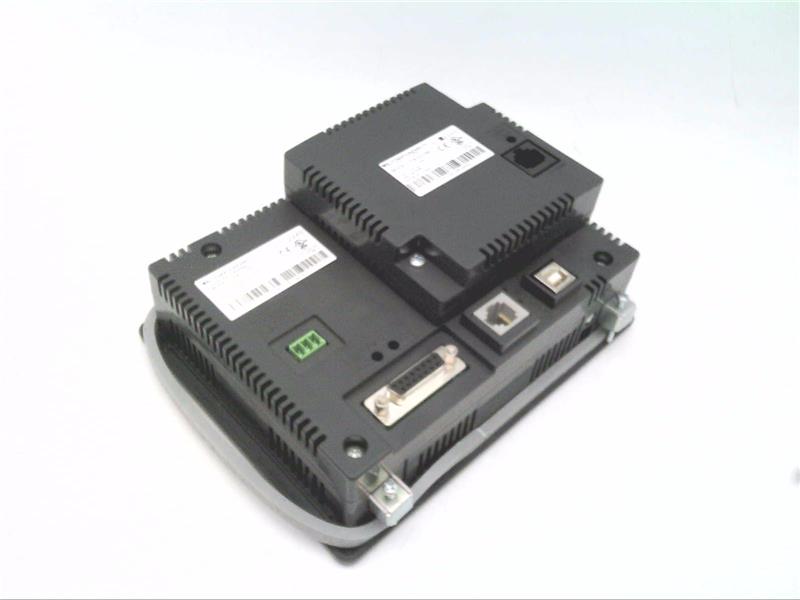

In terms of connectivity, the EA3-T6CL is equipped with multiple ports that enhance its versatility and integration capabilities. The unit supports two serial ports, which allow for communication with various industrial devices such as PLCs, sensors, and other control equipment. These serial ports provide a reliable and efficient means of data exchange, ensuring that the HMI can interact seamlessly with other components of the automation system. Additionally, the EA3-T6CL includes a USB port, which offers further flexibility in connecting external devices, such as USB flash drives for data storage or firmware updates. The presence of multiple ports makes the EA3-T6CL a versatile tool in complex automation setups, where robust communication and data handling capabilities are essential.

The C-more Micro EA3 Series, to which the EA3-T6CL belongs, is known for its compact design and user-friendly interfaces. This series is specifically designed to provide high-quality HMIs that are both affordable and easy to use, making them ideal for small to medium-sized automation projects. The EA3-T6CL upholds the series' reputation by offering an interface that is both powerful and straightforward to operate, reducing the learning curve for new users and enhancing productivity.

One of the key strengths of the EA3-T6CL is its ability to serve as a replacement display/touch unit for existing systems. This capability is particularly valuable in industrial environments where maintaining continuity of operations is critical. By providing a drop-in replacement for older or damaged units, the EA3-T6CL helps to minimize downtime and ensures that control systems remain operational without the need for extensive reconfiguration or retraining.

The touch screen functionality of the EA3-T6CL further enhances its usability, allowing operators to interact directly with the interface through intuitive touch commands. This feature simplifies navigation and control, making it easier for operators to access the information and controls they need quickly. The touch screen is responsive and durable, designed to handle the frequent use and occasional rough handling that can occur in industrial settings.

In summary, the EA3-T6CL from Automation Direct is a high-quality, reliable, and versatile HMI designed for use in industrial automation systems. With its 6-inch Color TFT LCD display, 320 x 240 pixel resolution, LED backlight, and multiple connectivity options, it provides a robust interface for monitoring and controlling processes. The unit’s compatibility with the C-more Micro EA3 Series ensures seamless integration with existing systems, making it an ideal choice for both new installations and as a replacement unit in established setups. Whether used in manufacturing, process control, or other automation applications, the EA3-T6CL offers the performance and reliability needed to support efficient and effective operations.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
