Product Description P/N: EA7-T6CL-R
Description

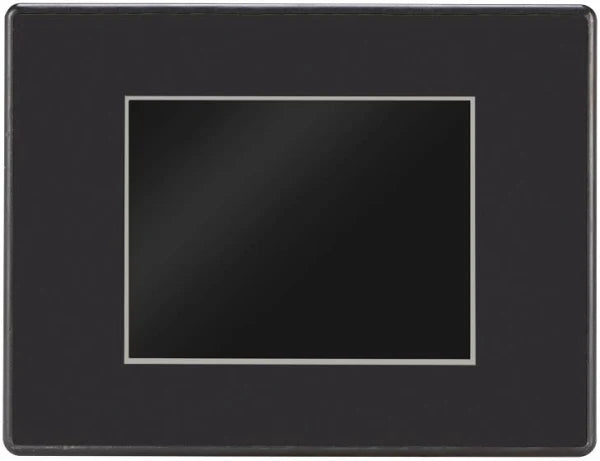

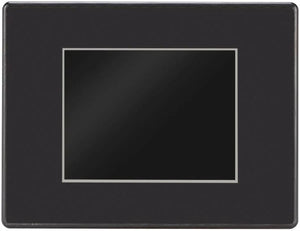

The Automation Direct EA7-T6CL-R is a human machine interface touch panel display that is a member of the C-more EA7 series.
Technical Specifications
Brand | Automation Direct |
Category | HMI / MMI / OIT |
Part Number | EA7-T6CL-R |
Subcategory | Operator Interface |
LCD Type | TFT |
Screen Size | 5.7" |
Display Color | Color |
Backlight | LED |
Features | Base |
Software Programming | EA-PGMSW |
Information About EA7-T6CL-R
This analog resistive touch panel features a 5.7in 320x240 pixel TFT LCD display (thin-film transistor). A full-color panel, the unit supports 65,536 dynamic colors for a bright user display. Housing a 32-Bit RISC CPU, the HMI consists of 64MB of system memory (SDRAM) and 64MB of flash memory (FLASH). This integrated CPU system allows for quick memory and data transfers when connected to a USB or Ethernet port. The necessary 24VDC power supply can be drawn using an AC/DC power adapter from a 100-240VAC 50/60Hz source. This HMI is typically used in conjunction with Automation Direct EA7 software.
A base model of the EA7 series, EA7-T6CL-R features standard I/O ports for device communication. A serial PLC interface port and two USB ports make up the inputs available on the panel. The two USB inputs allow users to program data and transfer information via the port. This touch panel offers screen mirroring on a separate computer for remote observation and controlling. Not only can the mirrored screen view the displayed screen on the panel, it can also access background applications as well. A variety of languages and fonts, including Chinese, Japanese, Taiwanese, Korean, English, and Spanish, are supported on the display. The smallest manufactured touch panel display of the series, the unit weighs 1.43 pounds and measures 6.140in (H) x 8.047in (W) x 1.697in (D).
Following all instruction parameters is integral to preserving the integrity of EA7-T6CL-R. The ambient temperatures of the operating facility can affect the longevity of the display. Control temperatures so they fall no lower than 32℉, or 0℃, and no higher than 122℉, or 50℃. Storage temperatures can range further, between -4℉ and 140℉, or -20℃ to 60℃.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
