EA7-T8C | Automation Direct | Touch Panel

Description

Technical Specifications

Information About EA7-T8C

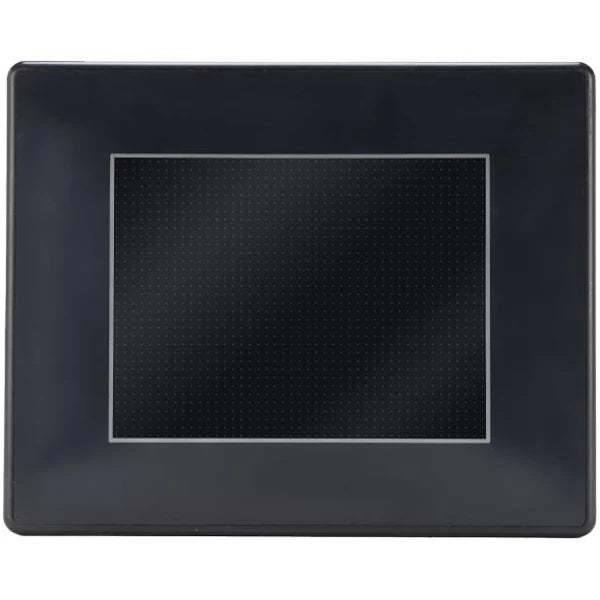

The EA7-T8C is a robust and versatile operator interface manufactured by Automation Direct, specifically designed under the PLC Direct brand. This operator interface is an integral component within the HMI/MMI/OIT category, providing an efficient and reliable solution for controlling and monitoring industrial processes. As part of the EA7 Series, the EA7-T8C is engineered to meet the demanding needs of modern industrial environments, ensuring both ease of use and durability.

This operator interface features an 8-inch color TFT LCD display, offering a clear and vibrant visual experience. With a resolution of 640 x 480, the EA7-T8C provides sharp and detailed graphics, allowing operators to interact with the system through a highly responsive touchscreen interface. The touchscreen input type ensures intuitive operation, enabling users to quickly navigate through menus, monitor real-time data, and make adjustments as needed, enhancing overall productivity.

Designed for industrial applications, the EA7-T8C is equipped with a variety of connection options to ensure seamless integration with existing systems. It includes one serial port (RS-232/422/485) for traditional communication methods, and an Ethernet port (10/100 Mbps) for network connectivity, allowing for flexible data exchange and remote monitoring capabilities. Additionally, the unit features two USB ports (2.0 Type A and 2.0 Type B), which provide convenient options for connecting external devices such as printers, storage devices, or programming tools, further extending the functionality of the operator interface.

The EA7-T8C operates on a 24 VDC power supply, making it compatible with standard industrial power systems. Its power-efficient design ensures reliable performance without excessive energy consumption, contributing to cost-effective operation over the long term. The unit’s robust construction is complemented by its NEMA 4/4X and IP65 ratings, indicating a high level of protection against dust, water, and other environmental factors. This makes the EA7-T8C suitable for use in both indoor and outdoor environments, including harsh industrial settings where exposure to the elements is a concern.

For additional data storage and program flexibility, the EA7-T8C is equipped with a CompactFlash memory card slot. This allows users to easily expand the device’s storage capacity, store critical data, or transfer programs between different systems, enhancing the versatility and adaptability of the operator interface.

The EA7-T8C’s user-friendly design and advanced features make it an essential tool for operators who require a reliable and efficient interface for controlling and monitoring industrial processes. Its integration into the EA7 Series family underscores its compatibility with other Automation Direct products, ensuring a cohesive and comprehensive automation solution.

In summary, the EA7-T8C from Automation Direct is a high-quality operator interface that combines advanced functionality with rugged durability. Its 8-inch color touchscreen, wide range of connectivity options, and robust environmental protection make it an ideal choice for demanding industrial applications. Whether used in a new installation or as an upgrade to an existing system, the EA7-T8C is engineered to deliver reliable performance and enhance the efficiency of industrial operations.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
