EA9-T7CL-R | Automation Direct 7 " color TFT LCD touch screen
- Regular price
- $868.00
- Sale price
- $868.00
- Regular price
-
Do you need more quantity?
Product Description P/N: EA9-T7CL-R
Description

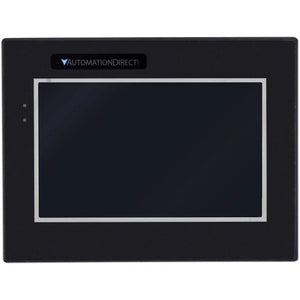

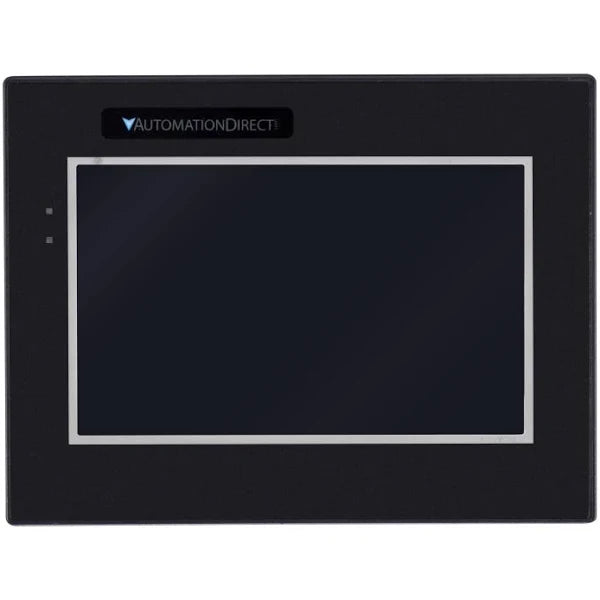

The Automation Direct EA9-T7CL-R is a 7-inch color TFT LCD touch screen, delivering intuitive and responsive control in industrial applications. With vibrant visuals, this HMI enhances user interface and provides efficient interaction for diverse automation processes.
Technical Specifications
Brand | Automation Direct |
Item | HMI |
Part Number | EA9-T7CL-R |
Series | EA9 |
Touch Screen | Yes |
Display Size | 7in |
Viewable Size | 7in |
Display Type | Color TFT LCD |
Widescreen | Yes |
Display Maximum Colors | 64K colors |
Display Resolution (W x H) | 800 x 480 pixel |
Display Video Standard | WVGA |
Display Orientation | Landscape |
Backlight Type | LED |
CPU Clock Speed | 800 MHz |
Power Requirement | 12-24 VDC |
Housing Rating | NEMA 4/4X |
Environmental Requirements | Indoor use only |
IP Rating | IP65 |
Serial Ports | (1) RS-232/422/485 |
Ethernet Ports | (1) 10/100 Mbps |
USB Ports | (1) 2.0 Type A and (1) 2.0 Type B |
Card Slots | (1) SD memory card |
Software Required | EA9-PGMSW programming software v6.3 or later |
Includes | Mounting hardware and gasket |
Information About EA9-T7CL-R
The Automation Direct EA9-T7CL-R is a feature-rich 7-inch color TFT LCD touch screen designed for advanced Human-Machine Interface (HMI) applications. This intuitive and responsive touchscreen provides a user-friendly interface for controlling and monitoring diverse industrial processes. The vivid color display ensures clear and detailed visuals, enhancing operator efficiency.
With a robust construction, the EA9-T7CL-R is built to withstand industrial environments. The touchscreen allows operators to interact with equipment, view real-time data, and execute commands with precision. The resistive touch technology ensures accurate input recognition, even in challenging conditions.
Equipped with a high-resolution display, the EA9-T7CL-R offers crisp graphics and readability. The touchscreen supports multi-touch gestures, facilitating intuitive navigation and control. Its compact and sleek design allows for easy integration into control panels and systems.
The HMI supports a variety of communication protocols, enabling seamless connectivity with PLCs and other automation devices. It provides flexibility for customization, allowing users to design and configure screens tailored to their specific applications.
The EA9-T7CL-R features a durable and reliable design, making it suitable for demanding industrial settings. It is equipped with versatile I/O options, enabling connections to sensors, actuators, and other devices. The touchscreen's wide operating temperature range and NEMA 4/4X, IP65 ratings make it suitable for harsh environments.
Manufacturer information
Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
