Part #: EA9-T8CL Manufactured by: Automation Direct
Regular price
$2,149.00
Sale price
$2,149.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

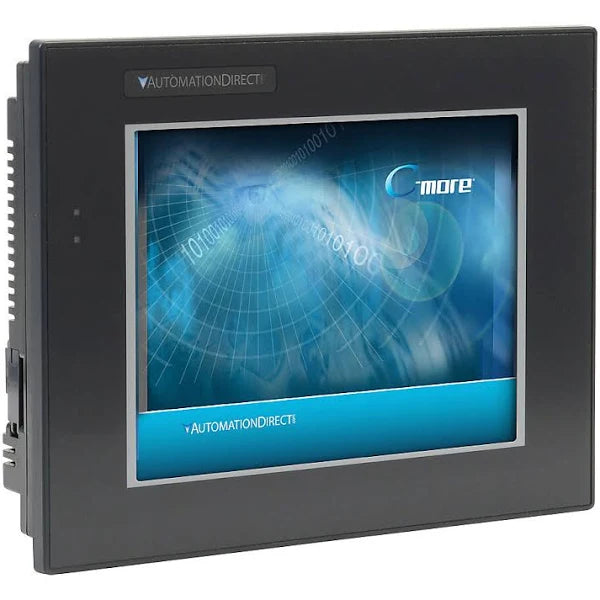

EA9-T8CL by Automation Direct C-More 8 IN Touch Screen HMI EA9 Series
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: EA9-T8CL
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Automation Direct
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: EA9-T8CL

Description / Specifications

Description

The EA9-T8CL by Automation Direct is an 8-inch color TFT LCD touch screen HMI from the C-more EA9 series. With an 800 x 600 pixel SVGA resolution and analog resistive touch technology, it offers precise interaction. The LED backlight ensures a clear display. Featuring (3) serial ports, (1) Ethernet, (2) USB ports, (1) memory card slot, and (1) audio line out, this HMI provides robust connectivity and versatile functionality for industrial applications.



Technical Specifications



Brand Automation Direct
Series EA9
Part Number EA9-T8CL
Touch Screen Yes
Display Size 8in
Viewable Size 8.4in
Display Type Color TFT LCD
Widescreen No
Display Maximum Colors 64K colors
Display Resolution 800 x 600 pixel
Display Video Standard SVGA
Touch Panel Type Analog resistive
Brightness 310nits
Display Orientation Landscape/portrait
Backlight Type LED
CPU Clock Speed 800 MHz
External Power Requirement 12-24 VDC
Housing Rating NEMA 4/4X
Environmental Requirements Indoor use only
IP Rating IP65
Mounting Panel





Information About EA9-T8CL

The display viewing area is 6.71” x 5.03”. The weight of this unit is 2.93 lbs. The typical display brightness is 310 nits typical. The LCD panel dot pitch is 0.213 mm x 0.213 mm. The screen pixels are 800 x 600 (SVGA). The color scale is 65, 536 colors and the average backlight lifetime is 50,000 hours at 25°C. The project memory, which is 26 MB, supports up to 999 screens.

There is a clock that is built into the panel that is backed up for 30 days at 25°C. There are three serial ports on the display and 2 USB ports. There is also an SD card slot, but there is no HDMI video out port. The SD card slot supports a 2 GB or a 32 GB SD card. There is a mic in 3.5 mm mini-jack. The power consumption is 18.0 watts, 1.5 amps at 12 VDC, and 0.75 amps at 24 VDC. The internal fuse, which is non-replaceable, is 6.3 amps.

This Automation Direct touch screen can withstand no more than 1 minute of 1000 VAC between the FG and the power supply (lightning strike). EN55011 Class A is the emission standard. The enclosure is a NEMA 250 type 4/4X enclosure for indoor use only (IP65). This display works up to an altitude of 2000 meters (6562 feet). This unit is UL508 approved.

The EA9-T8CL EA9 C-more panel can be set to display a number of different languages. This can be changed in the Panel Manager. The Panel Manager can be found by selecting “Setup” in the Main Menu and dropping down to Panel Manager, or through the Navigation window by clicking on the Function tab




Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The EA9-T8CL by Automation Direct is an 8-inch color TFT LCD touch screen HMI from the C-more EA9 series. With an 800 x 600 pixel SVGA resolution and analog resistive touch technology, it offers precise interaction. The LED backlight ensures a clear display. Featuring (3) serial ports, (1) Ethernet, (2) USB ports, (1) memory card slot, and (1) audio line out, this HMI provides robust connectivity and versatile functionality for industrial applications.



Technical Specifications



Brand Automation Direct
Series EA9
Part Number EA9-T8CL
Touch Screen Yes
Display Size 8in
Viewable Size 8.4in
Display Type Color TFT LCD
Widescreen No
Display Maximum Colors 64K colors
Display Resolution 800 x 600 pixel
Display Video Standard SVGA
Touch Panel Type Analog resistive
Brightness 310nits
Display Orientation Landscape/portrait
Backlight Type LED
CPU Clock Speed 800 MHz
External Power Requirement 12-24 VDC
Housing Rating NEMA 4/4X
Environmental Requirements Indoor use only
IP Rating IP65
Mounting Panel





Information About EA9-T8CL

The display viewing area is 6.71” x 5.03”. The weight of this unit is 2.93 lbs. The typical display brightness is 310 nits typical. The LCD panel dot pitch is 0.213 mm x 0.213 mm. The screen pixels are 800 x 600 (SVGA). The color scale is 65, 536 colors and the average backlight lifetime is 50,000 hours at 25°C. The project memory, which is 26 MB, supports up to 999 screens.

There is a clock that is built into the panel that is backed up for 30 days at 25°C. There are three serial ports on the display and 2 USB ports. There is also an SD card slot, but there is no HDMI video out port. The SD card slot supports a 2 GB or a 32 GB SD card. There is a mic in 3.5 mm mini-jack. The power consumption is 18.0 watts, 1.5 amps at 12 VDC, and 0.75 amps at 24 VDC. The internal fuse, which is non-replaceable, is 6.3 amps.

This Automation Direct touch screen can withstand no more than 1 minute of 1000 VAC between the FG and the power supply (lightning strike). EN55011 Class A is the emission standard. The enclosure is a NEMA 250 type 4/4X enclosure for indoor use only (IP65). This display works up to an altitude of 2000 meters (6562 feet). This unit is UL508 approved.

The EA9-T8CL EA9 C-more panel can be set to display a number of different languages. This can be changed in the Panel Manager. The Panel Manager can be found by selecting “Setup” in the Main Menu and dropping down to Panel Manager, or through the Navigation window by clicking on the Function tab




Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
