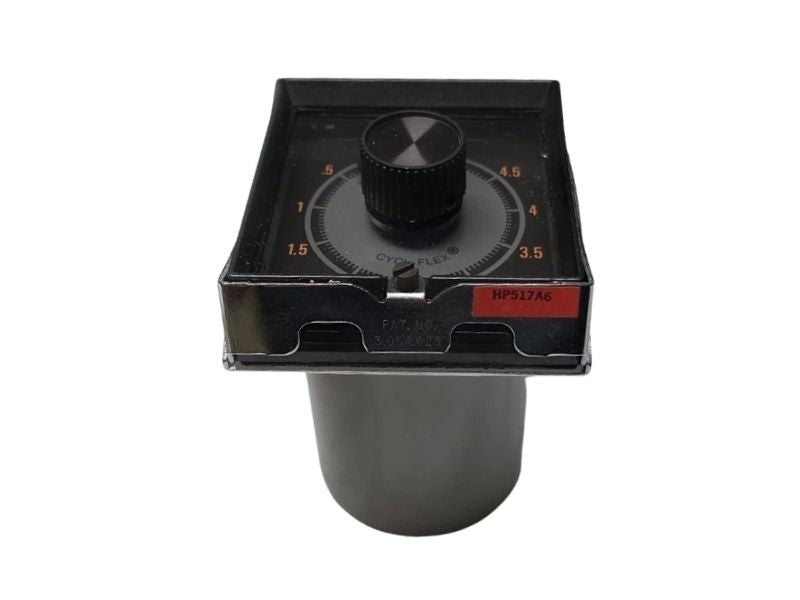

Eagle Signal HP517A6 HP5 CYCL-FLEX Reset Timer 0–5s 120VAC Panel Mount
- Regular price
- $1,264.00
- Sale price
- $1,264.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HP517A6
Description
The Eagle Signal HP517A6 is a synchronous motor-driven reset timer designed for industrial timing and control applications. It operates on a 120 VAC power supply and provides an adjustable timing range of up to 5 seconds with dial-based control. This timer enables precise timing functions in automation systems, control panels, and machine operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eagle Signal |
| Category | Controls & Indicators |
| Part Number | HP517A6 |
| Subcategory | Timer/Counter |
| Series | HP5 CYCL-FLEX |
| Timer Type | Reset Timer |
| Timing Range | 0–5 seconds |
| Supply Voltage | 120 VAC |
| Frequency | 60 Hz |
| Output Type | (2) SPDT Relay |
| Contact Rating | 10 A |

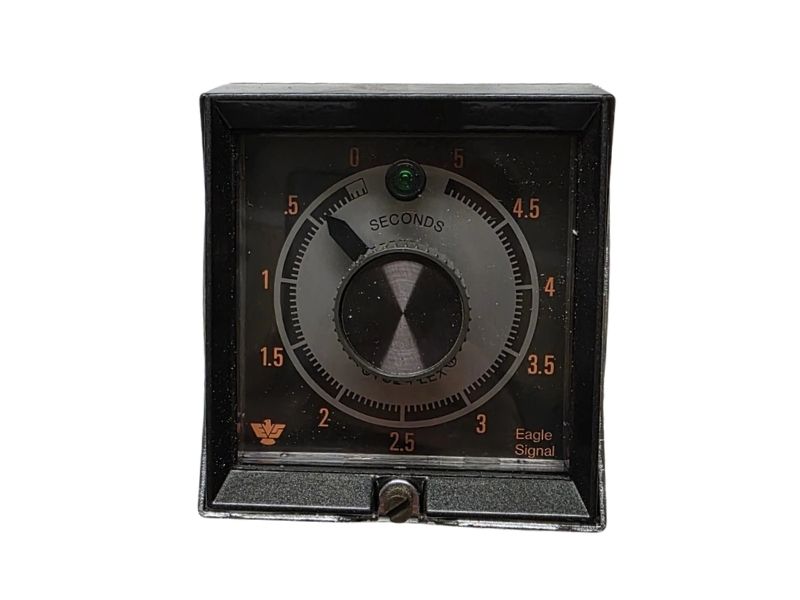

| Display Type | Analog dial with progress pointer |
| Mounting Type | Panel mount |

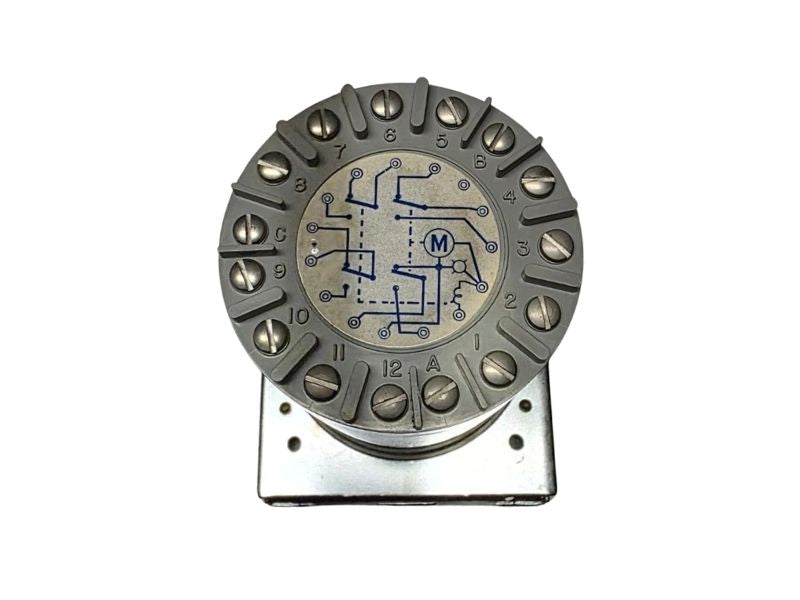

| Termination | Screw terminals |
| Operating Temperature | -18°C to 60°C |
| Approvals | UL, CSA, FM |
| Weight | 2.00 lbs |
Information About HP517A6

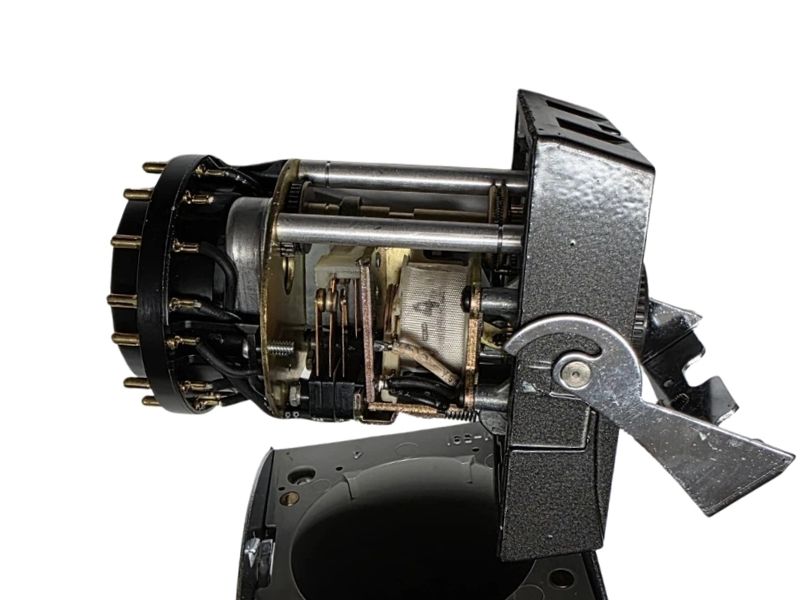

The HP517A6 is part of the Eagle Signal HP5 CYCL-FLEX series of industrial reset timers designed for reliable time-based control in electrical systems. It utilizes a synchronous motor-driven mechanism to deliver consistent and accurate timing performance. The unit features knob-adjustable timing settings and a visual progress pointer that displays the remaining time interval during operation. Built with a durable ABS molded housing and equipped with screw terminal connections, the timer is designed for panel-mounted installations in industrial control environments.
Key Features:
-
HP5 CYCL-FLEX Series Timer: Part of Eagle Signal’s industrial reset timer product line.
-
Adjustable 0–5 Second Timing Range: Provides short-cycle timing control for automation tasks.
-
Synchronous Motor Operation: Ensures accurate and stable timing performance.
-
Dual SPDT Relay Outputs: Provides switching capability for controlling external circuits.
-
Dial-Based Adjustment: Allows easy timing configuration using a front-panel control knob.
-
Visual Progress Pointer: Displays the remaining timing interval during operation.
-
Panel Mount Construction: Designed for through-panel installation in control cabinets.
-
Status Indicator Light: Indicates when the timer motor is energized.
The HP517A6 delivers the reliability and precision required for short-cycle timing control in industrial automation and electrical control systems.
