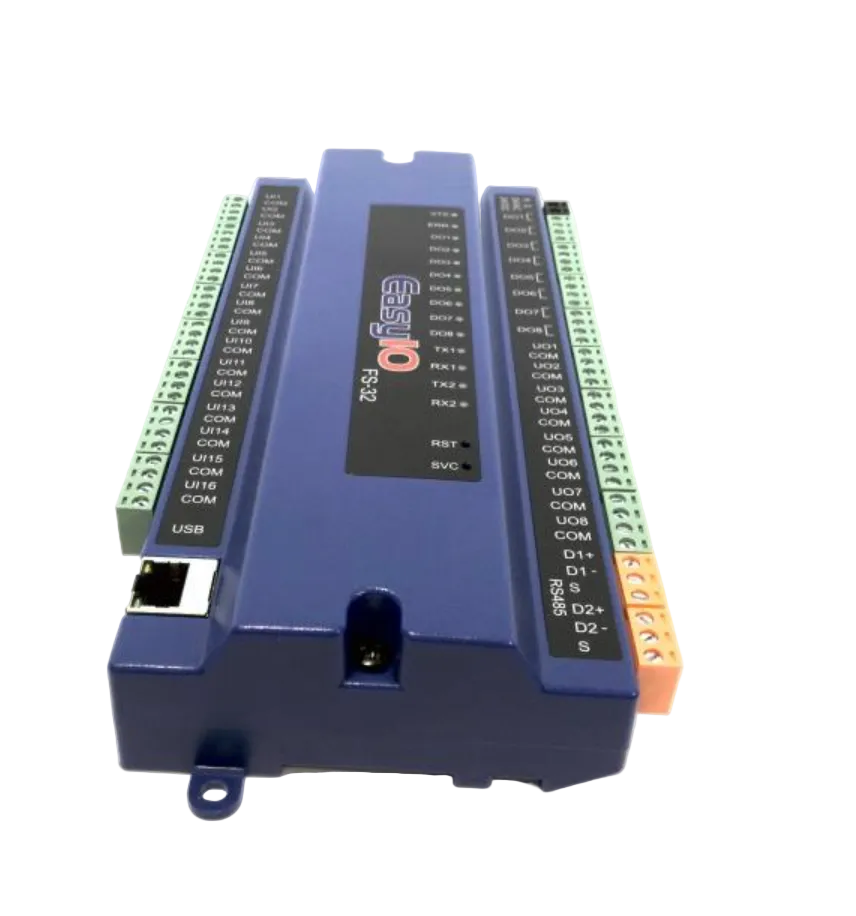

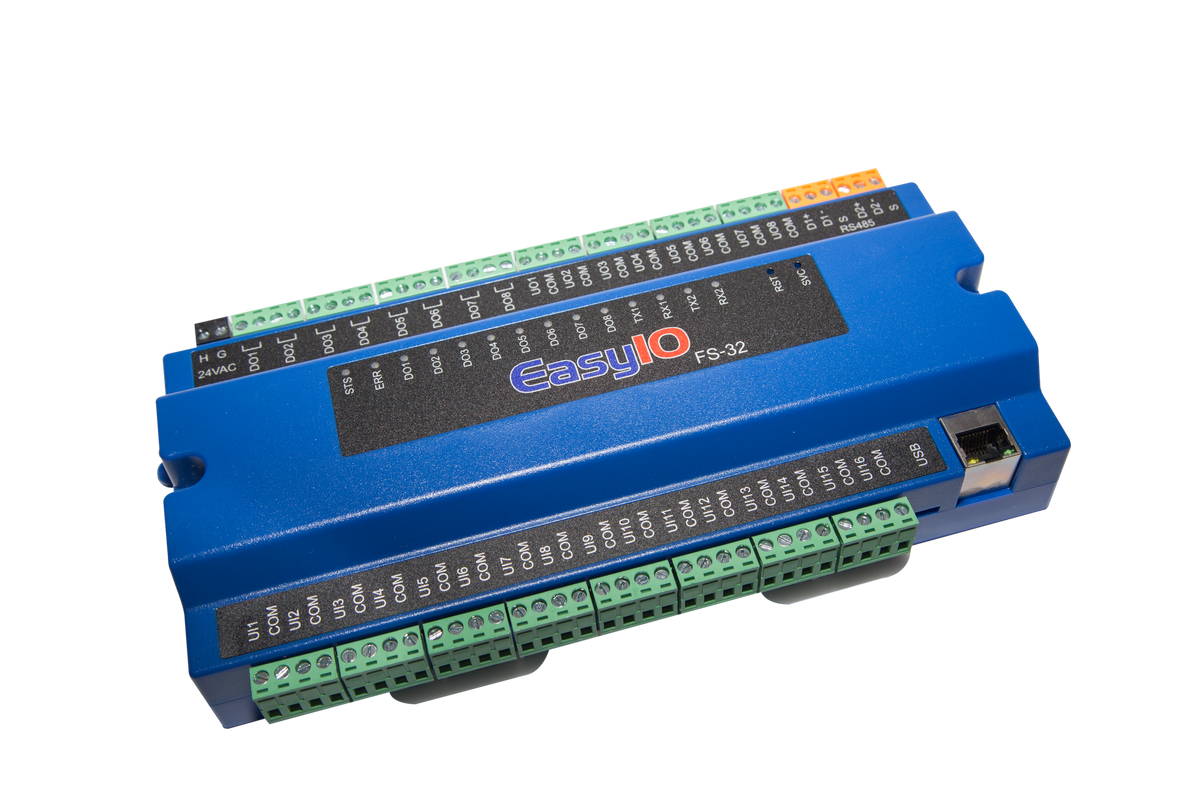

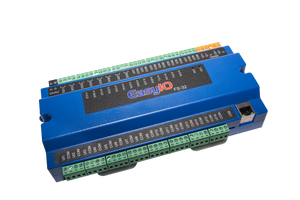

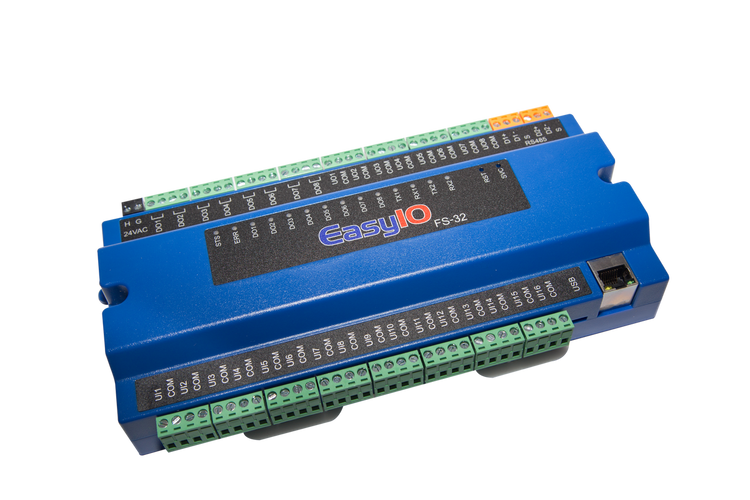

EasyIO EASYIO-FS-32 Programmable Building Automation Controller with 32 Input and Output Points
- Regular price
- $1,979.00
- Sale price
- $1,979.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EASYIO-FS-32
Description
The EasyIO EASYIO-FS-32 is a high-performance programmable IP controller designed for commercial HVAC and building automation applications. It features 32 onboard input/output points and supports multiple open communication protocols for seamless integration with modern building management systems. The controller combines advanced processing power, embedded web technologies, and secure networking for scalable automation projects.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | EasyIO |
| Category | PLCs/Machine Control |
| Part Number | EASYIO-FS-32 |
| Subcategory | PLC Module/Rack |
| Series | FS Series |
| Product Type | Programmable Controller |
| Input and Output Capacity | 32 Points |
| Universal Inputs | 16 |
| Digital Outputs | 8 Relay Outputs |
| Universal Outputs | 8 |
| Processor | 1.2 GHz Quad-Core ARM A7 |
| Memory | 8 GB Flash, 1 GB RAM |
| Communication Protocols | BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MQTT, SOX, TCom |
| Ethernet Ports | 1 × 10/100 Mbps |
| RS-485 Ports | 2 |
| Supply Voltage | 24 VAC/DC |
| Programming Software | EasyIO CPT Tools |
| Web Server | Built-in HTML5 |
| Weight | 0.54 kgs |
Information About EASYIO-FS-32
The EASYIO-FS-32 is a member of the EasyIO FS Series of programmable building automation controllers. It utilizes a 1.2 GHz quad-core processor and supports live programming through EasyIO CPT Tools while providing built-in HTML5 graphics and web-based visualization. The controller communicates using BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MQTT, TCom, SOX, and REST API, allowing interoperability with a wide range of automation devices. Its expandable architecture supports additional input/output modules, making it suitable for HVAC plants, air handling units, energy management, and other commercial automation systems.
Key Features:
- High-Performance Processor: Features a 1.2 GHz quad-core ARM processor for fast control execution.
- Thirty-Two Input and Output Points: Includes 16 universal inputs, 8 digital outputs, and 8 universal outputs.
- Multiple Communication Protocols: Supports BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MQTT, SOX, and TCom.
- Integrated HTML5 Interface: Built-in web server provides browser-based graphics and system monitoring.
- Secure Remote Connectivity: Includes integrated VPN server and client with modern network security support.
- Data Logging Capability: Eight gigabytes of onboard flash memory supports historical data storage and SQL database functions.
- Expandable Architecture: Supports additional EasyIO expansion modules for increased input and output capacity.
- Open Building Automation: REST API and peer-to-peer communication simplify third-party system integration.
The EASYIO-FS-32 delivers the reliability and precision required for commercial HVAC, energy management, and intelligent building automation systems.
