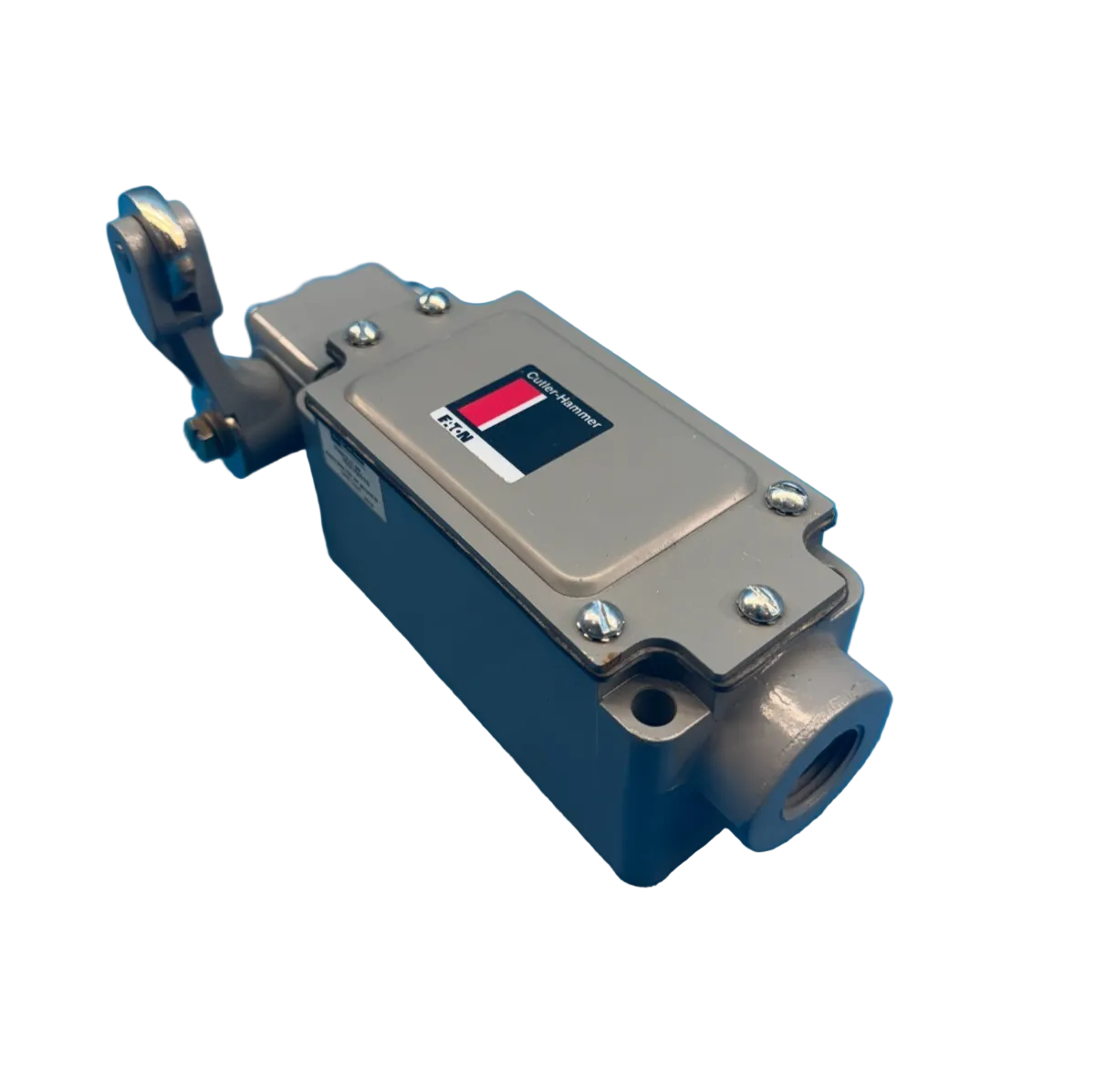

Eaton 10316H18 Type F NEMA 4 Side Rotary Limit Switch
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 10316H18
Description
The Eaton 10316H18 is a Type F special-purpose limit switch designed for industrial position sensing and machine-control applications. It features a side rotary roller-lever actuator, spring-return operation, a die-cast zinc enclosure, and a 1NO-1NC contact configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Industrial Automation |
| Part Number | 10316H18 |
| Subcategory | Limit Switches / Position Switches |
| Product Type | Type F Special-Purpose Limit Switch |
| Actuator | Side Rotary Roller Lever |
| Operation | Clockwise / Counterclockwise, Spring Return |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 60 A Make, 6 A Break at 120 VAC |
| DC Break Rating | 2.2 A at 120 VDC |
| Enclosure Material | Die-Cast Zinc |
| Enclosure Rating | NEMA 4 |
| Connection | Screw Terminals |
| Travel to Operate Contacts | 40° |
| Travel to Reset Contacts | 35° |
| Total Travel | 65° |
| Over-Travel | 25° |
| Dimensions | 2.69 × 3.66 × 6.88 in. |
| Weight | 3.57 lb |
Information About 10316H18
The 10316H18 belongs to Eaton’s 10316 series of Type F special-purpose limit switches. Its side rotary roller lever supports clockwise and counterclockwise operation with spring return. The switch uses screw terminals and a metal die-cast zinc enclosure rated NEMA 4. Its electrical contacts are rated for high AC make current, making the unit suitable for industrial switching and position-monitoring applications.
Key Features:
- Type F Design: Special-purpose limit switch for industrial control applications.
- Side Rotary Actuator: Roller lever provides mechanical position sensing.
- Spring Return: Supports clockwise and counterclockwise operation.
- 1NO-1NC Contacts: Provides one normally open and one normally closed circuit.
- Die-Cast Zinc Housing: Provides a rugged metal enclosure.
- NEMA 4 Rating: Designed for protection against environmental exposure.
- Screw Terminals: Provides conventional field wiring connections.
- High AC Make Rating: Rated up to 60 A AC for contact making applications.
The 10316H18 delivers dependable mechanical switching for industrial position-sensing and equipment-control applications.
