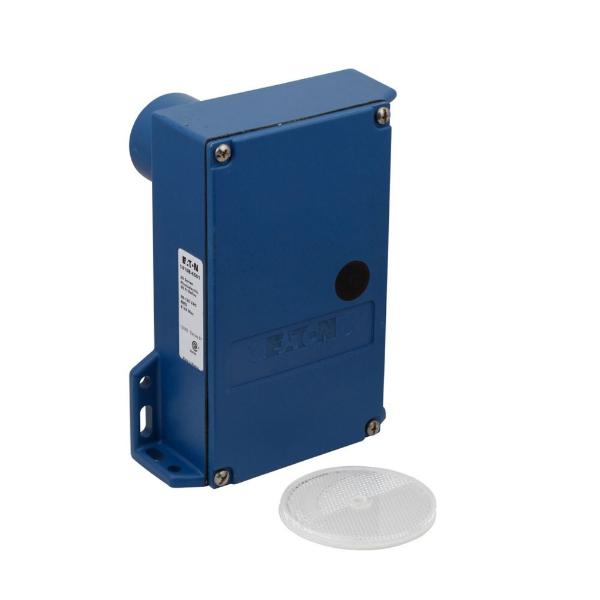

Eaton 1410B-6501 Retroreflective Photoelectric Sensor 35 ft Range
- Regular price
- $1,989.00
- Sale price
- $1,989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1410B-6501
Description
The Eaton 1410B-6501 is a heavy-duty retroreflective photoelectric sensor designed for industrial object detection. It features a 35 ft sensing range, 100–125 VAC supply, infrared sensing, a right-angle configuration, and a built-in beam status indicator for monitoring operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Sensors & Switches |
| Part Number | 1410B-6501 |
| Subcategory | Photoelectric |
| Series | 20 Series |
| Sensing Method | Retroreflective |
| Sensing Range | 35 ft |
| Sensing Beam | Infrared |
| Light Source | LED |
| Supply Voltage | 100–125 VAC |
| Frequency | 50/60 Hz |
| Response Time | 1–30 ms |
| Output Operation | Selectable Light/Dark |
| Status Indicator | Beam Status Indicator |
| Operating Temperature | -20 to +55 °C |
| Dimensions | 5.7 L × 3.79 W × 7.65 H in |
| Weight | 3.00 lb |
Information About 1410B-6501
The 1410B-6501 is part of Eaton's 20 Series photoelectric sensors and uses a self-contained retroreflective sensing method. Its infrared sensing beam provides a sensing range of up to 35 ft with a response time of 1–30 ms and selectable light/dark operate output. The sensor uses a terminal block with screw connections and operates from 100–125 VAC at 50/60 Hz. Its heavy-duty enclosure provides NEMA 1, 3, 4, 6, 12, and 13 protection for use in demanding industrial environments.
Key Features:
- Retroreflective Sensing: Uses a retroreflective detection method for reliable object sensing in industrial applications.
- 35 ft Sensing Range: Provides a sensing distance of up to 35 feet for medium-range detection tasks.
- Wide AC Supply: Operates from 100–125 VAC at 50/60 Hz for compatibility with industrial power systems.
- Infrared Beam: Uses an infrared sensing beam with an LED light source for photoelectric detection.
- Right-Angle Design: Features a right-angle configuration for flexible installation and alignment.
- Beam Status Indicator: Includes a visual indicator for monitoring beam and sensor operating status.
- Selectable Output Operation: Supports selectable light/dark operate functionality for different control requirements.
- Heavy-Duty Enclosure: Provides NEMA 1/3/4/6/12/13 enclosure protection for demanding industrial environments.
The 1410B-6501 delivers reliable retroreflective detection and durable operation required for industrial automation and object sensing applications.
