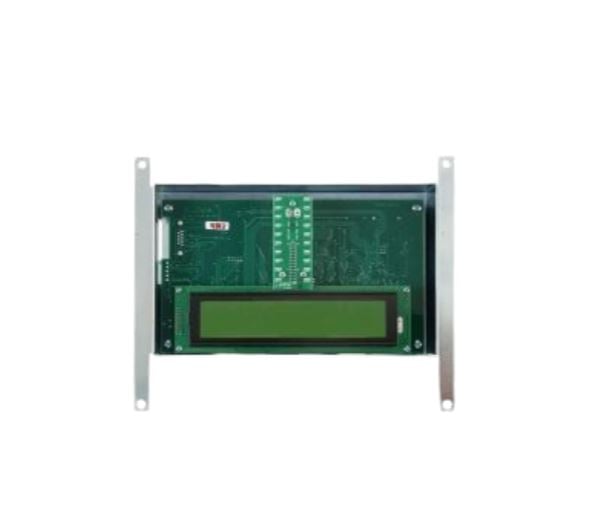

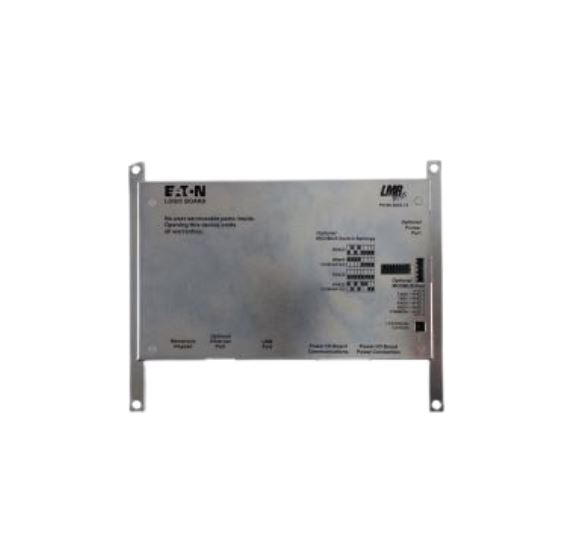

Eaton 99-5835-12 LMR Plus Microprocessor Logic Controller Board with LCD Display for Fire Pump Systems
- Regular price
- $4,099.00
- Sale price
- $4,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 99-5835-12
Description
The Eaton 99-5835-12 is a microprocessor-based logic controller board designed for the LMR Plus Series of electric fire pump controllers. Eaton part number 99-5835-12 provides the electronic control and operator interface functions required for monitoring fire pump operating conditions, displaying system information, and managing controller functions within compatible LMR Plus assemblies.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Eaton / Cutler-Hammer |
|
Category |
Fire Pump Control Systems |
|
Part Number |
99-5835-12 |
|
Subcategory |
Fire Pump Controller Logic Boards |
|
Series |
LMR Plus |
|
Product Type |
Microprocessor Assembly / Logic Controller Board |
|
Primary Application |
Electric Fire Pump Controller Monitoring and Control |
|
Compatible Controllers |
Eaton LMR Plus Fire Pump Controllers |
|
Controller Production Compatibility |
August 2010 and Later, Subject to Revision Verification |
|
Display Type |
Integrated LCD |
|
LCD Configuration |
4 Lines × 40 Characters |
|
Serial Interface |
1 Serial Port |
|
Ethernet Interface |
1 Ethernet Port |
|
USB Interface |
1 USB Port |
|
Modbus Interface |
Optional, Configuration Dependent |
|
Printer Interface |
Optional |
|
Additional Connections |
Communication Port and Power Connection |
|
Display Adjustment |
LCD Contrast Adjustment |
|
Associated Display Overlay |
99-5816-01 |
|
Associated I/O Board |
99-5835-01 |
|
Installation Type |
Internal Controller PCB Assembly |
|
Dimensions |
1.55 in H × 7.90 in W × 10.00 in D |
|
Included Accessories |
Interconnecting Cables Not Included |
|
Weight |
2.21 lb |
Information About 99-5835-12
The 99-5835-12 is an Eaton LMR Plus Series microprocessor controller board used in electric motor-driven fire pump control equipment. Its electronic architecture integrates control logic with an LCD operator interface for displaying pump status, operating parameters, alarm conditions, and diagnostic information. The board supports communication and service interfaces associated with the LMR Plus platform, including USB, Ethernet, optional Modbus connectivity, optional printer functionality, and LCD contrast adjustment. It is intended for OEM replacement and maintenance of compatible Eaton fire pump controllers, with the existing board revision, wiring connections, and front display overlay requiring verification before installation.
Key Features:
-
Microprocessor-Based Control: Provides electronic logic processing for compatible Eaton LMR Plus electric fire pump controllers.
-
LCD Operator Interface: Supports an integrated display for controller status, operating conditions, and system information.
-
Fire Pump Monitoring: Interfaces with compatible controller circuits to monitor pump operation and associated system conditions.
-
Alarm and Status Indication: Supports the presentation of operating states, alarms, and diagnostic information through the controller interface.
-
Optional Modbus Communication: Supports Modbus communication capability when the appropriate interface option is installed.
-
Ethernet Connectivity: Provides an Ethernet interface for supported communication and service functions.
-
USB Interface: Includes USB connectivity for applicable controller maintenance and configuration functions.
-
Optional Printer Port: Supports printer connectivity when the required hardware option is provided.
-
LCD Contrast Adjustment: Allows adjustment of display contrast for improved readability.
-
Front Overlay Compatibility: Associated with Eaton front display overlay part number 99-5816-01.
-
LMR Plus Integration: Designed for installation within compatible Eaton LMR Plus Series fire pump controller assemblies.
-
OEM Replacement Application: Suitable for servicing existing controller electronics when the original board number and hardware revision match.
The 99-5835-12 delivers the reliability and precision required for fire pump controller logic, operational monitoring, and operator interface functions in compatible Eaton LMR Plus systems.
